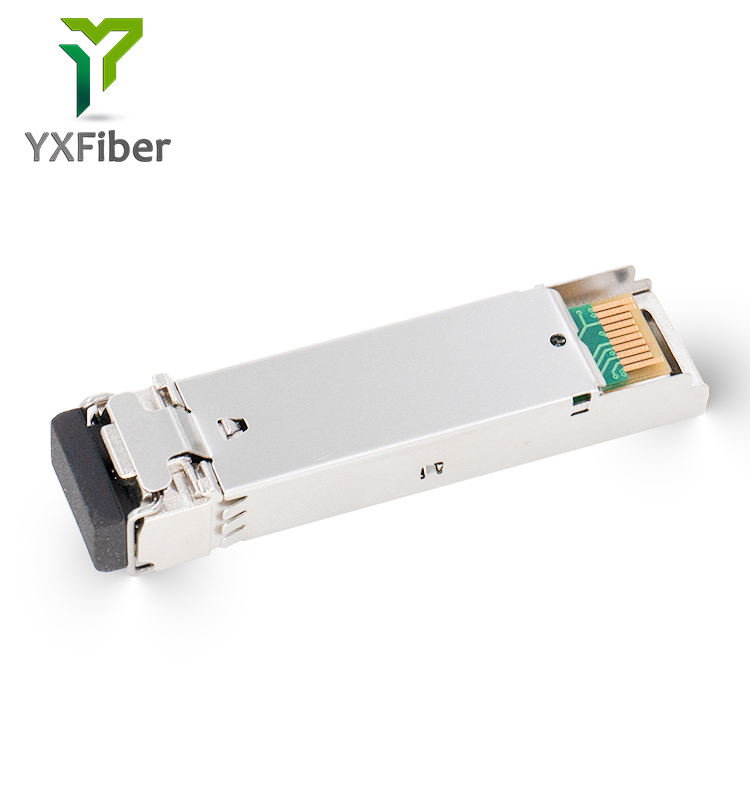

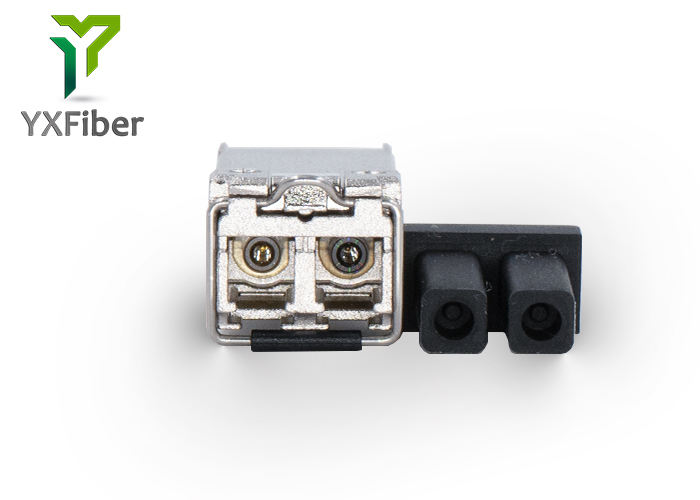

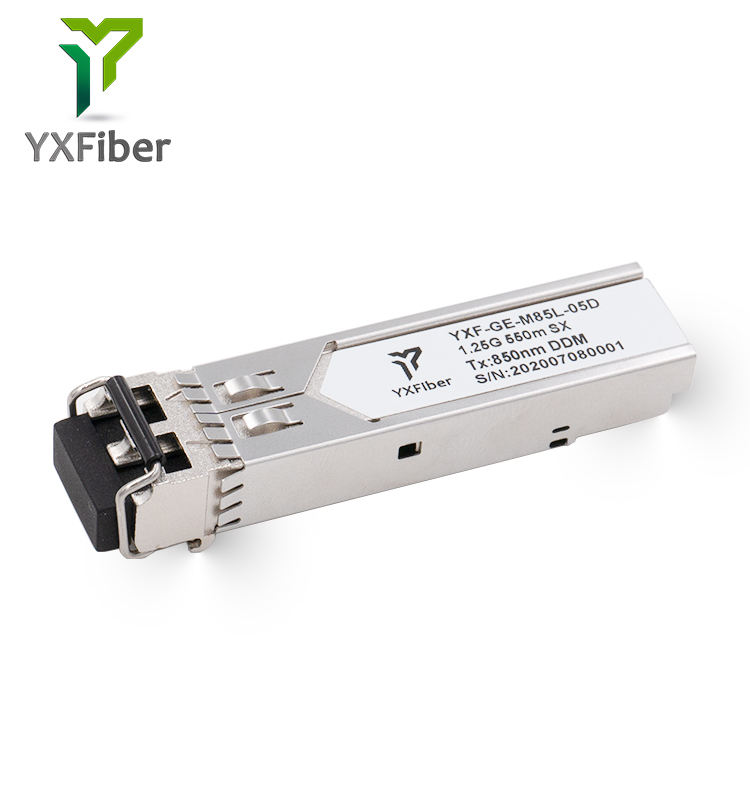

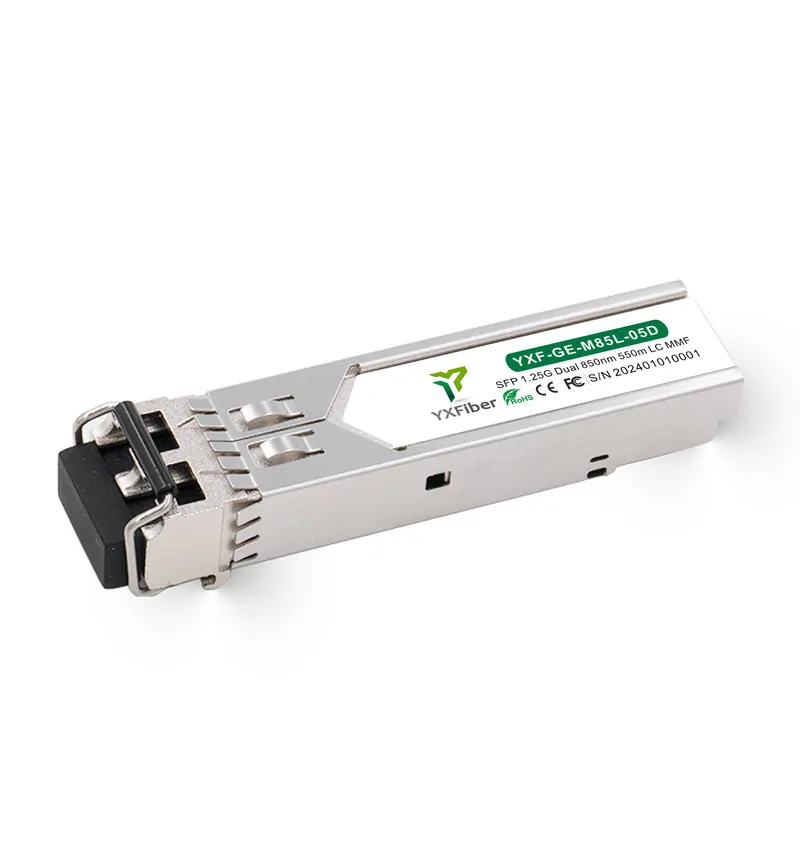

1.25G SFP SX 850nm 550m Dual LC Multimode Transceiver Compatible with Cisco Mikrotik HPE TP LINK HP Juniper

Features：
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Provide Professional Compatibility and Parameter Test Reports.
  • 30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.
Compatible Brand:
Cisco
Mikrotik
HPE
TP LINK
HP
D-Link
Juniper
Ubiquiti
Huawei
Dell
Aruba
Finisar
Avago
Nokia
Arista
Mellanox
Brocade
Netgear
Fortinet
Alcate
Lenovo
Ciena
Generic
H3C
Chelsio
Check Point
MRV
IBM
F5 Networks
Nortel
Intel
Ruckus
QNAP
Palo Alto Networks
Customized
Availability:
Quantity:
Inquire

  • YXF-GE-M85L-05D

  • YXFiber

  • SFP

  • 1.25G

  • SX

  • 550M

  • Duplex LC

Compatible 1000BASE-SX SFP Transceiver Module (MMF, 850nm, 550m, LC, DOM)

compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on all the current popular switches, routers, servers, network interface card (NICs) etc.

Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.


Part NumberYXF-GE-M85L-05DVendor NameYXFiber
Form FactorSFPMax.Data Rate1.25Gbps
Wavelength850nmMax.Cable Distance550m@50/125μm OM2 MMF
275m@62.5/125μm OM1 MMF
  220m@62.5/125μm FDDI MMF
ConnectorDuplex LCMediaMMF
Transmitter TypeVCSELReceiver TypePIN
DDM/DOMSupportedCommercial Temperature Range0 to 70℃(32 to 158F)
TX Power-9.5--3dBmReceiver Sensitivity<-17dBm
Typical Power Consumption≤0.8wReceiver Overload  -3dBm
Bit Error Ratio (BER)1E-12 Extinction Ratio>9dB
EMC(Electro Magnetic
Compatibility)		SupportedMTBF(SX)2,457,002 Hours
ProtocolsIEEE 802.3z,SFF-8472,SFP MSA(INF-80741)CompliantWarranty3 Years


Product Highlights

Each product is thoroughly checked for peformance and compatibility before delivery to the customer.

Customer centricity and 100% customer satisfaction rate.

All oplical transceivers are tested through dozens of processes before leaving the factory.


07171715 _00



Certication

Our company and products are certified to meet industry standards, ensuring top quality and reliability.Trust our expertise for secure, high-performance solutions that you can depend on.


Certificate






Features

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.Partner with us for the finest fiber optic technology, tailored for diverse market need

our advantage


Comprehensive Testing Increases Reliability

    Six professional transceiver performance tests. Optical Spectrum, Eye Pattern, Bit Error Rate and Temperature Test for Assured Quality.

quality test

包装

Question And Anwsers


Q:What is your main products?

A:Our main products are optical modules, please send us an inquiry and we will send you a complete catalogue.


Q: Do you provide samples? Is it free or extra?

A: Yes, but we need to charge for samples, we will return sample fee in the later order.


Q:Can I get a lower price? Any discount?

A: Yes, price could be negotiated based on the quantity.Please leave your contact information, we will send you a discount notice later.


Q:What is your MOQ and the lead time?

A: we don’t have MOQ, 1 samples is available.

Normally lead time is 1-3 working days for samples and 3-5 days for mass.


Q:What kinds of customized choices are offered in YXFiber?

A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.


Q:Why should I trust YXFiber compatible transceivers?

A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.


Q: How about shipping?

A: For sample, about 5-7 days by fast delivery ;

For Mass order, bout 15-25 days by sea, air, train shipping.


Q:What is your after-sales service? How about the warranty?

A:All our customers can enjoy the after-sales service for 3 years warranty and lifetime technical support.




download YXF-GE-M85L-05D.pdf
