EDR-Q28-LR4
YXFiber
QSFP28
EDR
LR4
10KM
Duplex LC

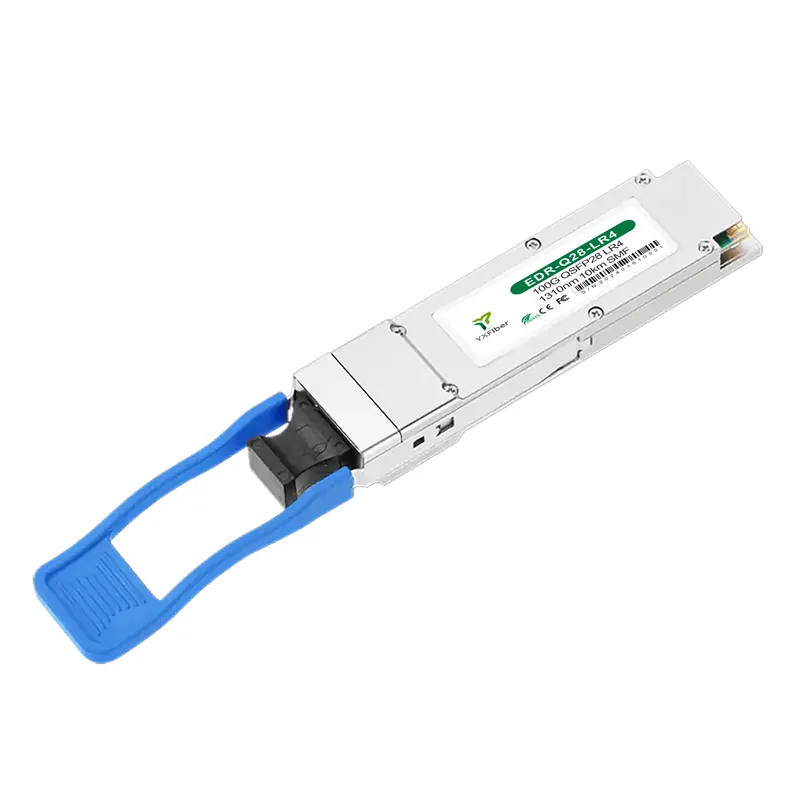

MMA1L10-CR Compatible 100GBASE-LR4 InfiniBand HPC Optica Transceiver Module (QSFP28, 1310nm, 10km, LC-LC, DDM for SMF)
YXFiber100Gb/s optical transceiver is designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. It is also qualified for use in Mellanox InfiniBand EDR end-to-end systems. The transceiver is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA.YXFiber offers Mellanox MMA1L10-CR Compatible QSFP-100G-LR4H transceiver for SB7800/SB7890, MCX556A-ECAT/MCX653106A-HDAT. It converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.
MMA1L10-CR Compatible 100GBASE-LR4 InfiniBand HPC Optica Transceiver Module (QSFP28, 1310nm, 10km, LC-LC, DDM for SMF)
YXFiber100Gb/s optical transceiver is designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. It is also qualified for use in Mellanox InfiniBand EDR end-to-end systems. The transceiver is compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA.YXFiber offers Mellanox MMA1L10-CR Compatible QSFP-100G-LR4H transceiver for SB7800/SB7890, MCX556A-ECAT/MCX653106A-HDAT. It converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.
