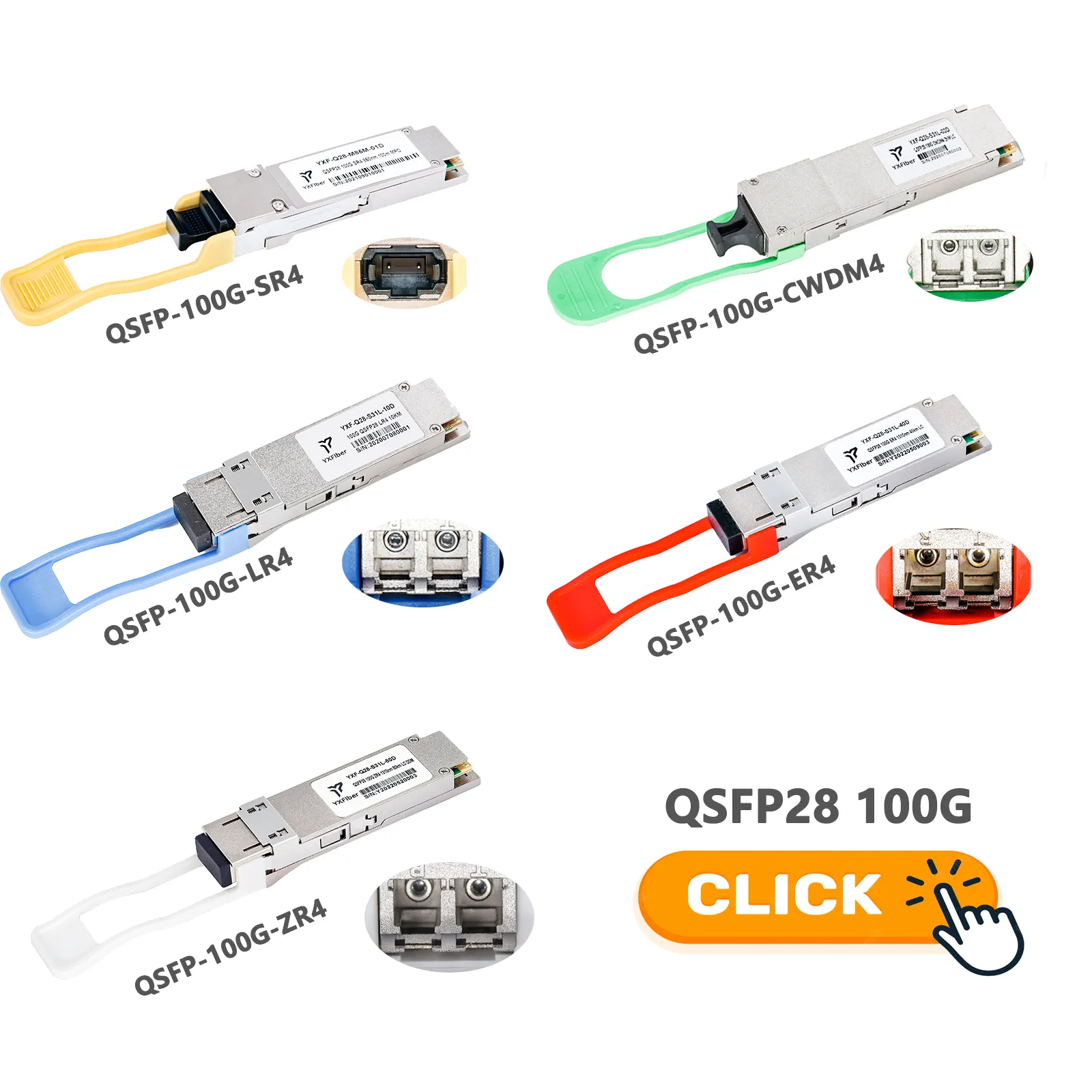

100G QSFP28 Module Compatible with Cisco Mikrotik HPE TP LINK HP Juniper

100G QSFP28 Module LC MPO Single-Mode Transceiver 100GBASE SR4 LR4 ER4 ZR4 Module with DDM
Model:
Compatible Brand:
Interface:
Availability:
Quantity:
  • 100G QSFP28 Module

  • YXFiber

  • 100G QSFP28 Module

  • SFP

  • 155M

  • BX20

  • 100M

  • Duplex LC

  • Cisco

100G QSFP28 (100 Gigabit Quad Small Form-Factor Pluggable 28) is a series of high-speed optical modules designed for data communication and network applications. The full name of QSFP28 is Quad Small Form-factor Pluggable Plus 28, which means four-channel small pluggable. The rate of each channel is up to 28Gpbs. It is widely used in data centers, telecommunication networks and other high-bandwidth environments to support the rapid exchange of large amounts of data over short and long distances.



Part No.Data RateWavelenthDistanceSourceOutput Power (dBm)Sensitivity (dBm)ConnectorVoltage

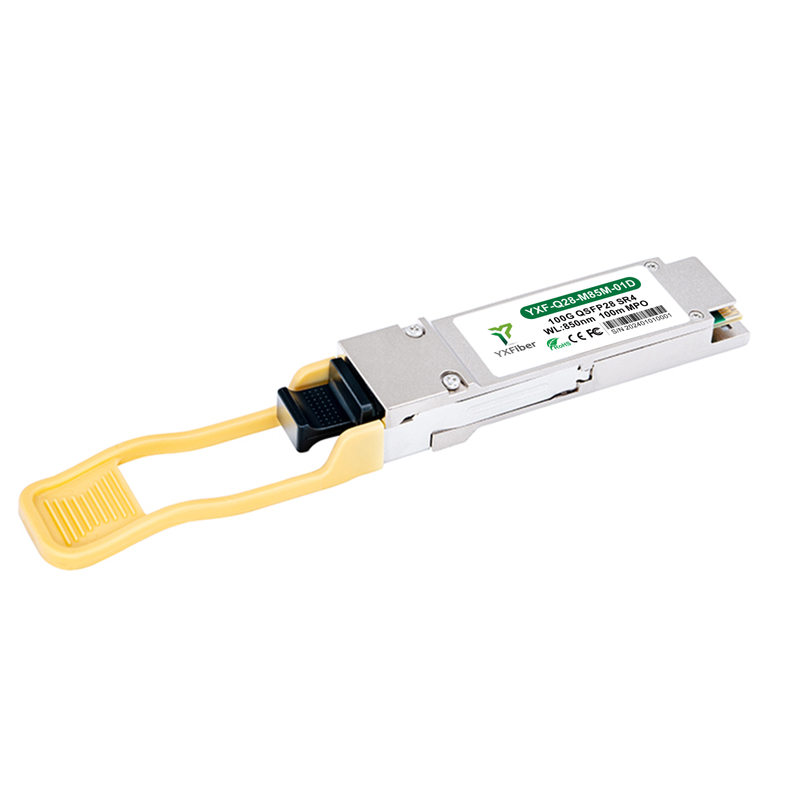

YXF-Q28-M85M-01D100G850nm100mVCSEL/PIN2.4~-8.4dBm<-10.3dBmMPO3.3V
YXF-Q28-M85L-01D100GCH17 ~CH61100mVCSEL/PIN4~-6dBm<-9.5dBmLC3.3V
YXF-Q28-S31L-2D100G1310nm2kmDFB / PIIN2~-9.4dBm<-12dBmMPO3.3V
YXF-Q28-S31M-10D100G1310nm10kmDFB / PIIN2.5~-6.5dBm<-12dBmMPO3.3V
YXF-Q28-C31L-2D100G1271/1291/1311/13312kmCWDM DFB / PIN2.5~-6.5dBm<-11.5dBmLC3.3V
YXF-Q28-C31L-10D100G1271/1291/1311/133110kmCWDM DFB / PIN2.5~-6.5dBm<-11.5dBmLC3.3V
YXF-Q28-S31L-10D100G1295.56/1300.05/1304.58/1309.1410kmLWDM DFB / PIIN4.5~-4.3dBm<-8.6dBmLC3.3V
YXF-Q28-S31L-20D100G1295.56/1300.05/1304.58/1309.1420kmLWDM DFB / PIIN4.5~-1dBm<-10.5dBmLC3.3V
YXF-Q28-S31L-30D100G1295.56/1300.05/1304.58/1309.1430kmLWDM EML / APD6.5~-2.5dBm<-18dBmLC3.3V
YXF-Q28-S31L-40D100G1295.56/1300.05/1304.58/1309.1440kmLWDM EML / APD6.5~-2.5dBm<-18dBmLC3.3V
YXF-Q28-S31L-80D100G1295.56/1300.05/1304.58/1309.1480kmLWDM EML / SOA PIN6.5~1dBm<-28dBmLC3.3V
YXF-Q28-S31L-100D100G1295.56/1300.05/1304.58/1309.14100kmLWDM EML / SOA PIN7.5~4dBm<-26dBm
<-32dBm(FEC)
LC3.3V



Product Highlights

Each product is thoroughly checked for peformance and compatibility before delivery to the customer.

Customer centricity and 100% customer satisfaction rate.

All oplical transceivers are tested through dozens of processes before leaving the factory.


07171715 _00



Certication

Our company and products are certified to meet industry standards, ensuring top quality and reliability.Trust our expertise for secure, high-performance solutions that you can depend on.


Certificate






Features

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.Partner with us for the finest fiber optic technology, tailored for diverse market need

our advantage


Comprehensive Testing Increases Reliability

    Six professional transceiver performance tests. Optical Spectrum, Eye Pattern, Bit Error Rate and Temperature Test for Assured Quality.

quality test


Question And Anwsers


Q:What is your main products?

A:Our main products are optical modules, please send us an inquiry and we will send you a complete catalogue.


Q: Do you provide samples? Is it free or extra?

A: Yes, but we need to charge for samples, we will return sample fee in the later order.


Q:Can I get a lower price? Any discount?

A: Yes, price could be negotiated based on the quantity.Please leave your contact information, we will send you a discount notice later.


Q:What is your MOQ and the lead time?

A: we don’t have MOQ, 1 samples is available.

Normally lead time is 1-3 working days for samples and 3-5 days for mass.


Q:What kinds of customized choices are offered in YXFiber?

A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.


Q:Why should I trust YXFiber compatible transceivers?

A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.


Q: How about shipping?

A: For sample, about 5-7 days by fast delivery ;

For Mass order, bout 15-25 days by sea, air, train shipping.


Q:What is your after-sales service? How about the warranty?

A:All our customers can enjoy the after-sales service for 3 years warranty and lifetime technical support.
