YXF-PP-B23L-10D
YXFiber
SFP+
10G
LR
10KM
Simplex LC

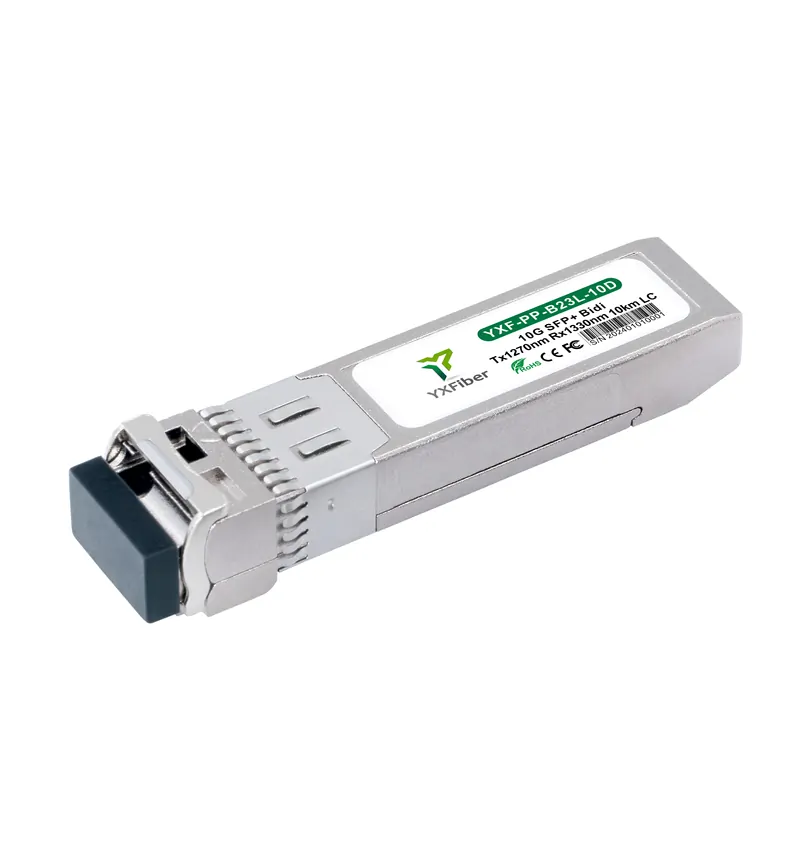

Compatible SFP+ 10GBASE-BX10-U Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 10km, LC, DOM)

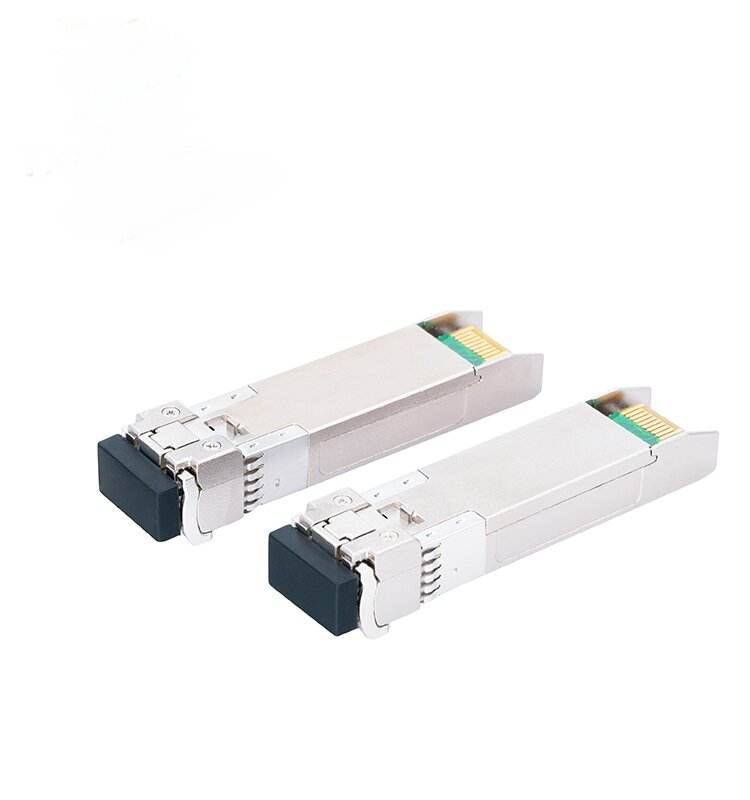

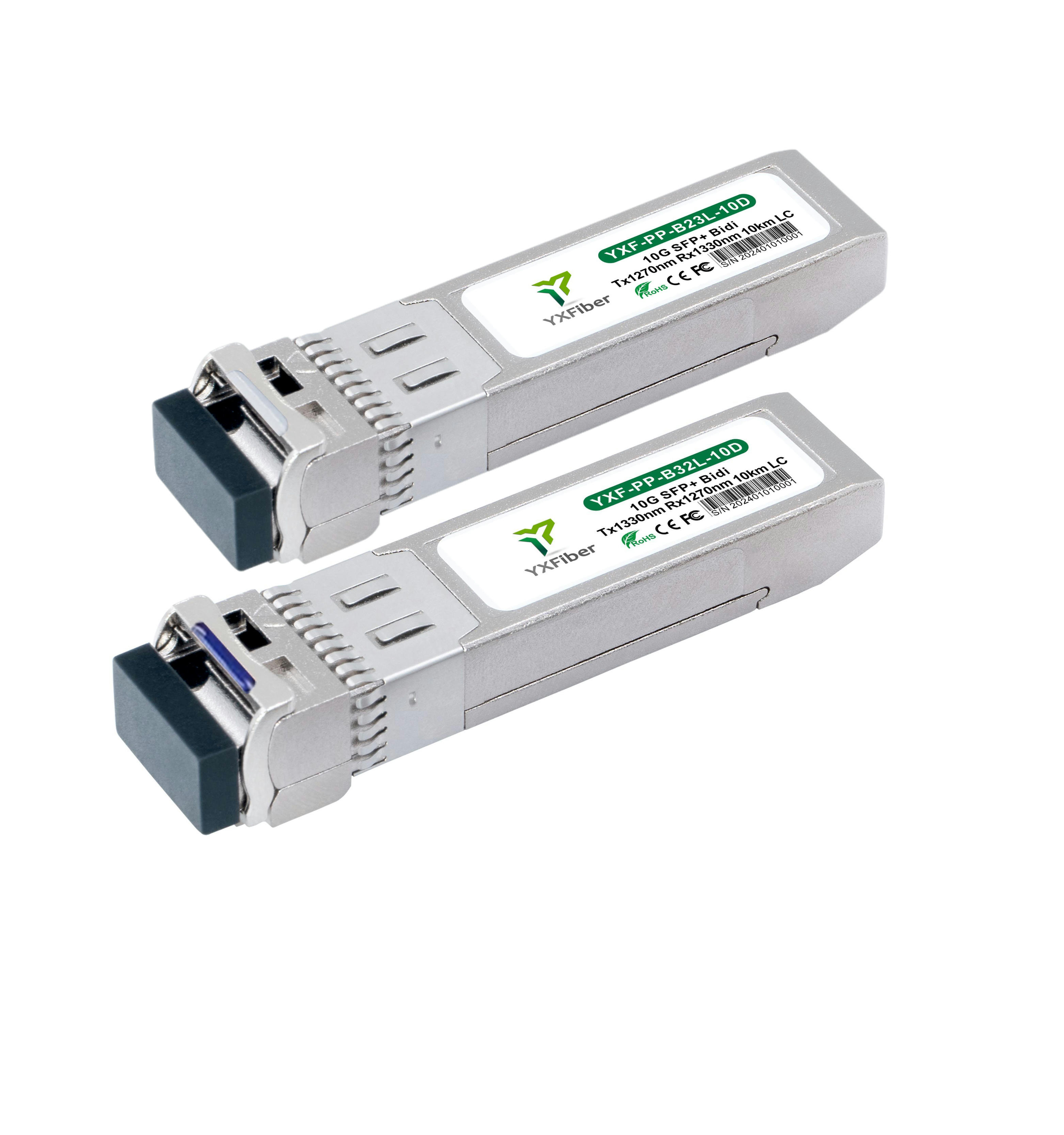

compatible SFP+ transceiver supports up to 10km link lengths over OS2 SMF via an LC simplex connector. This 10G BiDi SFP+ transceiver, featured with data transmission over a single strand of fiber, the one transceiver transmits a 1270-nm channel and receives a 1330-nm signal, whereas the other BiDi SFP+ optics transmits at a 1330-nm wavelength and receives a 1270-nm signal.
Digital diagnostics can also be used through the I2C interface designated by SFF-8472 to allow access to real-time operating parameters. Each BIDI SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface cards (NICs) etc. Featuring low power consumption and high speed, this 10G BIDI SFP+ transceiver is ideal for enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
| Part Number | YXF-PP-B23L-10D | Vendor Name | YXFiber |
| Form Factor | SFP+ | Max Data Rate | 11.3168Gbps |
| Wavelength | 1270nm-TX/1330nm-RX | Max Cable Distance | 10km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | 8.2-0.5dBm | Receiver Sensitivity | <-14.4dBm |
| Power budget | 6.2dB | Receiver Overload | 0.5dBm |
| Typical Power Consumption | ≤1W | Extinction Ratio | >3.5dB |
| Commercial Temperature Range | 0 to 70℃(32 to 158°F) | Protocols | SFP+MSA Compliant,CPRI,eCPRI |
