HDR-Q56-FR4
YXFiber
QSFP56
HDR
FR4
2KM
Duplex LC

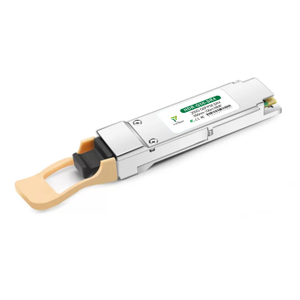

InfiniBand MMS1W50-HM Compatible 200G QSFP56 FR4 1310nm 2km DOM Duplex LC/UPC SMF HDR Optical Transceiver Module
Q56-200G-FR4H transceiver supports link lengths of up to 2km over Single Mode Fiber with Duplex-LC UPC connector in a QSFP56 form factor, using a nominal wavelength of 1310 nm.The module can convert 4-channel 53.125 Gbps electrical data to 4-channel optical signals, and multiplex them into a single channel for 212.5 Gbps optical transmission.This transceiver complies with the CMIS4.0, QSFP MSA, IEEE 802.3bs and operates according to the InfiniBand IBTA specification, and it is designed for use in 200Gb/s HDR InfiniBand applications.
InfiniBand MMS1W50-HM Compatible 200G QSFP56 FR4 1310nm 2km DOM Duplex LC/UPC SMF HDR Optical Transceiver Module
Q56-200G-FR4H transceiver supports link lengths of up to 2km over Single Mode Fiber with Duplex-LC UPC connector in a QSFP56 form factor, using a nominal wavelength of 1310 nm.The module can convert 4-channel 53.125 Gbps electrical data to 4-channel optical signals, and multiplex them into a single channel for 212.5 Gbps optical transmission.This transceiver complies with the CMIS4.0, QSFP MSA, IEEE 802.3bs and operates according to the InfiniBand IBTA specification, and it is designed for use in 200Gb/s HDR InfiniBand applications.
