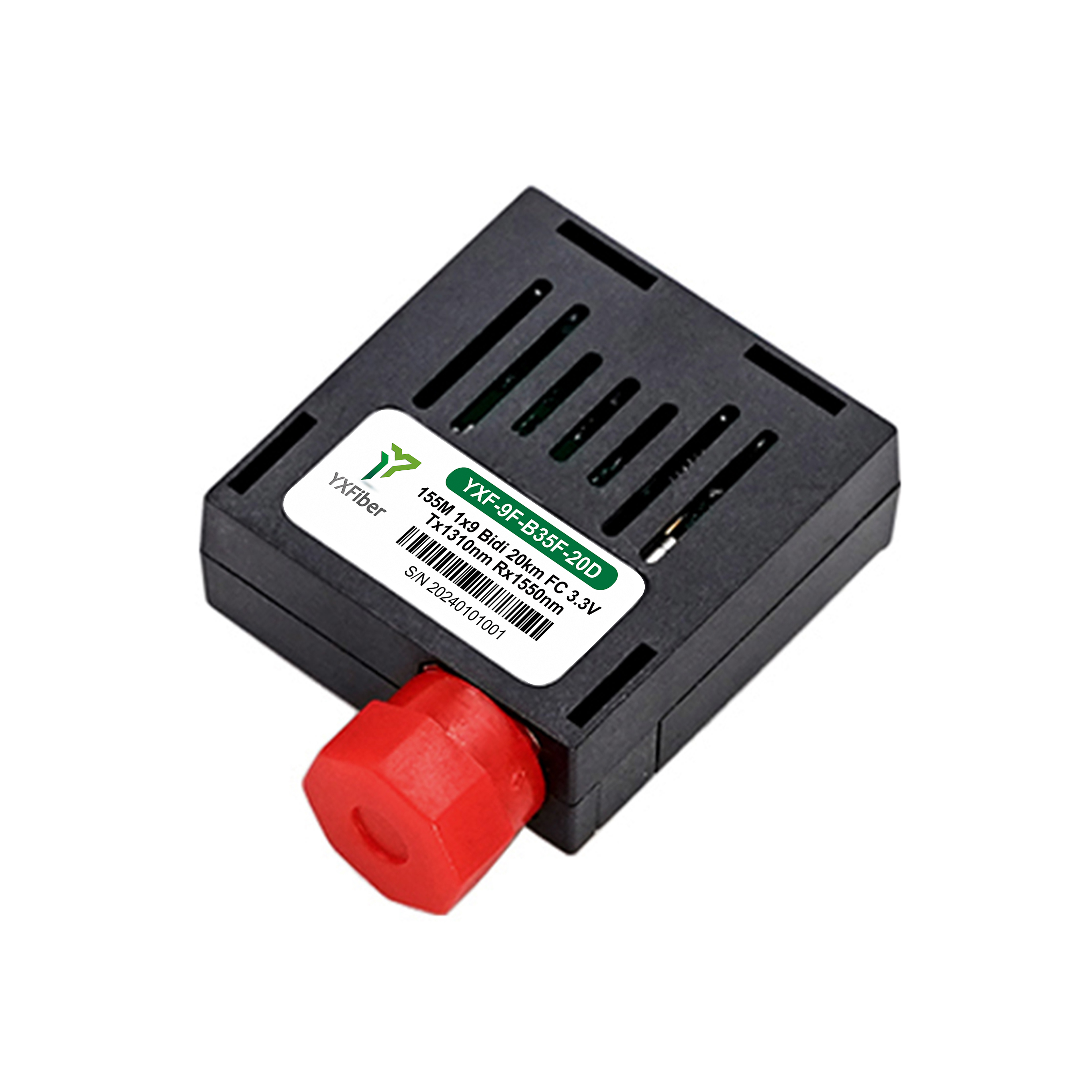

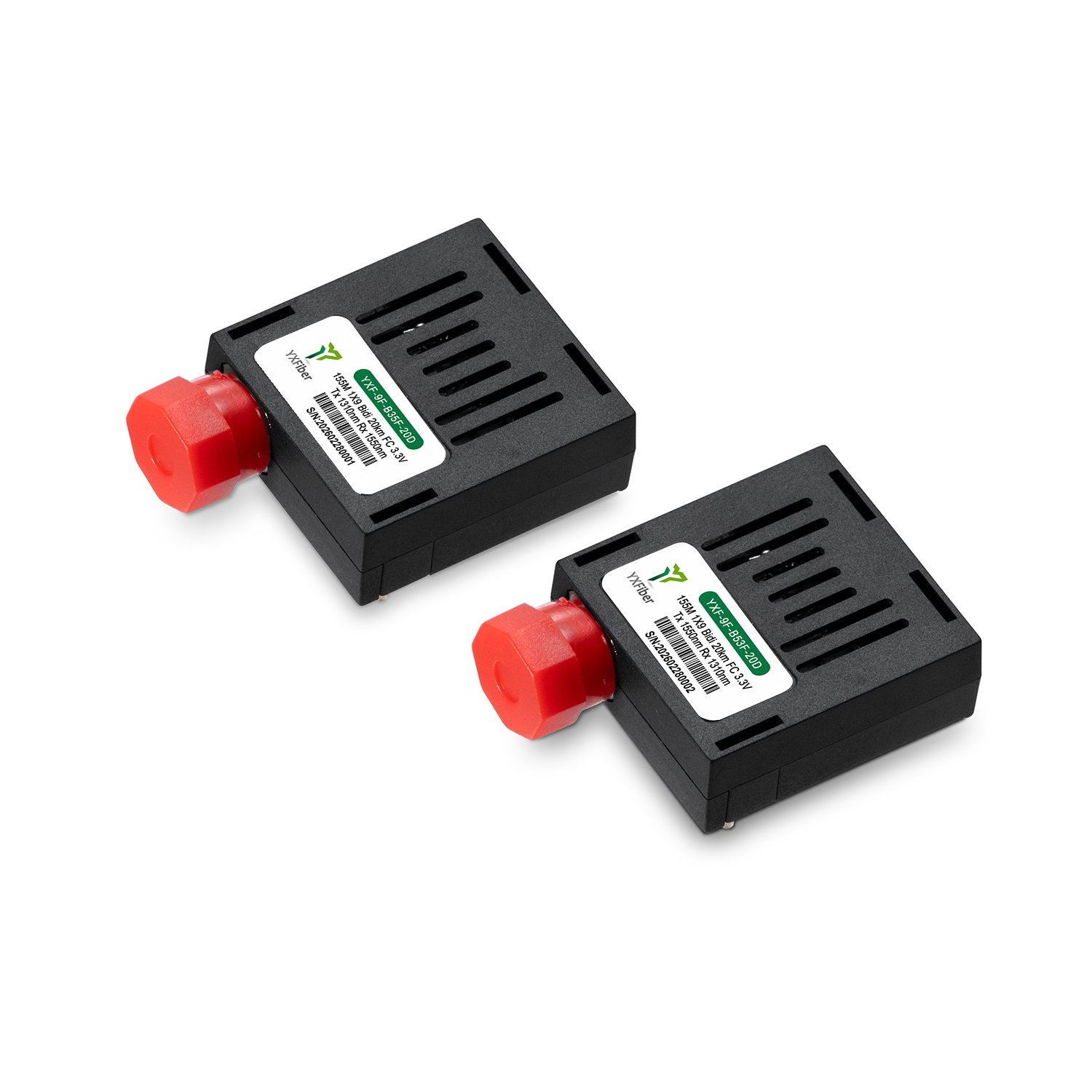

BIDI FC
YXFiber
BIDI FC
conforms to the 1x9 multi-source encapsulation protocol;
1310nm FP or 1550nm FP (DFB) laser;
FC optical ports (middle or side openings) or SC or ST optical ports;
Transmission distance up to 80KM (9/125μm SMF), longer distance optional;
single +3.3V or single +5V supply;
Support wave soldering and cleaning (the optical interface has a plug);
implements the WDM function internally.
can provide industrial grade operating temperature.
is RoHS compliant.
| Part No. | Data Rate | Wavelenth | Distance | Output Power (dBm) | Sensitivity (dBm) | Connector | Temp(℃ ) |
| 1X9 BIDI | 155M | TX1310/RX1550 | 20KM | -12--3 | ≤-34 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 155M | TX1550/RX1310 | 20KM | -12--3 | ≤-34 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 155M | TX1310/RX1550 | 40KM | -7-0 | ≤-35 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 155M | TX1550/RX1310 | 40KM | -7-0 | ≤-35 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 155M | TX1490/RX1550 | 80KM | -2-1 | ≤-37 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 155M | TX1550/RX1490 | 80KM | -2-1 | ≤-37 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 1.25G | TX1310/RX1550 | 20KM | -9--3 | ≤-24 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 1.25G | TX1550/RX1310 | 20KM | -9--3 | ≤-24 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 1.25G | TX1310/RX1550 | 40KM | -5-0 | ≤-25 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 1.25G | TX1550/RX1310 | 40KM | -5-0 | ≤-25 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 1.25G | TX1490/RX1550 | 80KM | -2-1 | ≤-27 | SC/FC/ST | 0~70 |
| 1X9 BIDI | 1.25G | TX1550/RX1490 | 80KM | -2-1 | ≤-27 | SC/FC/ST | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 20KM | -12--2 | ≤-34 | SC/FC/ST | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 40KM | -7-0 | ≤-35 | SC/FC/ST | 0~70 |
| 1X9 DUAL | 1.25G | 1550nm | 80KM | -2-1 | ≤-37 | SC/FC/ST | 0~70 |
| 1X9 DUAL | 1.25G | 850nm | 550M | -9--3 | ≤-18 | SC/FC/ST | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 20KM | -9--3 | ≤-24 | SC/FC/ST | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 40KM | -5-0 | ≤-25 | SC/FC/ST | 0~70 |
| 1X9 DUAL | 1.25G | 1550nm | 80KM | -2-1 | ≤-27 | SC/FC/ST | 0~70 |
| 1X9 DUAL TTL | 0-2M | 1310nm | 20KM | -4--10 | ≤-16 | SC/FC/ST | 0~70 |
