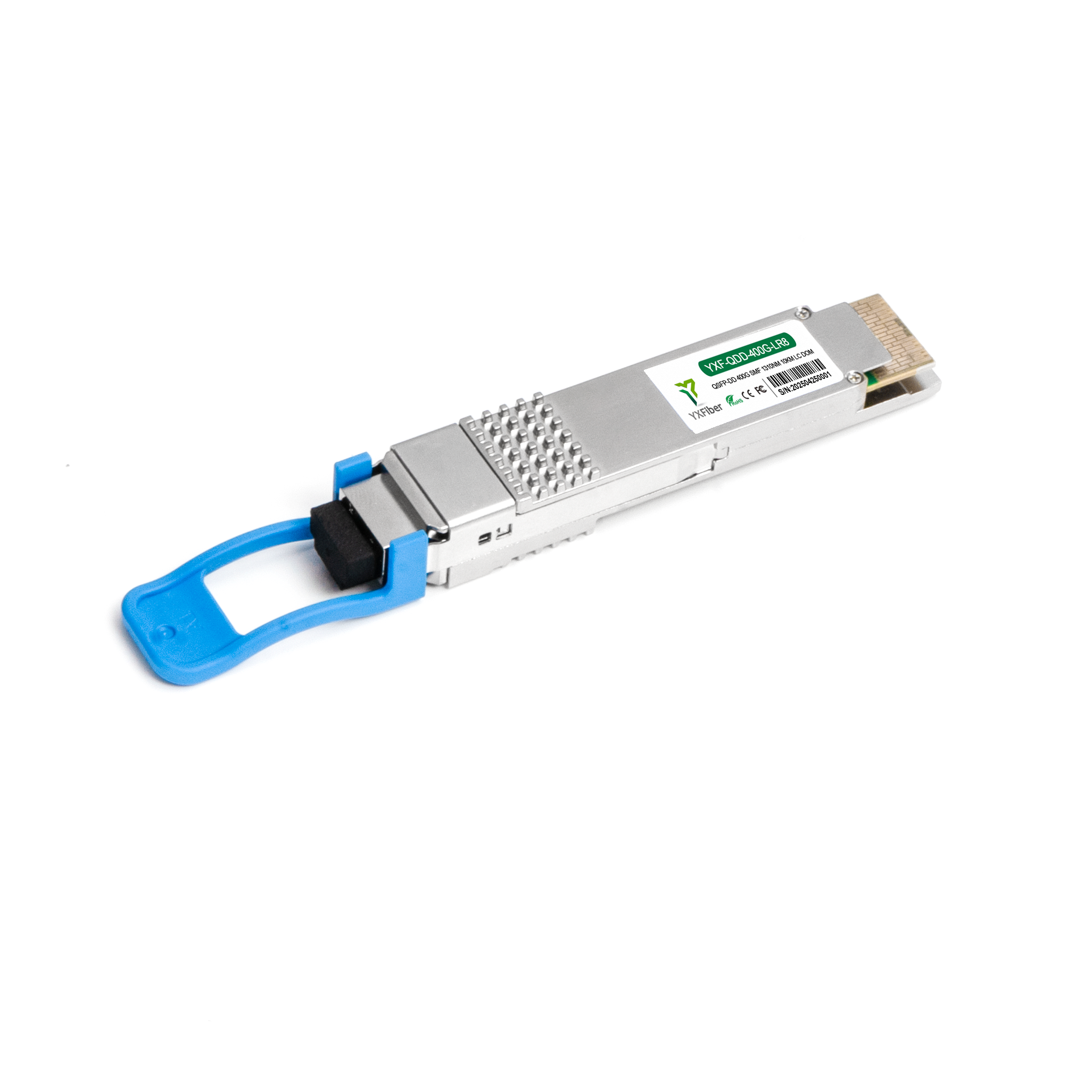

400GBASE-LR8 QSFP-DD 400G 1310nm 10km DOM LC SMF Transceiver Module

Features:
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Provide Professional Compatibility and Parameter Test Reports.
  • 30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.
Compatible Brand:
Availability:
Quantity:
  • YXF-QDD-400G-LR8

  • YXFiber

  • QSFP-DD

  • 400G

  • LR8

  • 10KM

  • Duplex LC

400GBASE-LR8 QSFP-DD 400G 1310nm 10km DOM LC SMF Transceiver Module


YXFiber's YXF-QDD-400G-LR8 module are designed for 10 km optical communication applications, and it is compliant to IEEE 802.3cn for 400GE Ethernet. This module contains 8-lane optical transmitter, 8-lane optical receiver and module management block including 2 wire serial interfaces. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.



Part NumberYXF-QDD-400G-LR8Vendor NameYXFiber
Form FactorQSFP-DDMax Data Rate425Gbps
Wavelength1310nmMax Cable Distance10km
ConnectorDuplex LC(UPC)MediaSMF
Transmitter TypeLWDM EMLReceiver TypePIN
TX Power-2.8-5.3dBmRX Power-9.1-5.3dBm
Power budget6.3dBModulation8x50G PAM4
Power Consumption≤10WExtinction Ratio3.5dB
DDM/DOMSupportedCommercial Temperature Range0 to 70℃(32 to 158°F)
DSPTX and RXInbuilt FECNo
Core SizeG.652/9umPackaging TechnologyBOX
ProtocolsIEEE  802.3bs,QSFP-DD  MSA,CMIS  4.1Warranty3 years


Product Highlights

Each product is thoroughly checked for peformance and compatibility before delivery to the customer.

Customer centricity and 100% customer satisfaction rate.

All oplical transceivers are tested through dozens of processes before leaving the factory.


07171715 _00



Certication

Our company and products are certified to meet industry standards, ensuring top quality and reliability.Trust our expertise for secure, high-performance solutions that you can depend on.


Certificate






Features

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.Partner with us for the finest fiber optic technology, tailored for diverse market need

our advantage


Comprehensive Testing Increases Reliability

    Six professional transceiver performance tests. Optical Spectrum, Eye Pattern, Bit Error Rate and Temperature Test for Assured Quality.

quality test

包装

Question And Anwsers


Q:What is your main products?

A:Our main products are optical modules, please send us an inquiry and we will send you a complete catalogue.


Q: Do you provide samples? Is it free or extra?

A: Yes, but we need to charge for samples, we will return sample fee in the later order.


Q:Can I get a lower price? Any discount?

A: Yes, price could be negotiated based on the quantity.Please leave your contact information, we will send you a discount notice later.


Q:What is your MOQ and the lead time?

A: we don’t have MOQ, 1 samples is available.

Normally lead time is 1-3 working days for samples and 3-5 days for mass.


Q:What kinds of customized choices are offered in YXFiber?

A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.


Q:Why should I trust YXFiber compatible transceivers?

A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.


Q: How about shipping?

A: For sample, about 5-7 days by fast delivery ;

For Mass order, bout 15-25 days by sea, air, train shipping.


Q:What is your after-sales service? How about the warranty?

A:All our customers can enjoy the after-sales service for 3 years warranty and lifetime technical support.
