YXF-OSFP-800G-2FR4
YXFiber
YXF-OSFP-800G-2FR4
OSFP
800G
2xFR4
2KM
Duplex LC
Cisco, Mikrotik, HPE, TP LINK, HP, D-Link, Juniper, Ubiquiti, Huawei, Dell, Aruba, Finisar, ZTE, lntel, Avago, Arista, Mellanox, Brocade, QNAP, Fortinet, Customized

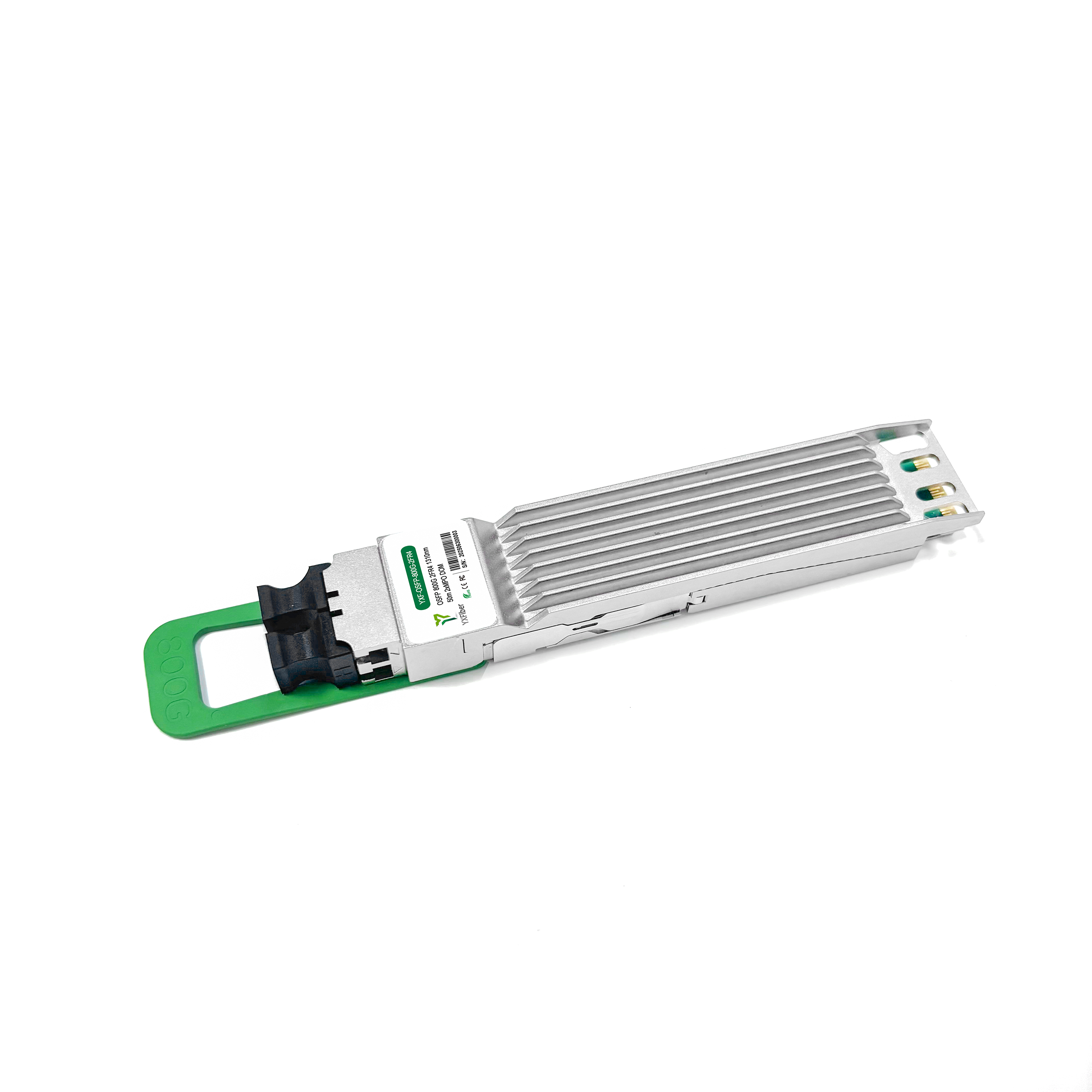

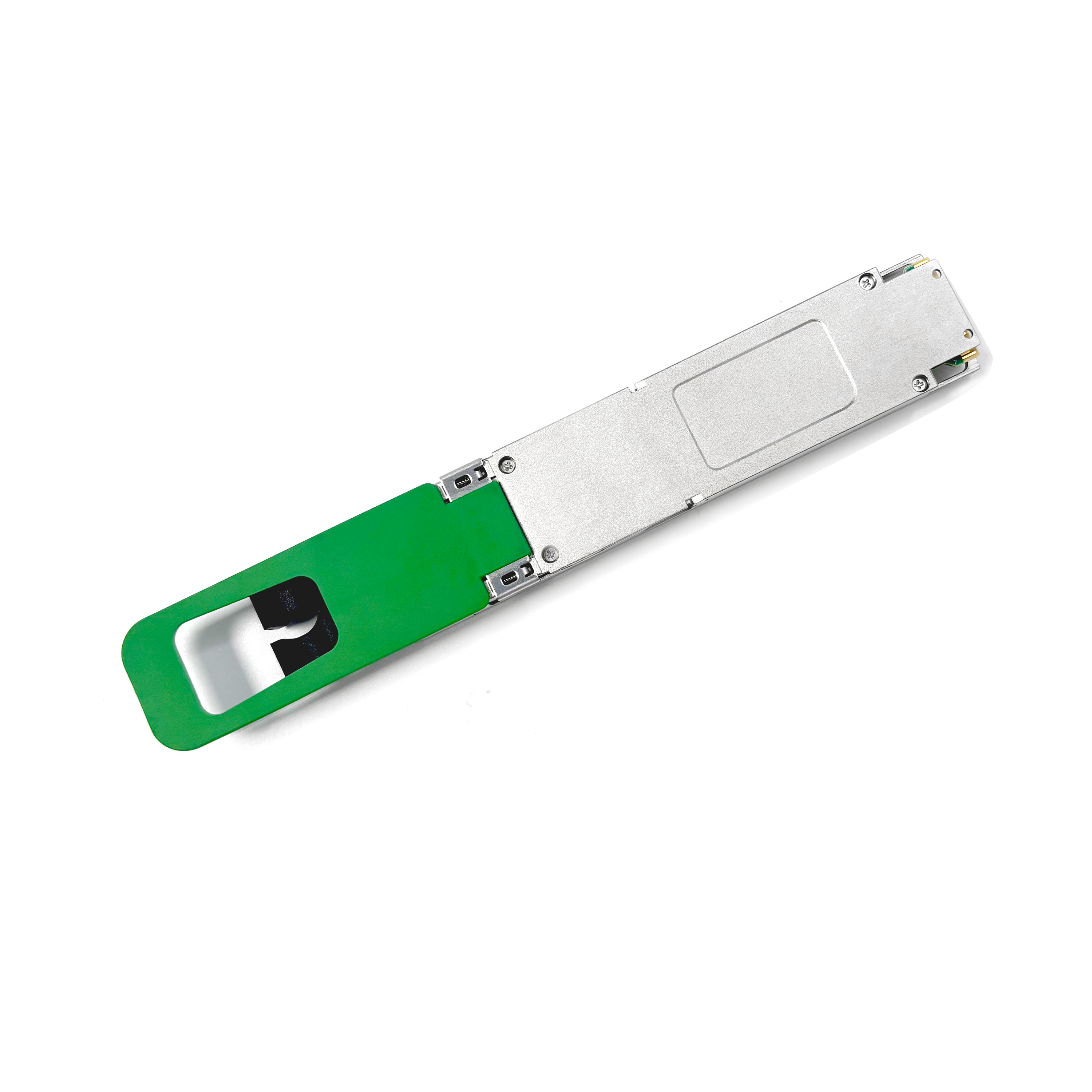

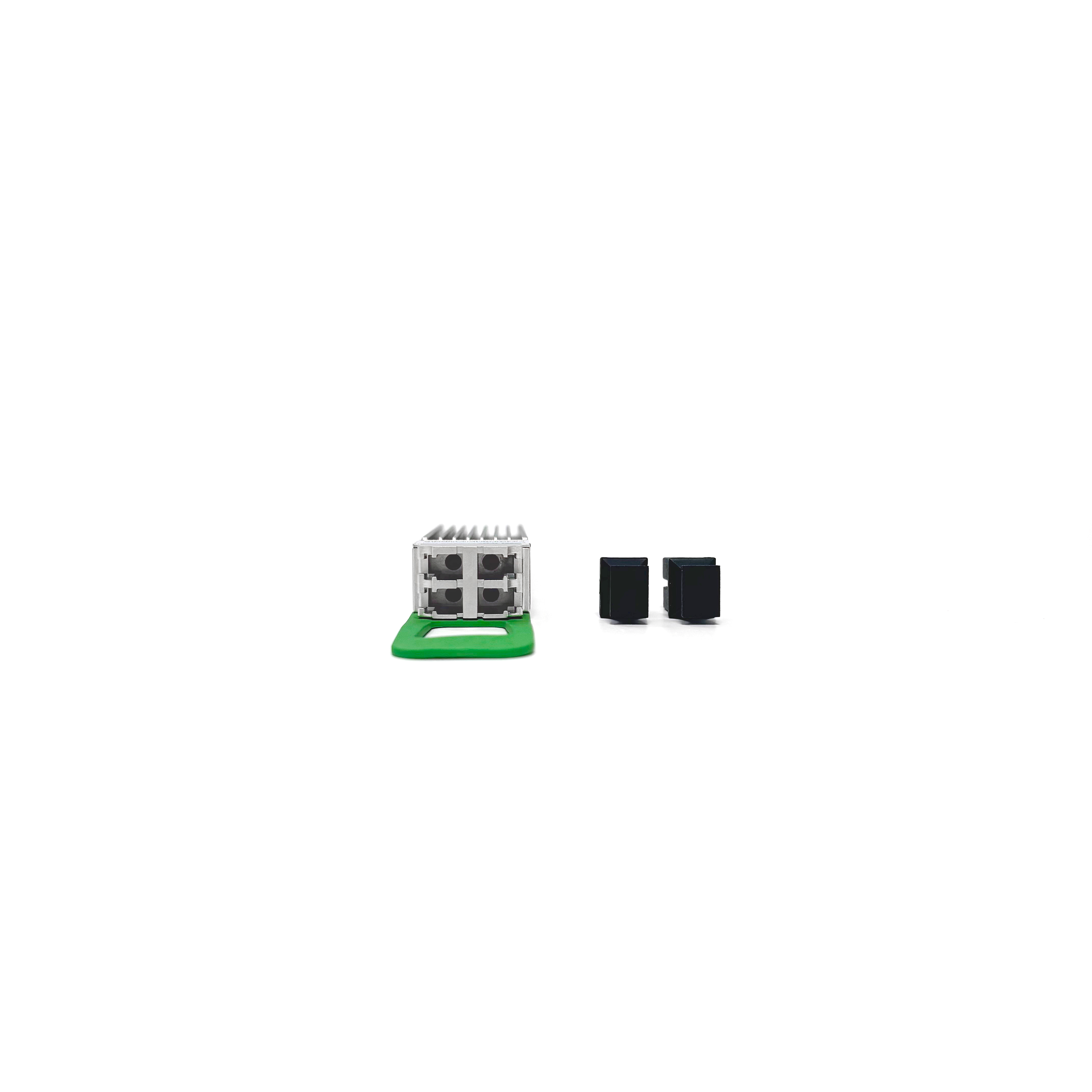

800GBASE-2xFR4 OSFP PAM4 1310nm 2km DOM Dual LC SMF Transceiver Module，Finned Top
The 800GBASE-2FR4 OSFP Optical Transceiver Module is is designed for 800GBASE throughput up to 2km over single-mode fiber (SMF) with dual duplex LC connectors. The OSFP-2FR4-800G can convert 8-channel 106.25Gb/s electrical data to 8-channel 106.25Gb/s optical signals. Similarly, it optically converts 8-channel 106.25Gb/s optical signals to 8-channel electrical data output on the receiver side. It has been designed to withstand the maximum range of external operating conditions including temperature, humidity and EMI.
The OSFP-2FR4-800G Optical Transceiver is a high performance, cost effective module for optical data communication applications supporting 800G InfiniBand.
| Form Factor | OSFP | Distance | 2km |
| Wavelength | 1310nm | Connector | Dual Duplex LC |
| Power Consumption | ≤16W | Transmitter | EML |
| Receiver | PIN | Media | SMF |
| Modulation（electrical ） | 8x106.25Gb/s PAM4 | Modulation（Optical ） | Two ports 4x106.25Gb/s PAM4 |
| Case Temperature(℃) | 0~70°C(32 to 158°F) | Warranty | 3 years |
800GBASE-2xFR4 OSFP PAM4 1310nm 2km DOM Dual LC SMF Transceiver Module，Finned Top
The 800GBASE-2FR4 OSFP Optical Transceiver Module is is designed for 800GBASE throughput up to 2km over single-mode fiber (SMF) with dual duplex LC connectors. The OSFP-2FR4-800G can convert 8-channel 106.25Gb/s electrical data to 8-channel 106.25Gb/s optical signals. Similarly, it optically converts 8-channel 106.25Gb/s optical signals to 8-channel electrical data output on the receiver side. It has been designed to withstand the maximum range of external operating conditions including temperature, humidity and EMI.
The OSFP-2FR4-800G Optical Transceiver is a high performance, cost effective module for optical data communication applications supporting 800G InfiniBand.
| Form Factor | OSFP | Distance | 2km |
| Wavelength | 1310nm | Connector | Dual Duplex LC |
| Power Consumption | ≤16W | Transmitter | EML |
| Receiver | PIN | Media | SMF |
| Modulation（electrical ） | 8x106.25Gb/s PAM4 | Modulation（Optical ） | Two ports 4x106.25Gb/s PAM4 |
| Case Temperature(℃) | 0~70°C(32 to 158°F) | Warranty | 3 years |
