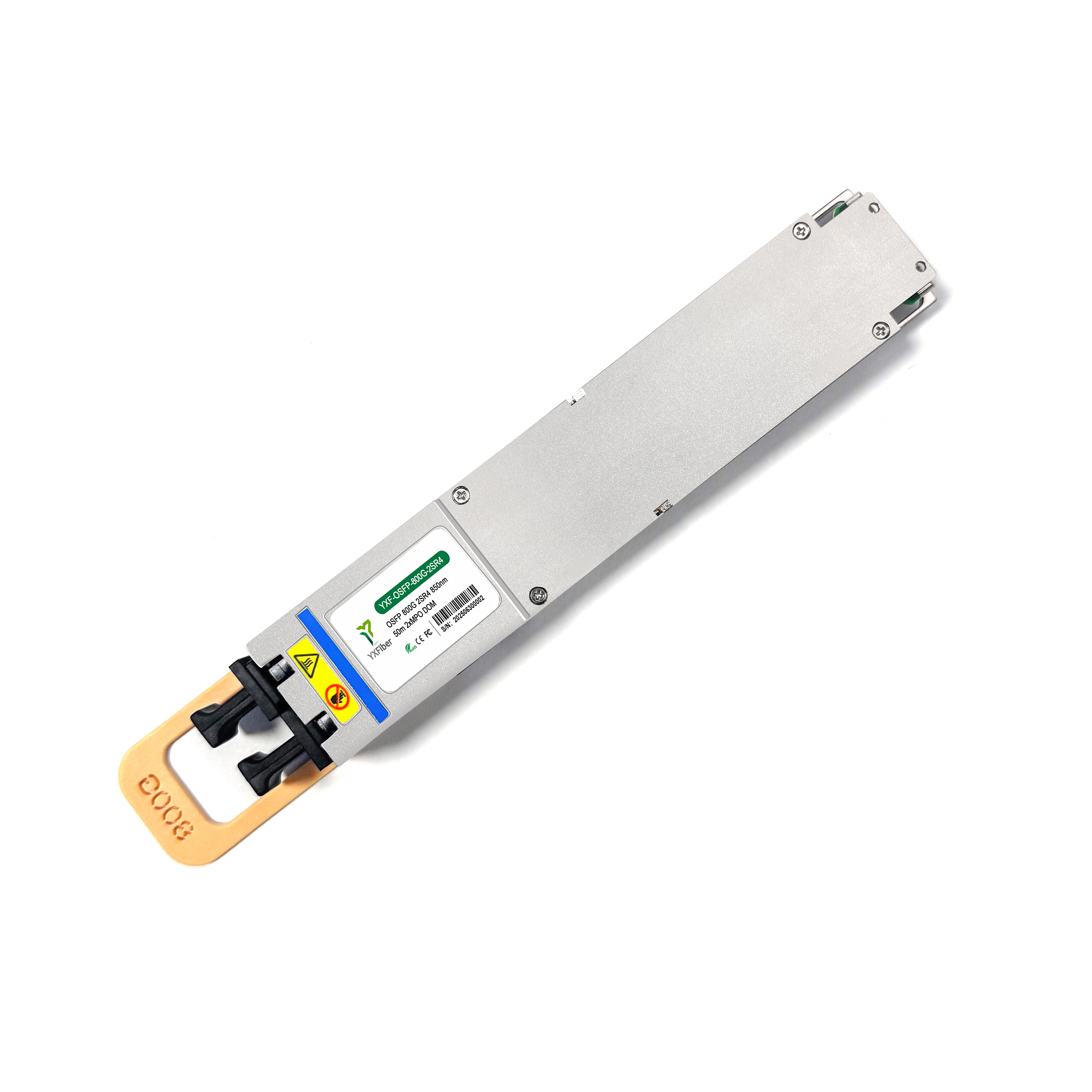

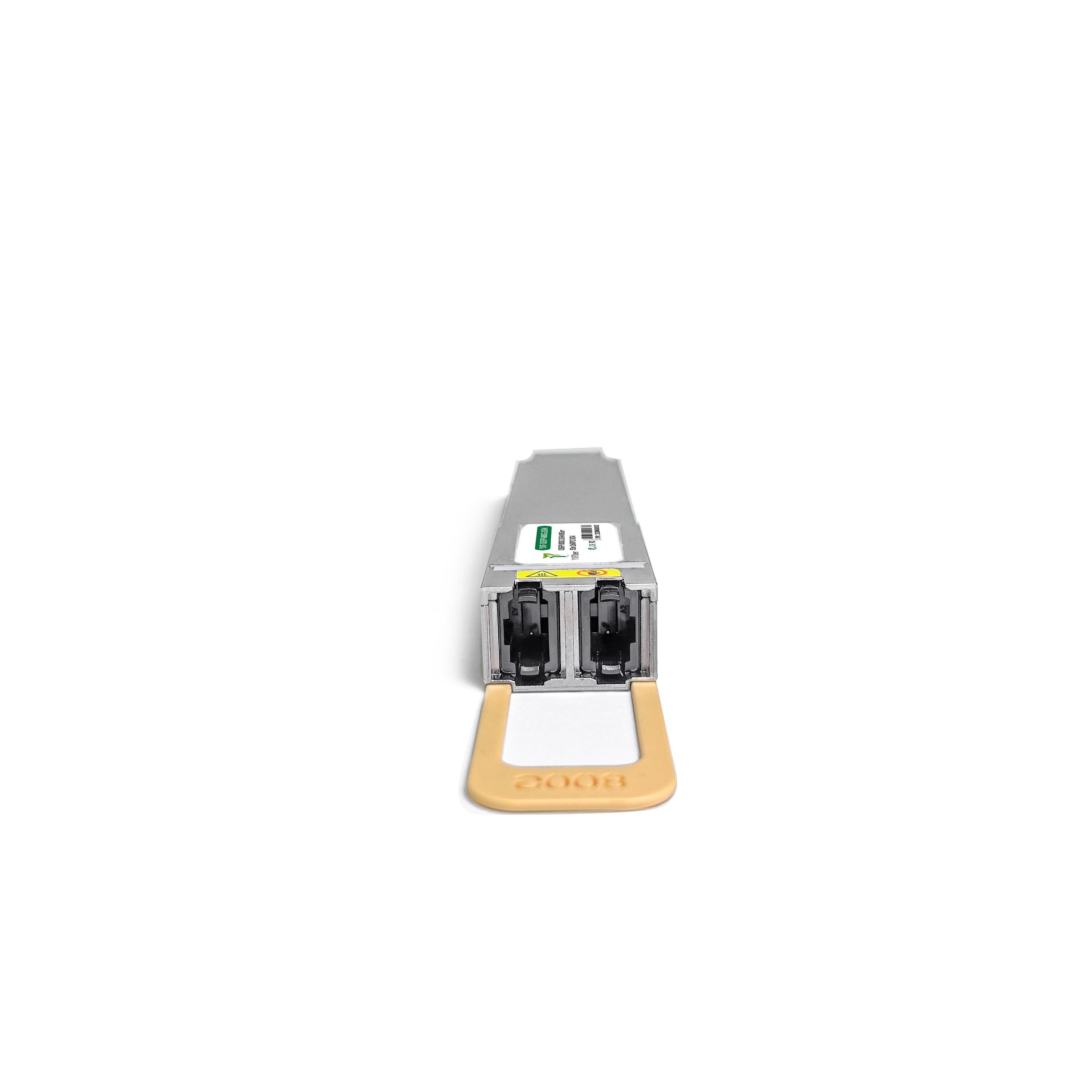

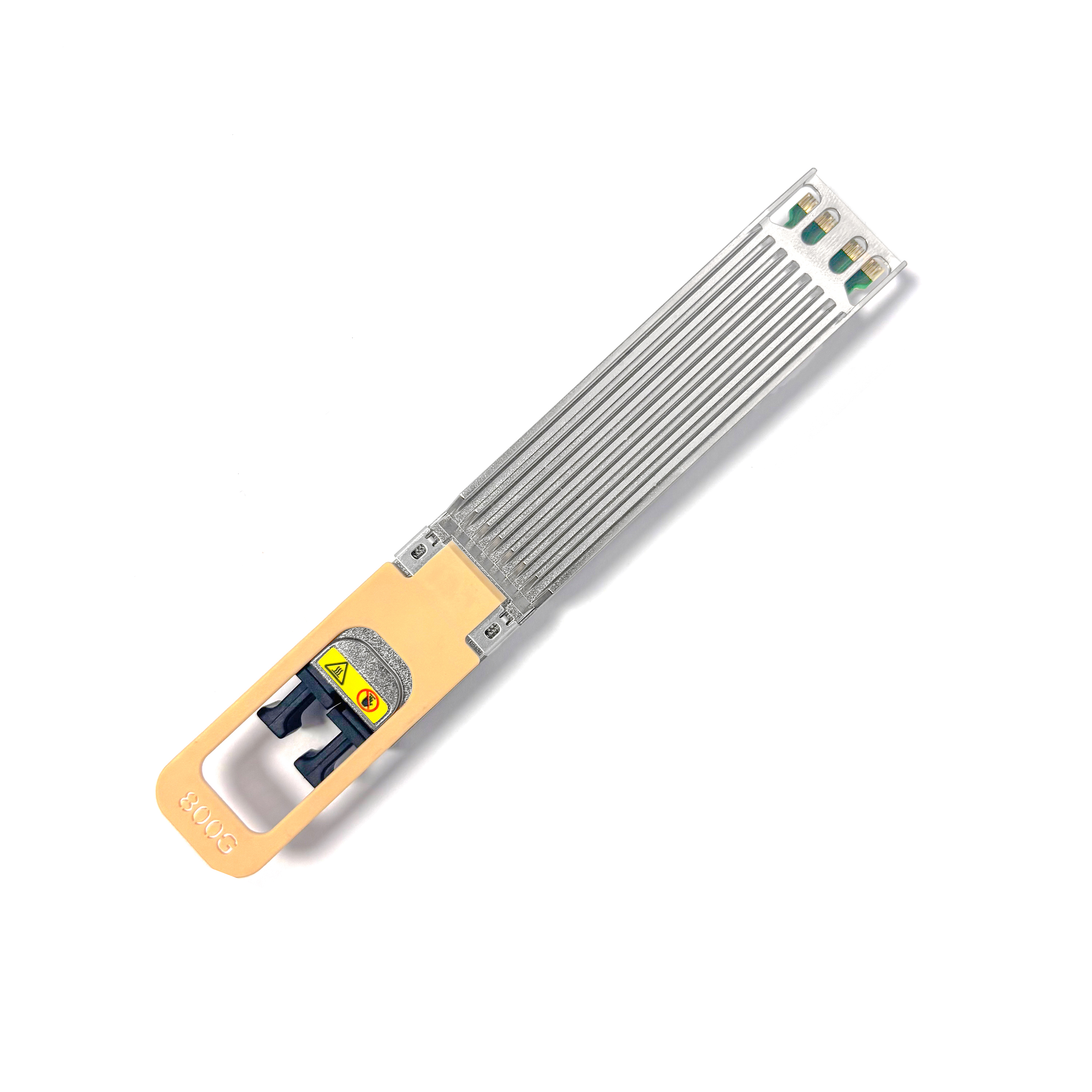

800GBASE-2xSR4 OSFP PAM4 850nm 50m DOM Dual MTP/MPO-12 APC MMF Transceiver Module Finned Top

Features：
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Provide Professional Compatibility and Parameter Test Reports.
  • 30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.
Availability:
Quantity:
Inquire

  • YXF-OSFP-800G-2SR4

  • YXFiber

  • OSFP

  • 800G

  • 2xSR4

  • 50M

  • MPO-12 APC

  • Cisco, Mikrotik, HPE, TP LINK, HP, D-Link, Juniper, Ubiquiti, Huawei, Dell, Aruba, Finisar, ZTE, lntel, Avago, Arista, Mellanox, Brocade, QNAP, Fortinet

800GBASE-2xSR4 OSFP PAM4 850nm 50m DOM Dual MTP/MPO-12 APC MMF Transceiver Module Finned Top


This product is a 800Gb/s YXF-OSFP-800G-2SR4 optical module designed for 100m optical communication applications . The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s. On the  receiver side , the  module converts 8 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 800Gb/s into 8 channels of 100Gb/s (PAM4) electrical output data. An optical fiber cable with dual MPO- 12 connector can be plugged into the OSFP 800G SR8 module receptacle.  Host FEC is required to support up to 100m fiber transmission.


Form FactorTwin-port OSFP

Distance

30m(0M3)/50m (0M4)

Wavelength

850nm

Connector

Two MPO-12/APC

Power Consumption

≤16WTransmitterVCSEL
ReceiverPD

Media

MMF

Modulation(electrica

8x106.25Gb/s PAM4Modulation(Optical )Two ports 4x106.25Gb/s PAM4

Case Temperature(°C)

0 to 70°C (32 to 158°F)Warranty3 Years



Product Highlights

Each product is thoroughly checked for peformance and compatibility before delivery to the customer.

Customer centricity and 100% customer satisfaction rate.

All oplical transceivers are tested through dozens of processes before leaving the factory.


07171715 _00



Certication

Our company and products are certified to meet industry standards, ensuring top quality and reliability.Trust our expertise for secure, high-performance solutions that you can depend on.


Certificate






Features

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.Partner with us for the finest fiber optic technology, tailored for diverse market need

our advantage


Comprehensive Testing Increases Reliability

    Six professional transceiver performance tests. Optical Spectrum, Eye Pattern, Bit Error Rate and Temperature Test for Assured Quality.

quality test

包装

Question And Anwsers


Q:What is your main products?

A:Our main products are optical modules, please send us an inquiry and we will send you a complete catalogue.


Q: Do you provide samples? Is it free or extra?

A: Yes, but we need to charge for samples, we will return sample fee in the later order.


Q:Can I get a lower price? Any discount?

A: Yes, price could be negotiated based on the quantity.Please leave your contact information, we will send you a discount notice later.


Q:What is your MOQ and the lead time?

A: we don’t have MOQ, 1 samples is available.

Normally lead time is 1-3 working days for samples and 3-5 days for mass.


Q:What kinds of customized choices are offered in YXFiber?

A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solut

download YXF-OSFP-800G-2SR4.pdf
