What are the Steps Involved in Testing Optical Modules?

Optical modules undergo rigorous testing and quality inspection procedures before shipment, including incoming material inspection, parameter testing, aging testing, actual device testing, and end-face inspection. All test results must meet standard levels; otherwise, the optical module will be returned to the production line for readjustment. Understanding these tests helps in identifying the quality of optical modules.

Optical module testing steps

1. Incoming Material Inspection and Surface Mount Inspection:

Incoming material inspection and surface mount inspection are performed before assembling optical modules. Incoming material inspection refers to the manufacturer's testing of incoming components before assembly, such as checking the optical transmitter assembly (TOSA), optical receiver assembly (ROSA), and optical transmitter-receiver assembly (BOSA) for compliance. This ensures the quality of the optical module, reduces rework and defect rates, and prevents damage to expensive optical components. Surface mount inspection mainly checks the correct placement of components on the PCB board and for contamination, thus ensuring the performance of the optical module.

2. Optical Power Testing:

Average output optical power is a crucial parameter of optical modules, directly affecting communication quality.

3. Extinction Ratio and Optical Modulation Amplitude Test:

Extinction ratio is one of the parameters used to measure the quality of an optical module. It refers to the ratio of optical power during the high-level (all "1") and low-level (all "0") phases of the laser output. Testing this ratio allows us to determine if the laser is operating within its optimal bias point and modulation efficiency range. Furthermore, the optical modulation amplitude (OMA) measures the power difference between when the laser is on and off.

Both of these are measured using a mainstream optical oscilloscope. Simultaneously, the extinction ratio test shows the relative amplitude of the "1" and "0" levels of the optical signal. A higher extinction ratio and a larger relative amplitude indicate a stronger ability to receive and distinguish the optical signal, resulting in higher receiver sensitivity. At the same time, extinction ratio and optical power are inversely proportional; during testing, it can be observed that a higher extinction ratio corresponds to lower transmitted optical power.

4. Bit Error Rate and Receiver Sensitivity Test:

Bit error rate (BER) is one of the parameters used to measure the ability of an optical module to correctly transmit symbols. Bit error rate (BER) refers to the ratio of the number of erroneous bits received after photoelectric conversion at the receiver within a specified time to the number of bits output by the BER meter. BER testing requires receiving the optical signal with pseudo-random signals output by the optical module under test through a standard receiver tube test unit, and then demodulating and comparing the signals using the same unit to complete the BER test.

5. Eye Diagram Testing：

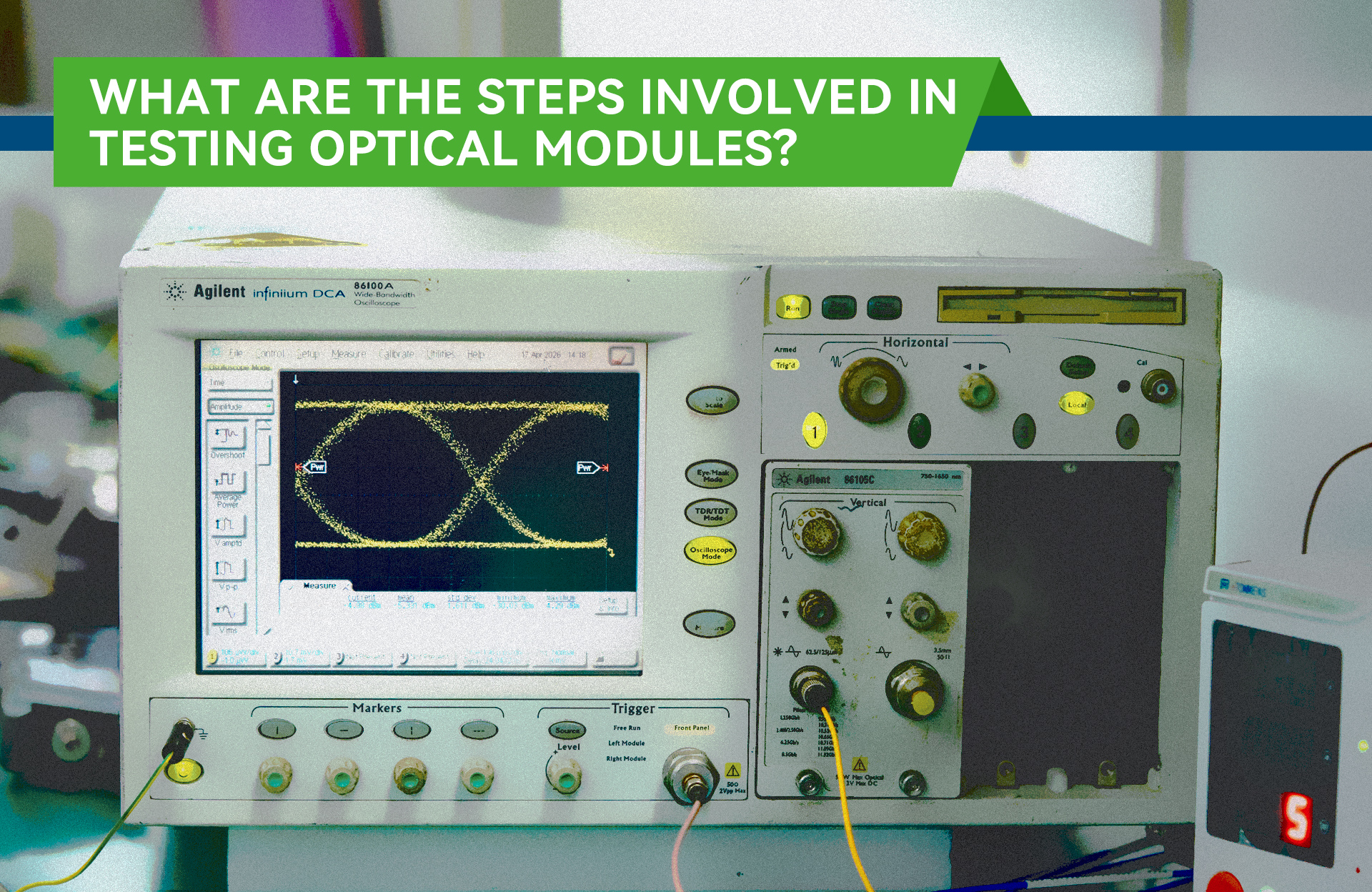

Eye diagram testing and adjustment are crucial for ensuring optimal signal quality from the optical module. An eye diagram is formed by superimposing and accumulating all captured waveforms in three-bit increments using the persistence function of an oscilloscope. The results of the eye diagram test reveal the digital signal quality of the optical module. Careful observation of the eye height, eye width, jitter, and duty cycle helps determine the module's performance. A larger eye indicates less inter-symbol interference (ISI), and better module performance.

6. Wavelength Testing：

Since optical modules at both ends of the equipment must emit the same wavelength to establish communication, manufacturers must test the wavelength of the optical modules before shipment to ensure it is within the acceptable tolerance range.

Manufacturers typically use instruments like spectral analyzers to measure the center wavelength of optical modules. The measured center wavelength value usually deviates from the standard value. Different types of optical modules have different deviations, but as long as the deviation is within the allowable range, it is acceptable. If the measured value does not conform to the standard specification, the optical module is considered defective.

7. Aging Test:

Manufacturers generally use optical aging chambers to simulate extreme conditions to test the optical modules, thereby verifying whether the module's performance meets the standards. After aging test, the transmitting and receiving ends need to be tested, mainly to check whether parameters such as optical power, extinction ratio, and sensitivity meet the requirements.

8. Compatibility Test

The optical module is inserted into a switch of the corresponding brand for testing. Normal communication indicates that the optical module has passed this test. If communication fails, the optical module is incompatible.

9. End-face Inspection

After each test, the end face of the optical module needs to be inspected under a microscope for dirt and scratches. If dirt is found, it needs to be cleaned. In fact, each test involves inserting the optical module into the device or instrument. This process makes the optical module susceptible to contamination. Therefore, before shipment, the optical module needs to be inspected under a microscope. If there is no dirt, it can be prepared for packaging and shipment; however, if there is dirt, it needs to be cleaned.

The above tests are required of qualified optical module manufacturers. YXFiber strictly controls the quality of its optical modules, and all modules undergo the above tests before shipment. You can purchase with confidence.
