As enterprise digital transformation enters its more complex phase, campus networks are no longer merely about "connectivity," but rather the core engine of business innovation. Traditional Ethernet architectures are becoming bottlenecks, while all-optical network (F5G), with its disruptive architectural advantages, is becoming the inevitable choice for next-generation enterprise-level campus infrastructure.
For the past two decades, enterprise campus networks have generally adopted a three-layer Ethernet architecture: core layer—aggregation layer—access layer. This hierarchical design worked well in the PC internet era, but in today's context of the explosive growth of cloud computing, big data, IoT, AI, and mobile, its drawbacks are glaringly obvious:
Bandwidth Bottleneck: Copper cable (Cat5e/6) transmission distance is limited to within 100 meters, making aggregation switches the traffic convergence point, highly susceptible to congestion. When 4K video, VR/AR, and massive IoT data flood in, network latency and packet loss increase significantly.
Pressure on Server Rooms and Low-Voltage Rooms: Each floor requires the deployment of active access switches, and low-voltage rooms require power supply, cooling, and dust protection, not only occupying building space but also incurring high electricity and maintenance costs.
Poor scalability: Adjustments to workstations or repartitioning of offices require rewiring or adding switches, resulting in large-scale, time-consuming projects that severely impact business agility.
Complex operation and maintenance: Numerous active devices at multiple levels make fault location difficult. IT teams are often overwhelmed and reactively respond to network issues.
Difficult upgrades: Upgrading from gigabit to 10 gigabit requires replacing switches and re-laying Category 6/7 cabling, resulting in significant investment and difficult construction.
The enterprise-level all-optical network solution is based on Passive Optical Network (PON) technology, combined with the F5G (Fifth Generation Fixed Network) standard, redefining the physical architecture of the campus network.
Components | Function | Features |
OLT (Optical Line Terminal) | Deployed in the central computer room, it serves as the "brain" of the all-optical network, responsible for data aggregation, exchange, QoS policies, and equipment management. | One OLT can cover thousands of ONUs and supports hot backup and redundant power supplies. |
ODN (Optical Distribution Network) | It consists of a trunk optical cable, a fiber distribution box, and a passive optical splitter. The optical splitter splits one optical signal into multiple paths (such as 1:16, 1:32, 1:64). | Passive components require no power supply, are not affected by lightning strikes, require no maintenance, and have a lifespan of over 20 years. |
ONU (Optical Network Unit) | Deployed on the user side (office, meeting room, workshop, etc.), providing interfaces such as RJ45, POTS, Wi-Fi, and PoE. | It is compact in size and can be installed on a desktop, wall, or wall-mounted, with a power consumption of only 3-5W. |
Traditional Ethernet: Core Switch → Aggregation Switch → Access Switch → Terminal

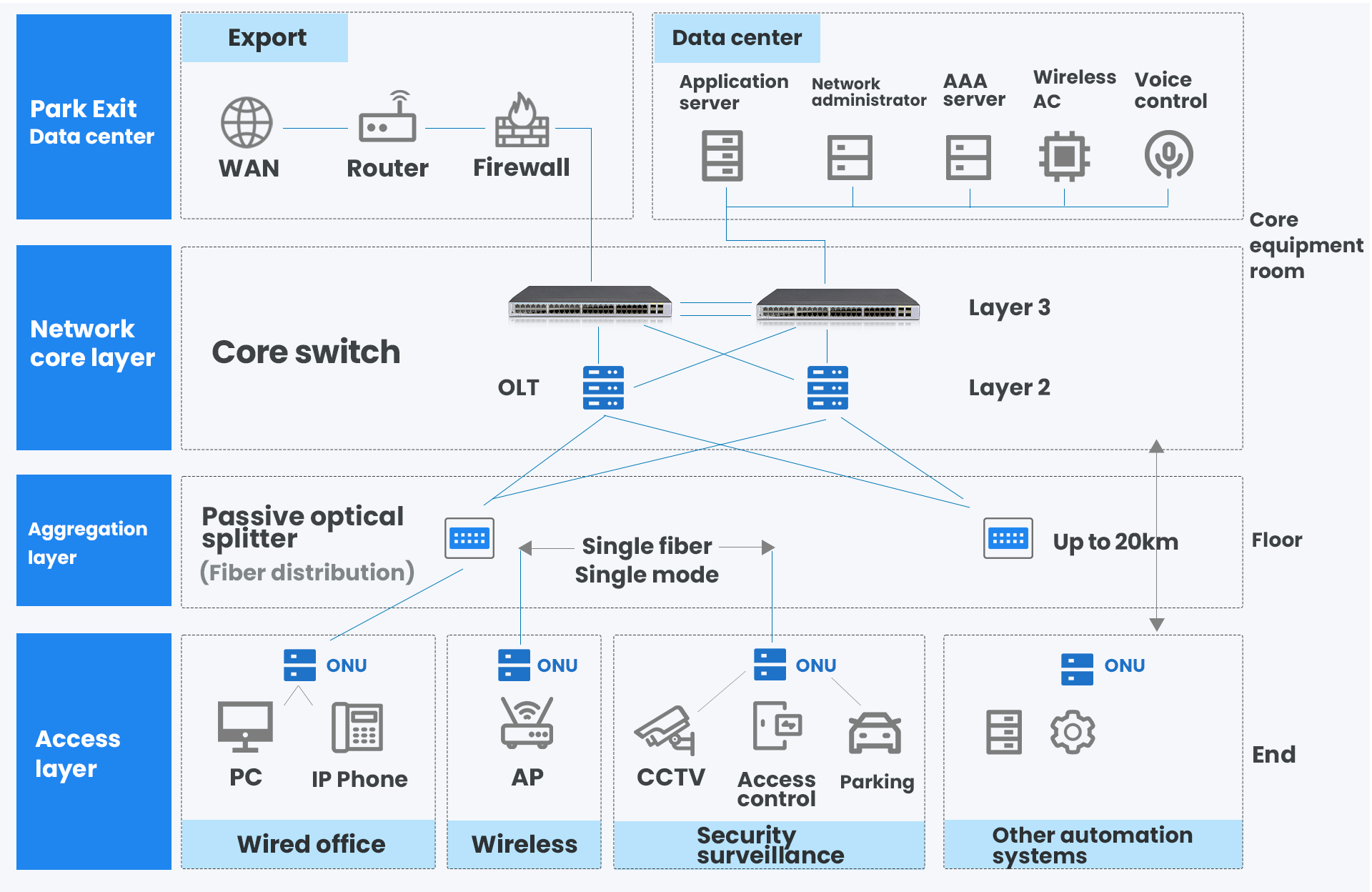

All-Optical Network: OLT → Splitter → ONU → Terminal
Reduced Layers: Eliminates aggregation and access layer switches, replacing active devices with passive optical splitters.
Simplified Cabling: A single backbone fiber runs from the central equipment room to the low-voltage rooms on each floor, passing through a splitter, and then connecting to each ONU via terminal optical fibers. The fiber is small and lightweight, making full use of existing conduits, reducing cable tray space usage by over 80%.
Point-to-Multipoint (P2MP): One OLT port can simultaneously serve multiple ONUs through an optical splitter, saving significant fiber and port resources compared to the traditional point-to-point (P2P) structure of Ethernet.
Bandwidth Sharing and Isolation: Based on TDM and WDM technologies, achieves symmetrical or asymmetrical uplink/downlink bandwidth. Supports allocating independent virtual channels (such as VLAN + QoS) for different services, ensuring priority forwarding for critical services such as video conferencing and industrial control.
Dynamic Bandwidth Allocation (DBA): The OLT dynamically adjusts bandwidth based on the real-time needs of the ONU, improving utilization while ensuring timely handling of sudden traffic surges.
Plug and Play & Automatic Configuration: After power-on, the ONU automatically registers with the OLT and obtains its configuration, achieving "zero-contact" deployment and significantly simplifying installation and replacement processes.
Single-mode fiber can achieve transmission distances of over 20 kilometers, far exceeding the 100-meter limit of copper cables. For large manufacturing parks, multiple office buildings, and distributed warehouse areas, there is no need to set up intermediate aggregation nodes; a single fiber runs directly from the central equipment room to the end ONU. This results in: Simplified Architecture: No more active equipment is needed in the low-voltage room; no power supply, air conditioning, or lightning protection is required.
Rapid Deployment: When adding a new building or workshop, only fiber optic cables need to be laid and ONUs installed; no expansion of aggregation equipment is required. 3.2 Smooth Bandwidth Evolution, One-Time Investment for a Decade of Security
Fiber optic cables have virtually unlimited bandwidth. Currently, GPON (2.5G downlink/1.25G uplink) or 10G-PON (10G downlink/2.5G uplink) can be deployed, and future upgrades to 50G-PON or even higher are possible without replacing the fiber optic cable. This characteristic of "unchanged passive media, upgraded active equipment" ensures that network infrastructure will not become outdated for the next 10 years.
Passive Nodes are Maintenance-Free: The failure rate of passive components such as optical splitters is almost zero, completely eliminating the risk of interruptions in low-voltage rooms due to fan failures, humidity, or power outages.
Low Power Consumption: The typical power consumption of an ONU is only 3-5W, saving more than 90% energy compared to traditional access switches (usually 20-50W). At the same time, eliminating aggregation switches reduces overall network energy consumption by 50%-60%. High Availability: The OLT supports dual master controllers, dual power supplies, and Type B/C protection switching, enabling millisecond-level switching in case of link failure.
A single fiber optic cable can simultaneously carry multiple services such as data, voice, video surveillance, Wi-Fi backhaul, access control, and building automation. Through the OLT's VLAN and QoS policies, the following are achieved:
Physical Isolation: Different services use independent VLANs, ensuring no interference.
Priority Guarantee: Critical services such as video conferencing and ERP receive high-priority queues, ensuring low latency and zero packet loss.
Multi-Network Integration: Previously independent telephone networks, security networks, office networks, and equipment networks can be merged into a single all-optical network, significantly reducing construction and maintenance costs.
Unified Network Management: Through the NMS system, administrators can view the status of all OLTs, splitters, and ONUs on a single topology diagram, completing alarm, configuration, and performance monitoring in one place.
Rapid Fault Location: The all-optical network has fewer layers, and the fiber optic links can be precisely located using an OTDR (Optical Time Domain Reflectometer), allowing fault location down to the meter level.
ONU Remote Management: Supports remote restarting of ONTs/ONUs, configuration distribution, and firmware upgrades, without on-site operation.
Dimension | Traditional Ethernet solutions | All-optical network solution |
Architecture layer | Core-Aggregation-Access (Three Levels) | OLT-Splitter-ONU (Two-stage) |
Transmission distance | 100 meters (copper cable) | 20 kilometers (fiber optic cable) |
Active equipment in low-voltage rooms | Each floor has an access switch | None (passive beam splitter) |
Power consumption per port | Access switches are approximately 20-50W | ONU is about 3-5W |
Bandwidth upgrade | The switch and cables need to be replaced | Upgrade only the two end modules |
Number of faulty nodes | Multiple (each switch is a point of failure) | Few (OLT+ONU, no intermediate source) |
Wiring complexity | Copper cables are thick and heavy, taking up a lot of space in the conduit | Fiber optic cables are thin, lightweight, and take up little space |
TCO (5 years) | high | Reducing costs by approximately 40% compared to traditional methods. |
For enterprises smoothly upgrading from traditional Ethernet to an all-optical network, the following steps are recommended:
Current Status Assessment: Review the existing network topology, equipment list, and cabling status to clarify business needs and bandwidth forecasts for the next 3-5 years.
Architecture Design: Determine the OLT deployment location, the number of splitter levels and splitting ratio, and the ONU selection (desktop, wall-mounted, industrial, etc., depending on the scenario).
Optical Cable Construction: Lay the backbone optical cable to each floor or area, utilizing existing conduits or adding new micro-cables. It is recommended to reserve 20% redundant fiber cores.
Equipment Deployment: Install the OLT, splitters, and ONUs. For existing areas, a gradual cutover using a "replacement method" can be used; newly built areas should be directly covered by full optical fiber.
Service Migration: First migrate non-core or newly established services, verifying stability before gradually replacing traditional switches. Note that the original Ethernet should be retained as a backup to ensure service continuity.
Operations and Maintenance Training: Provide training to the IT team on PON technology, OTDR testing, and network management system operation, and establish troubleshooting SOPs.
All-optical networks are not merely about fiber optics replacing copper cables; they mark the entry of fixed networks into the fifth generation (F5G). F5G, characterized by Enhanced Fiber Coefficient (FFC), All-Optical Connectivity (FCC), and Great Reliability (GRE), will deeply integrate with Wi-Fi 7 and edge computing:
Wi-Fi 7 Backhaul: All-optical networks provide 10 Gigabit symmetrical bandwidth, serving as the perfect backhaul channel for Wi-Fi 7 APs, achieving gigabit wireless experiences indoors.
Edge Computing Power Decentralization: ONUs can integrate lightweight computing capabilities, processing IoT data locally and reducing cloud pressure.
AI-Driven Maintenance: Predictive maintenance of fiber optic links based on big data and AI automatically identifies degradation trends and provides early warnings.
It is foreseeable that in the next 10 years, enterprise-level campus networks will fully transition to all-optical, passive, and intelligent networks. For enterprises planning new campuses or upgrading existing networks, all-optical networks are no longer an "option," but a "must-have" for the digital future.
In conclusion, the all-optical network solution fundamentally overturns the traditional layered architecture of Ethernet, solving long-standing pain points in enterprise IT such as distance, bandwidth, energy consumption, and maintenance with its minimalist "fiber to the end" concept. Whether in high-end office buildings, smart campuses, smart hospitals, or intelligent manufacturing and smart parks, all-optical networks demonstrate unparalleled advantages.
Currently, with the maturity of the F5G standard, the improvement of the industry chain, and the continuous decline in equipment costs, all-optical networks have transformed from a "future technology" into the "optimal solution at present." Enterprises should seize this window of opportunity and plan their all-optical network upgrades as early as possible, paving a smooth, broad, and sustainable path for digital transformation.
