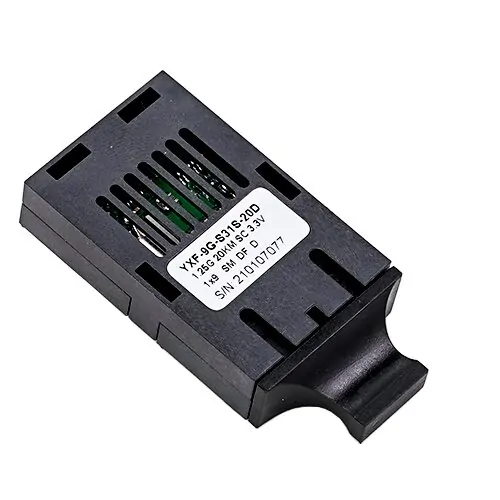

1.25g Dual 1x9
YXFiber
1.25g Dual 1x9
SFP
155M
BX20
100M
Duplex LC
Cisco
● Adopts standard 1x9 package dual SC plug-in type or FC pigtail type, compatible with Multisource protocol
● Single +3.3V/+5V power supply; low power consumption
● Comply with IEEE802.3z Gigabit Ethernet standard
● The emitting device can choose FP, DFB laser, 850nm VCSEL multi-mode laser with operating wavelength of 1310nm or 1550nm.
● Receive using planar structure InGaAsP PIN detector
● PECL signal detection logic level
● Comply with RoHS environmental protection requirements
Application:
● Suitable for Gigabit Ethernet transceivers at 1.25G and below, high-speed fiber channels, high-speed switching backplanes and other applications
● Digital video
| Part No. | Data Rate | Wavelenth | Distance | Output Power (dBm) | Sensitivity (dBm) | Connector | Temp(℃ ) |
| 1X9 BIDI | 155M | TX1310/RX1550 | 20KM | -12--3 | ≤-34 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1550/RX1310 | 20KM | -12--3 | ≤-34 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1310/RX1550 | 40KM | -7-0 | ≤-35 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1550/RX1310 | 40KM | -7-0 | ≤-35 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1490/RX1550 | 80KM | -2-1 | ≤-37 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1550/RX1490 | 80KM | -2-1 | ≤-37 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1310/RX1550 | 20KM | -9--3 | ≤-24 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1550/RX1310 | 20KM | -9--3 | ≤-24 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1310/RX1550 | 40KM | -5-0 | ≤-25 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1550/RX1310 | 40KM | -5-0 | ≤-25 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1490/RX1550 | 80KM | -2-1 | ≤-27 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1550/RX1490 | 80KM | -2-1 | ≤-27 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 20KM | -12--2 | ≤-34 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 40KM | -7-0 | ≤-35 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1550nm | 80KM | -2-1 | ≤-37 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 850nm | 550M | -9--3 | ≤-18 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 20KM | -9--3 | ≤-24 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 40KM | -5-0 | ≤-25 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1550nm | 80KM | -2-1 | ≤-27 | SC | 0~70 |
| 1X9 DUAL TTL | 0-2M | 1310nm | 20KM | -4--10 | ≤-16 | SC | 0~70 |
● Adopts standard 1x9 package dual SC plug-in type or FC pigtail type, compatible with Multisource protocol
● Single +3.3V/+5V power supply; low power consumption
● Comply with IEEE802.3z Gigabit Ethernet standard
● The emitting device can choose FP, DFB laser, 850nm VCSEL multi-mode laser with operating wavelength of 1310nm or 1550nm.
● Receive using planar structure InGaAsP PIN detector
● PECL signal detection logic level
● Comply with RoHS environmental protection requirements
Application:
● Suitable for Gigabit Ethernet transceivers at 1.25G and below, high-speed fiber channels, high-speed switching backplanes and other applications
● Digital video
| Part No. | Data Rate | Wavelenth | Distance | Output Power (dBm) | Sensitivity (dBm) | Connector | Temp(℃ ) |
| 1X9 BIDI | 155M | TX1310/RX1550 | 20KM | -12--3 | ≤-34 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1550/RX1310 | 20KM | -12--3 | ≤-34 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1310/RX1550 | 40KM | -7-0 | ≤-35 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1550/RX1310 | 40KM | -7-0 | ≤-35 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1490/RX1550 | 80KM | -2-1 | ≤-37 | SC | 0~70 |
| 1X9 BIDI | 155M | TX1550/RX1490 | 80KM | -2-1 | ≤-37 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1310/RX1550 | 20KM | -9--3 | ≤-24 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1550/RX1310 | 20KM | -9--3 | ≤-24 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1310/RX1550 | 40KM | -5-0 | ≤-25 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1550/RX1310 | 40KM | -5-0 | ≤-25 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1490/RX1550 | 80KM | -2-1 | ≤-27 | SC | 0~70 |
| 1X9 BIDI | 1.25G | TX1550/RX1490 | 80KM | -2-1 | ≤-27 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 20KM | -12--2 | ≤-34 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 40KM | -7-0 | ≤-35 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1550nm | 80KM | -2-1 | ≤-37 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 850nm | 550M | -9--3 | ≤-18 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 20KM | -9--3 | ≤-24 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1310nm | 40KM | -5-0 | ≤-25 | SC | 0~70 |
| 1X9 DUAL | 1.25G | 1550nm | 80KM | -2-1 | ≤-27 | SC | 0~70 |
| 1X9 DUAL TTL | 0-2M | 1310nm | 20KM | -4--10 | ≤-16 | SC | 0~70 |
