InfiniBand MCP7Y60-H001 Compatible 400G NDR OSFP Finned Top to 2 x 200G QSFP56 Passive Direct Attach Copper Breakout Cable

400G OSFP DAC
Length:
Availability:
Quantity:
  • NDR-OSFP-2Q56PC001

  • YXFiber

  • QSFP56

  • 400G

  • DAC

Product Description

InfiniBand NDR-OSFP-2Q56PC001 Compatible 400G HDR OSFP Finned Top to 2 x 200G QSFP56 Passive Direct

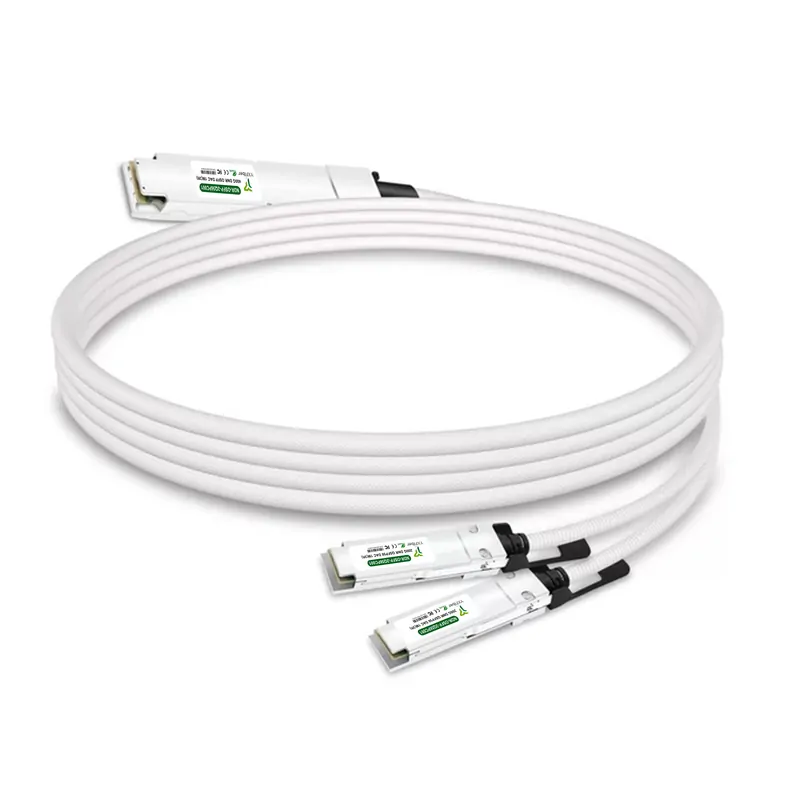

InfiniBand NDR-OSFP-Q2PC001 is a passive Direct Attach Copper (DAC) cable with an OSFP-based twin-port 2x 200Gb/s connector to two 200Gb/s QSFP56s, and is a high-speed 200Gb/s splitter cable for InfiniBand and Ethernet networking. The DAC firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to.The 8-channel twin-port OSFP end uses a finned top form-factor for use in Quantum-2 and Spectrum-4 switch cages.

Specifications

Form Factor
OSFP to 2xQSFP56
OSFP to 2xQSFP56
0.5m~3m
Wire AWG
28AWG~30AWG
Commercial Temperature
0~70°C(32 to 158°F)
Jacket Material
PVC
Power Consumption
<0.1W
Minimum Bend Radius
10x OD
Application
IB HDR
