| Quantity: | |
|---|---|
YXF-GE-T
YXFiber
SFP
1G
100M
RJ-45
Specifications

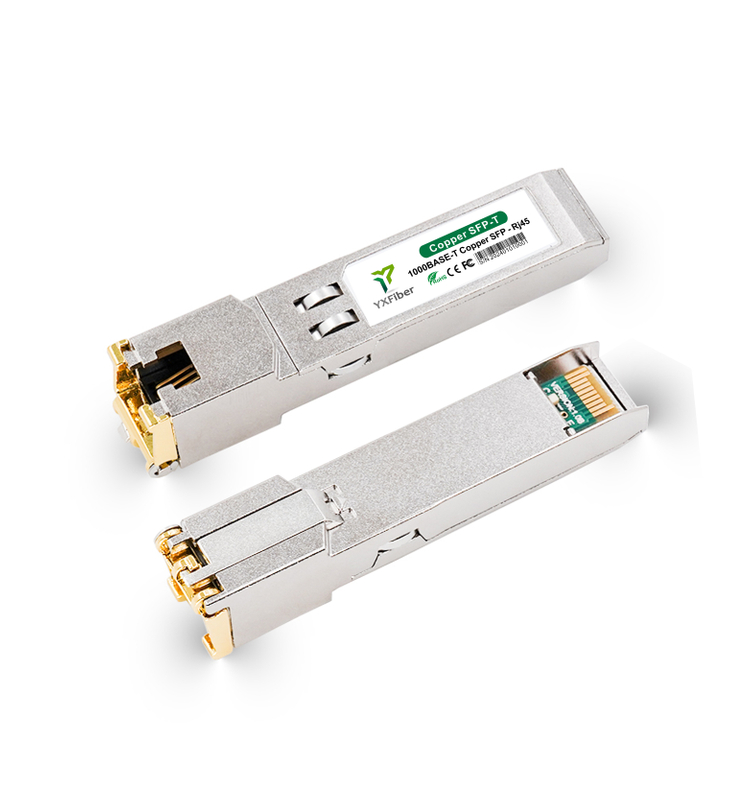

Compatible 1000BASE-T SFP Transceiver Module (Copper, 100m, RJ-45)
compatible SFP transceiver supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. This transceiver is compliant with IEEE STD 802.3, 802.3ab, and SFP MSA. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
FEATURES
* Up to 1.0Gb/s data rate
* Hot-pluggable SFP
* Fully metallic case for low EMI
* Low power consumption(0.5W typical)
* Compact RJ-45 connector assembly
* 10/100/1000Mbps compliant in host systems with SGMII interface
* Compatible with RoHS and lead-free
* Case operating temperature: 0°C to +70°C
Applications
* LAN 1000Base-T
* 1.25 Gigabit Ethernet over Cat 5 cable
* Switch to Switch interface
* Router/Server interface
| Part Number | YXF-GE-T | Vendor Name | YXFiber |
| Form Factor | SFP | Max.Data Rate | 1000Mbps |
| Max.Cable Distance | 100m | Media | Cat 5e/6/6a (UTP) |
| Connector | RJ-45 | Rx LO5 | NO |
| Power Consumption | ≤1.2W | DDM/DOM | Not Supported |
| Commercial Temperature Range | 0 to 70℃(32 to 158°F) | Bit Error Ratio (BER) | 1E-12 |
| EMC(Electro Magnetic Compatibility) | Supported | MTBF | 217.330 Hour |
| Protocols | IEEE Std 802.3 and 802.3ab,SFP MSA Compliant | Warranty | 3 Years |
| Part No. | Package | Data Rate | Connector Type | Distance | |||
| YXF-GE-T | Copper SFP-T | 10/100/1000M | RJ45 | 100M (UTP-5) | |||
| YXF-GE-TE | Copper SFP-T(IG) | 10/100/1000M | RJ45 | 100M (UTP-5) | |||
| YXF-PP-T-30M | Copper SFP+-T | 100/1000/10000M | RJ45 | 30M (UTP-6) | |||
| YXF-PP-T-80M | Copper SFP+-T | 10000M | RJ45 | 80M (UTP-6) | |||
| YXF-PP-T-100M | Copper SFP+-T | 10000M | RJ45 | 100M (UTP-6) | |||
Product Highlights
Each product is thoroughly checked for peformance and compatibility before delivery to the customer.
Customer centricity and 100% customer satisfaction rate.
All oplical transceivers are tested through dozens of processes before leaving the factory.
Certication
Our company and products are certified to meet industry standards, ensuring top quality and reliability.Trust our expertise for secure, high-performance solutions that you can depend on.
Features
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.Partner with us for the finest fiber optic technology, tailored for diverse market need
Comprehensive Testing Increases Reliability
Six professional transceiver performance tests. Optical Spectrum, Eye Pattern, Bit Error Rate and Temperature Test for Assured Quality.
Q&A
Question And Anwsers
Q:What is your main products?
A:Our main products are optical modules, please send us an inquiry and we will send you a complete catalogue.
Q: Do you provide samples? Is it free or extra?
A: Yes, but we need to charge for samples, we will return sample fee in the later order.
Q:Can I get a lower price? Any discount?
A: Yes, price could be negotiated based on the quantity.Please leave your contact information, we will send you a discount notice later.
Q:What is your MOQ and the lead time?
A: we don’t have MOQ, 1 samples is available.
Normally lead time is 1-3 working days for samples and 3-5 days for mass.
Q:What kinds of customized choices are offered in YXFiber?
A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.
Q:Why should I trust YXFiber compatible transceivers?
A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.
Q: How about shipping?
A: For sample, about 5-7 days by fast delivery ;
For Mass order, bout 15-25 days by sea, air, train shipping.
Q:What is your after-sales service? How about the warranty?
A:All our customers can enjoy the after-sales service for 3 years warranty and lifetime technical support.
Product Manual
