YXF-PP-T-30M
YXFiber
SFP+
10G
-T
30M
RJ-45

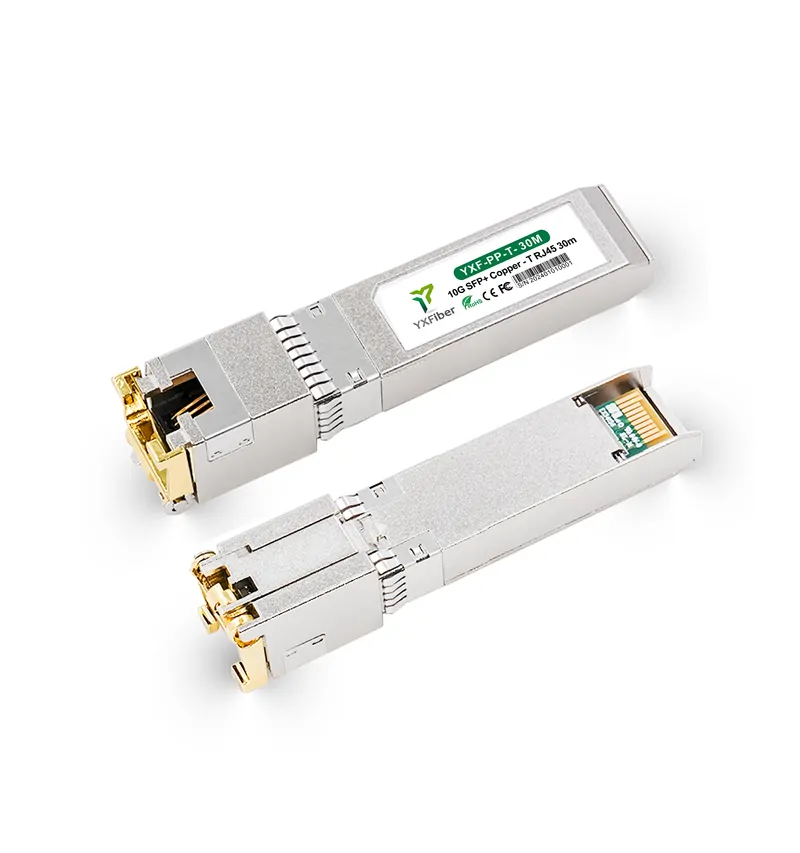

Cisco SFP-10G-T-X Compatible 10GBASE-T SFP+ Transceiver Module (Copper, 30m, RJ-45)
The 10GBASE-T module offers connectivity options at 10Gbps data rates. The module features an SFP+ form factor and an RJ-45 interface, enabling the use of CAT6A/CAT7 cables for connecting to endpoints with embedded 10GBASE-T ports. It supports distances of up to 30 meters, providing a cost-effective solution for intra-rack and inter-rack connections.
This transceiver is compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFP+ MSA. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
| Part Number | YXF-PP-T-30M | Vendor Name | YXFiber |
| Form Factor | SFP+ | Max Data Rate | 10Gbps |
| Power Consumption | ≤2.9W | Cable Distance | 30m@Cat6a/Cat7 or Better |
| Connector | RJ-45 | Cable Type | Copper |
| Special Features | RX_LO5 | DDM/DOM | Not Implemented |
| EMC(Electro Magnetic Compatibility) | Supported | MTBF | 5,000,000 Hours |
| Commercial Temperature Range | 0 to 70℃(32 to 158°F) | Protocols | IEEE 802.3an,IEEE 802.3az,SFP+MSA,SFF-8431 |
| Part No. | Package | Data Rate | Connector Type | Distance | |||
| YXF-GE-T | Copper SFP-T | 10/100/1000M | RJ45 | 100M (UTP-5) | |||
| YXF-GE-TE | Copper SFP-T(IG) | 10/100/1000M | RJ45 | 100M (UTP-5) | |||
| YXF-PP-T-30M | Copper SFP+-T | 100/1000/10000M | RJ45 | 30M (UTP-6) | |||
| YXF-PP-T-80M | Copper SFP+-T | 10000M | RJ45 | 80M (UTP-6) | |||
| YXF-PP-T-100M | Copper SFP+-T | 10000M | RJ45 | 100M (UTP-6) | |||
Cisco SFP-10G-T-X Compatible 10GBASE-T SFP+ Transceiver Module (Copper, 30m, RJ-45)
The 10GBASE-T module offers connectivity options at 10Gbps data rates. The module features an SFP+ form factor and an RJ-45 interface, enabling the use of CAT6A/CAT7 cables for connecting to endpoints with embedded 10GBASE-T ports. It supports distances of up to 30 meters, providing a cost-effective solution for intra-rack and inter-rack connections.
This transceiver is compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFP+ MSA. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
| Part Number | YXF-PP-T-30M | Vendor Name | YXFiber |
| Form Factor | SFP+ | Max Data Rate | 10Gbps |
| Power Consumption | ≤2.9W | Cable Distance | 30m@Cat6a/Cat7 or Better |
| Connector | RJ-45 | Cable Type | Copper |
| Special Features | RX_LO5 | DDM/DOM | Not Implemented |
| EMC(Electro Magnetic Compatibility) | Supported | MTBF | 5,000,000 Hours |
| Commercial Temperature Range | 0 to 70℃(32 to 158°F) | Protocols | IEEE 802.3an,IEEE 802.3az,SFP+MSA,SFF-8431 |
| Part No. | Package | Data Rate | Connector Type | Distance | |||
| YXF-GE-T | Copper SFP-T | 10/100/1000M | RJ45 | 100M (UTP-5) | |||
| YXF-GE-TE | Copper SFP-T(IG) | 10/100/1000M | RJ45 | 100M (UTP-5) | |||
| YXF-PP-T-30M | Copper SFP+-T | 100/1000/10000M | RJ45 | 30M (UTP-6) | |||
| YXF-PP-T-80M | Copper SFP+-T | 10000M | RJ45 | 80M (UTP-6) | |||
| YXF-PP-T-100M | Copper SFP+-T | 10000M | RJ45 | 100M (UTP-6) | |||
