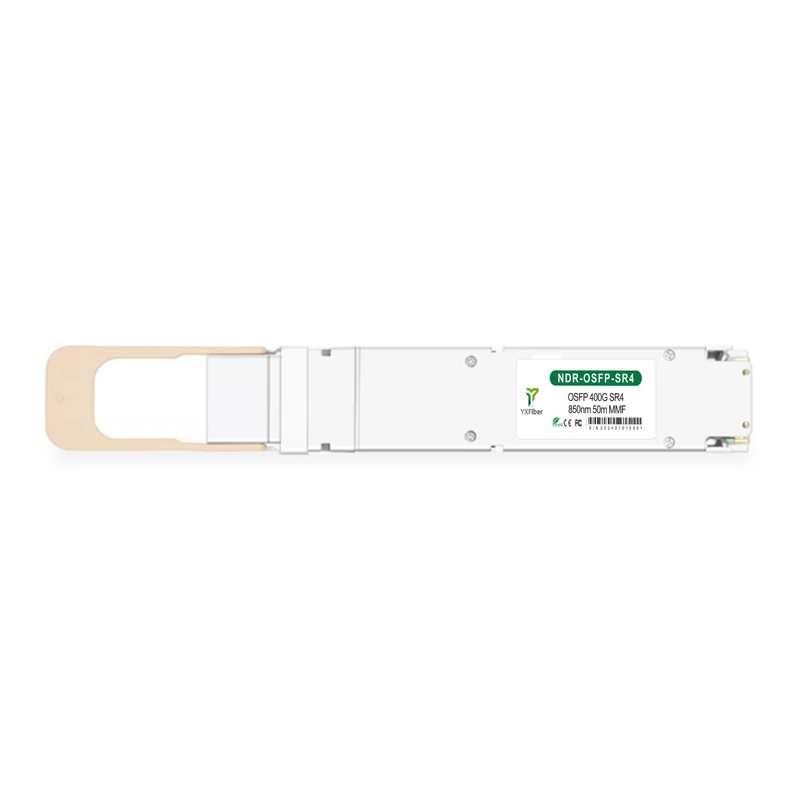

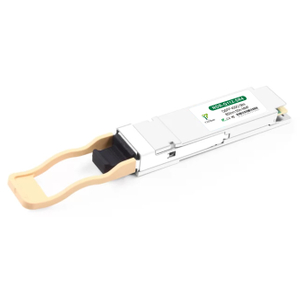

InfiniBand MMA4Z00-NS400 Compatible OSFP 400G SR4 Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF NDR Optical Transceiver Module

Features：
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Provide Professional Compatibility and Parameter Test Reports.
  • 30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.
Availability:
Quantity:
Inquire

  • NDR-OSFP-SR4

  • YXFiber

  • OSFP

  • NDR

  • SR4

  • 50M

  • MPO-12 APC

InfiniBand MMA4Z00-NS400 Compatible OSFP 400G SR4 Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF NDR Optical Transceiver Module

InfiniBand MMA4Z00-NS400 is an InfiniBand (IB) and Ethernet (ETH) 400Gb/s, Single-port, OSFP, SR4 multimode parallel transceiver using a single, 4-channel MPO-12/APC optical connector.When linked to 1:2 splitter fiber cable split end has only 2 channels and will activate only 2-channels in the 400G transceiver automatically creating a 200G speed and reducing power.

Form Factor
OSFP
Distance
30m (OM3) /50m (OM4)
Wavelength
850nm
Connector
MPO-12/APC
Power Consumption
≤9W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation（electrical）
4x106.25Gb/s PAM4
Modulation（Optical ）
4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Application
IB NDR


download NDR-OSFP-SR4.pdf
