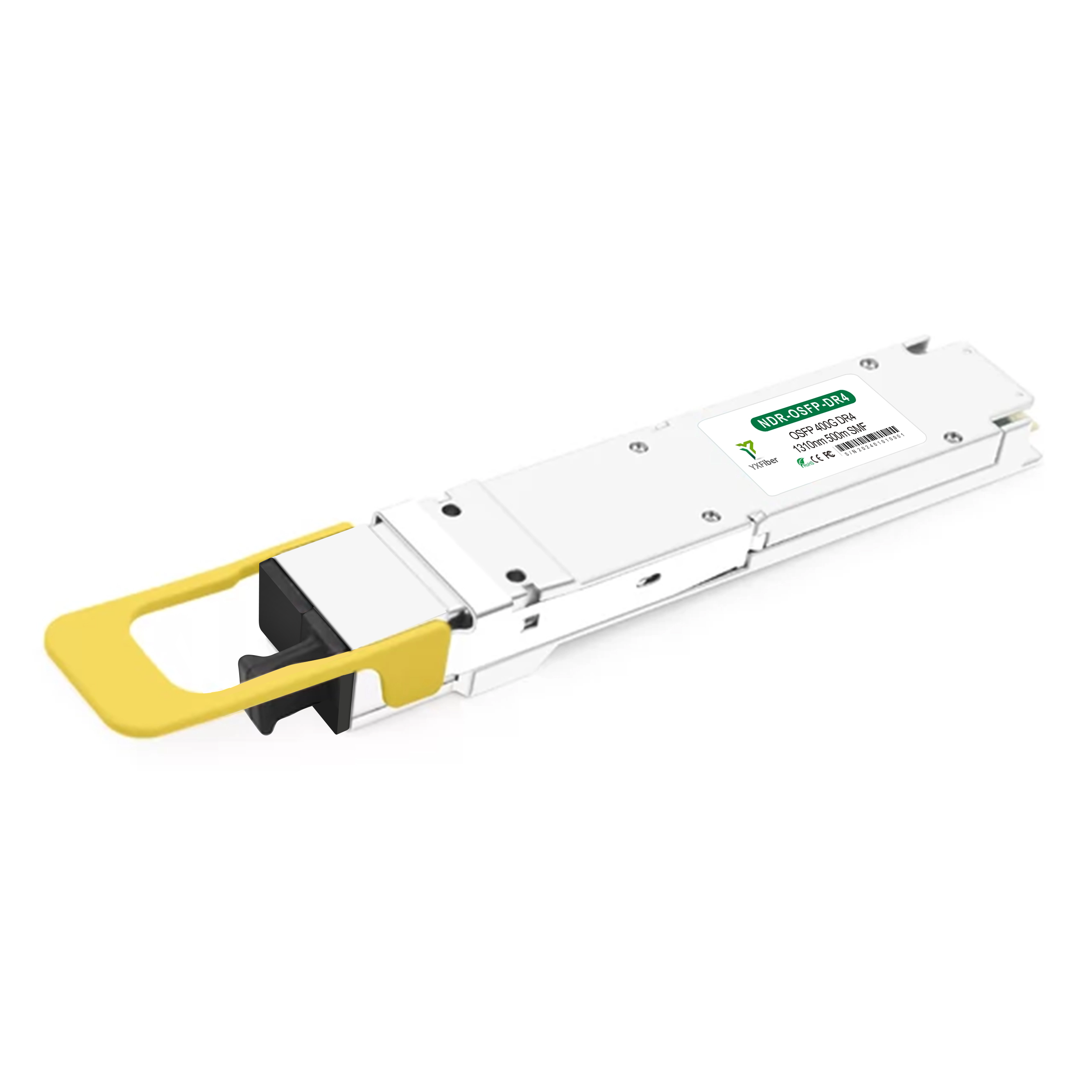

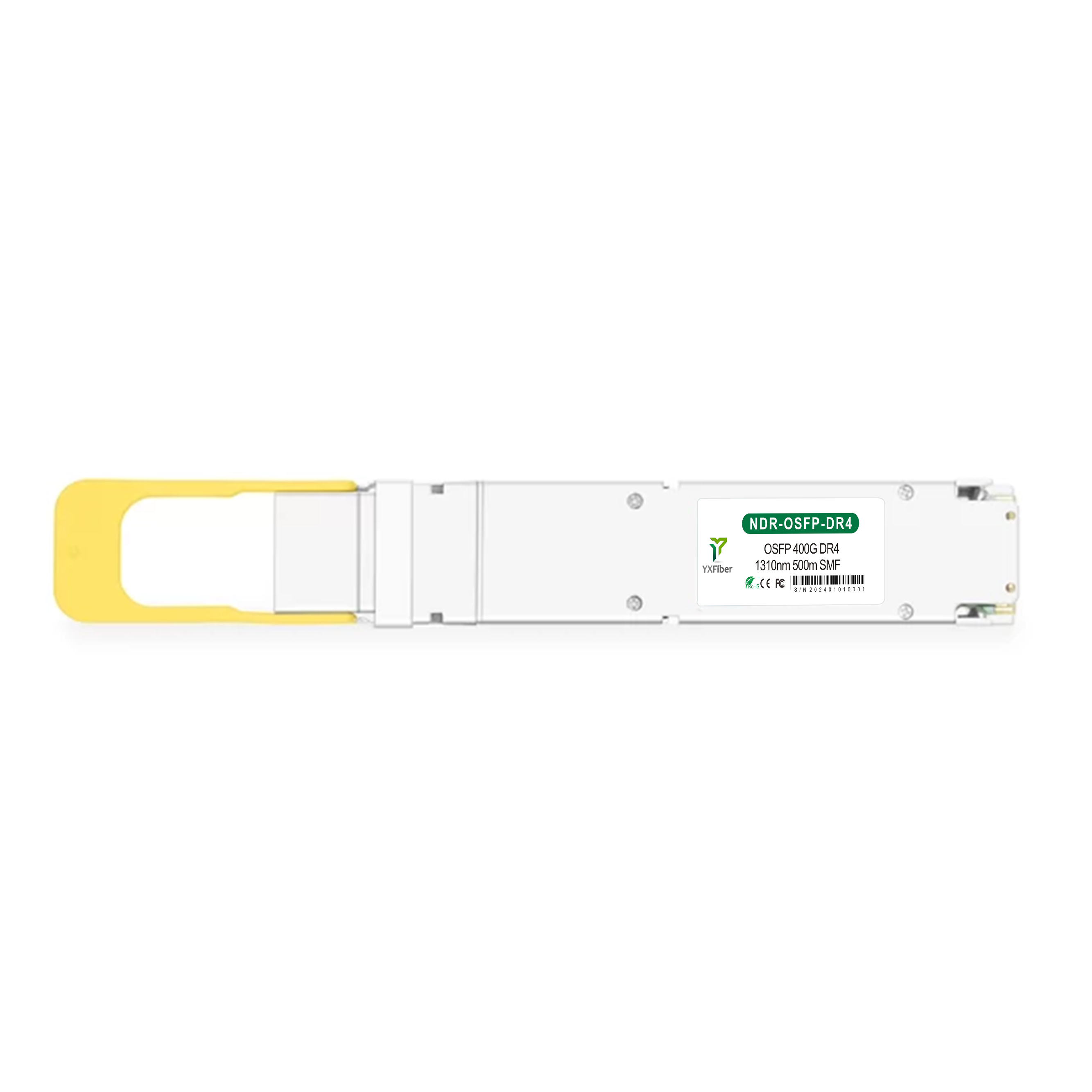

InfiniBand MMS4X00-NS400 Compatible OSFP 400G DR4 Flat Top PAM4 1310nm 500m DOM MPO-12/APC SMF NDR Optical Transceiver Module

InfiniBand MMS4X00-NS400 Compatible OSFP 400G DR4 Flat Top PAM4 1310nm 500m DOM MPO-12/APC SMF NDR Optical Transceiver Module

Features：

Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
DDM(Digital Diagnostic Monitoring) Supported.
Provide Professional Compatibility and Parameter Test Reports.
30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.

Quantity:
Availability:





Inquire

Model:
NDR-OSFP-DR4
Brand:
YXFiber
Form Factor:
OSFP
Data Rate:
NDR
Model:
DR4+
Distance:
500M
Connector:
MPO-12 APC

Product Description

InfiniBand MMS4X00-NS400 Compatible OSFP 400G DR4 Flat Top PAM4 1310nm 500m DOM MPO-12/APC SMF NDR Optical Transceiver Module

InfiniBand MMS4X00-NS400 Transceiver is a high performance, cost effective module for optical data communication applications supporting 400G InfiniBand and Ethernet. The MMS4X00-NS400 is designed to operate in switch and router applications supporting OSFP MSA compliant traffic for up to 100m links.

Specifications

Form Factor

OSFP

Distance

500m

Wavelength

1310nm

Connector

MPO-12/APC

Power Consumption

≤9W

Transmitter

EML

Receiver

Media

SMF

Modulation（electrical）

4x106.25Gb/s PAM4

Modulation（Optical ）

4x106.25Gb/s PAM4

Case Temperature(℃)

0~70°C(32 to 158°F)

Application

IB NDR

Connectivity Solutions

Product Manual

NDR-OSFP-DR4.pdf
