InfiniBand NDR-OSFP-O2AC004 Compatible 800G NDR OSFP Finned Top to 2 x 400G OSFP Flat Top Active Direct Attach Copper Breakout Cable

800G NDR OSFP DAC
Length:
4m (13ft)
5m (16ft)
Availability:
Quantity:
Inquire

  • NDR-OSFP-O2AC004

  • YXFiber

  • NDR-OSFP-O2AC004

  • OSFP

  • 800G

  • DAC

InfiniBand NDR-OSFP-O2AC004 Compatible 800G NDR OSFP Finned Top to 2 x 400G OSFP Flat Top Active Direct Attach Copper Breakout Cable

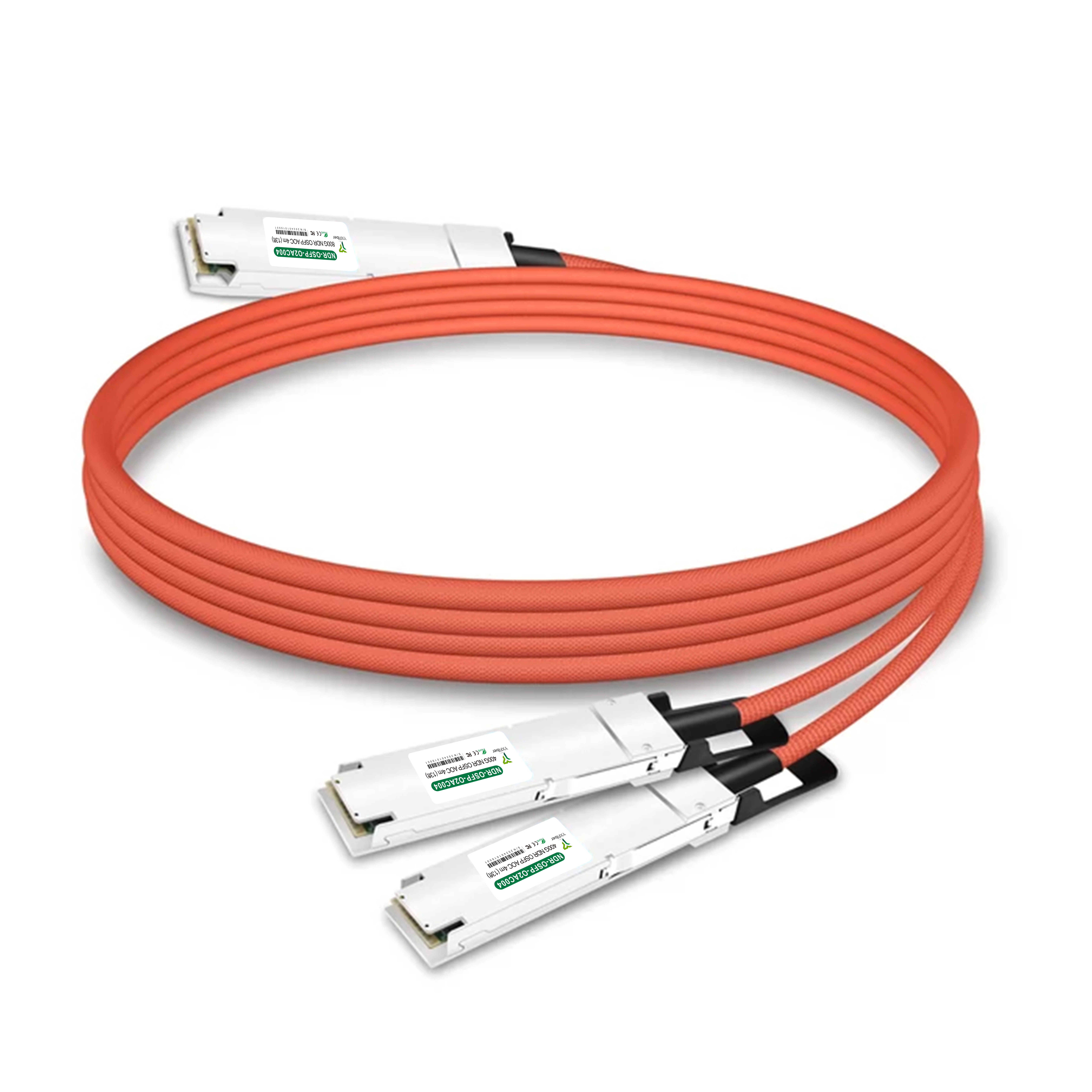

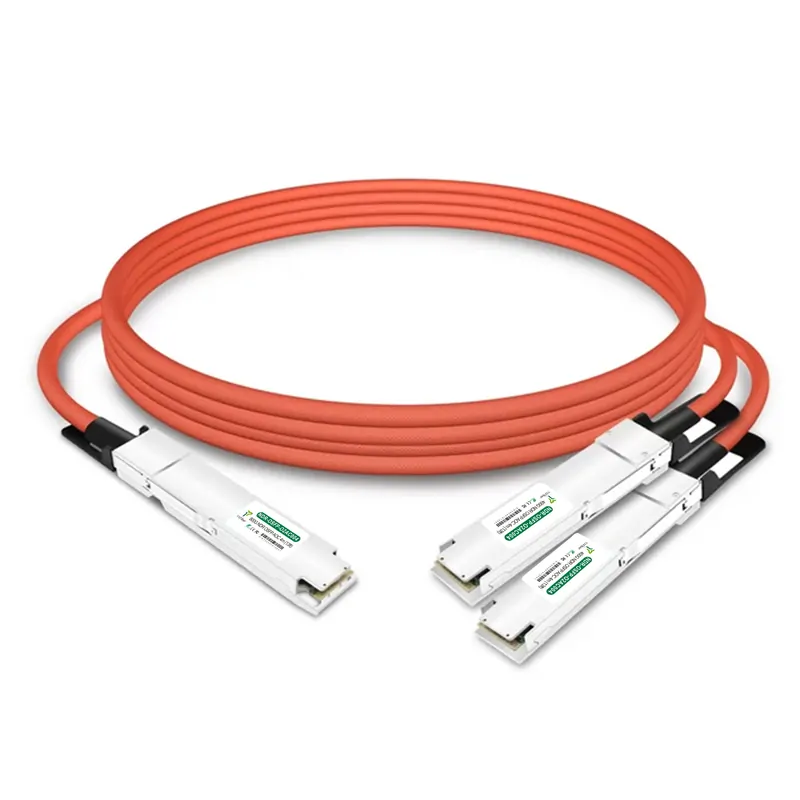

InfiniBand NDR-OSFP-O2AC004 is an 800Gb/s twin-port OSFP (Octal Small Form-factor Pluggable) to 2x400Gb/s OSFP Active Copper Cable (ACC) dual breakout (aka splitter) cable. The ACC uses 8-channels of 100G-PAM4 modulation and has lengths of 4 and 5-meters. ACC cables are the second lowest-cost, low-latency, low-power consuming, high-speed links next to passive DACs due to their simplicity of design and minimal components.

Form Factor
OSFP
Cable Length
4m~5m
Wire AWG
26AWG~30AWG
Commercial Temperature
0~70°C(32 to 158°F)
Jacket Material
PVC
Power Consumption
<1.5W(switch end) <0.6W(HCA ends)
Minimum Bend Radius
10x OD
Application
IB NDR
