YXF-Q56-S31M-05D
YXFiber
QSFP56
200G
SR4
100M
MPO-12 UPC

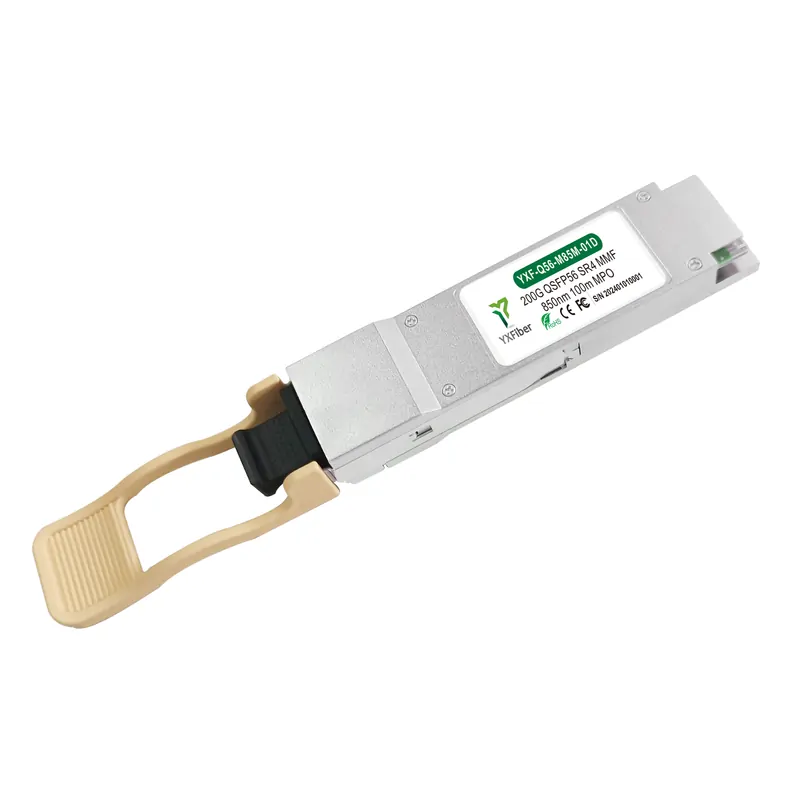

Compatible 200GBASE-SR4 QSFP56 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)
The QSFP-200G-SR4 Compatible QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.
The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, CMIS Rev 4.0 & SFF-8665 standards. Digital diagnostics functions are available via the I2C interface. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.
| Part Number | YXF-Q56-S31M-05D | Vendor Name | YXFiber |
| Form Factor | QSFP56 | Max Data Rate | 200Gbps |
| Wavelength | 850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
| Connector | MTP/MPO-12 UPC | Media | MME |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| TX Power | -3-3dBm | Receiver Sensitivity | -6.5dBm |
| Power budget | 3.5dBm | Receiver Overload | 5dBm |
| Typical Power Consumption | ≤5W | Extinction Ratio | 3dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70℃(32 to 158°F) |
| CDR(Clock andData Recovery) | TX8 RX Built-in CDF | Inbuilt FEC | No |
| Protocols | IEEE 802.3bs,QSFP56 MSA,SFF-8665,CMIS Rev4.0 | Warranty | 3 Years |
