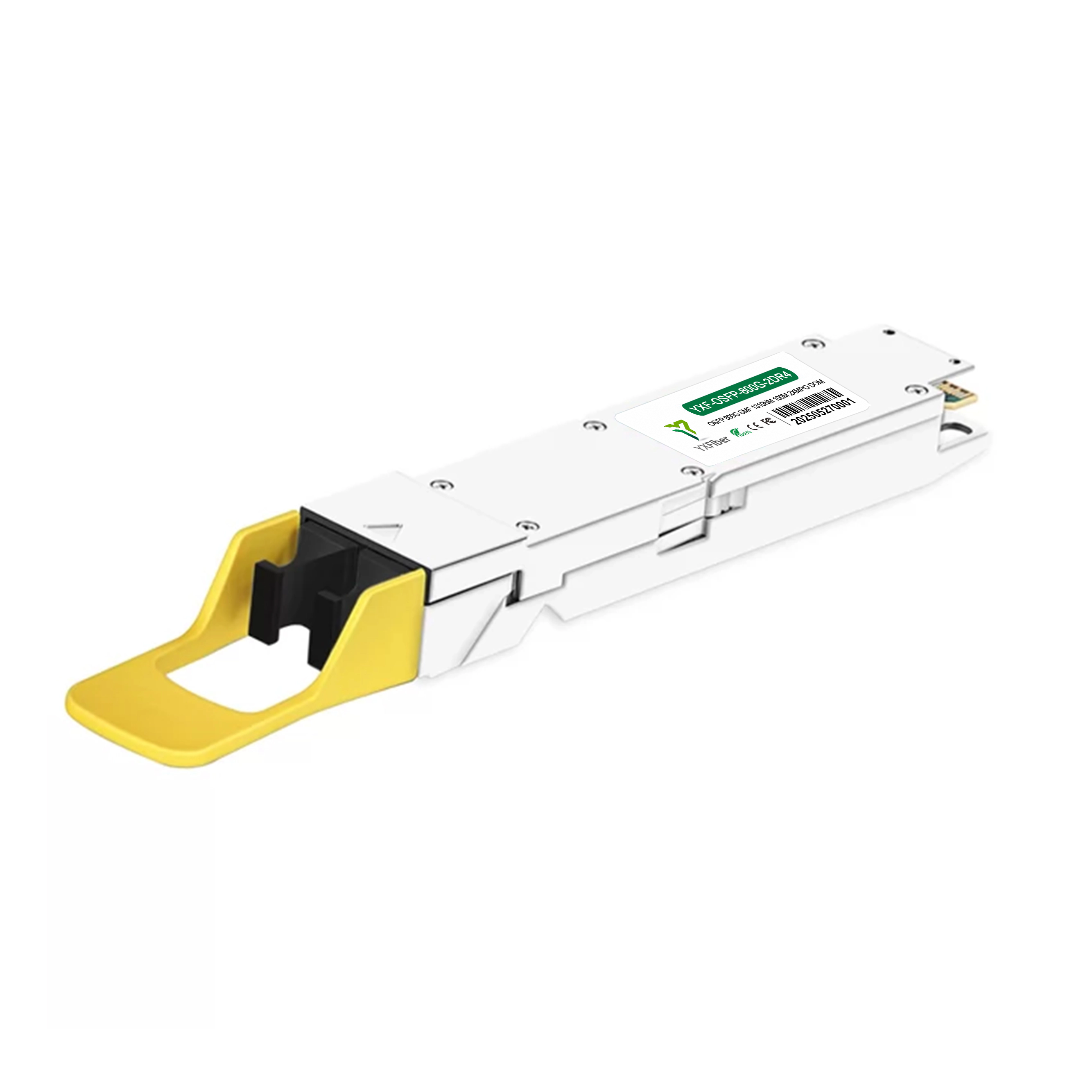

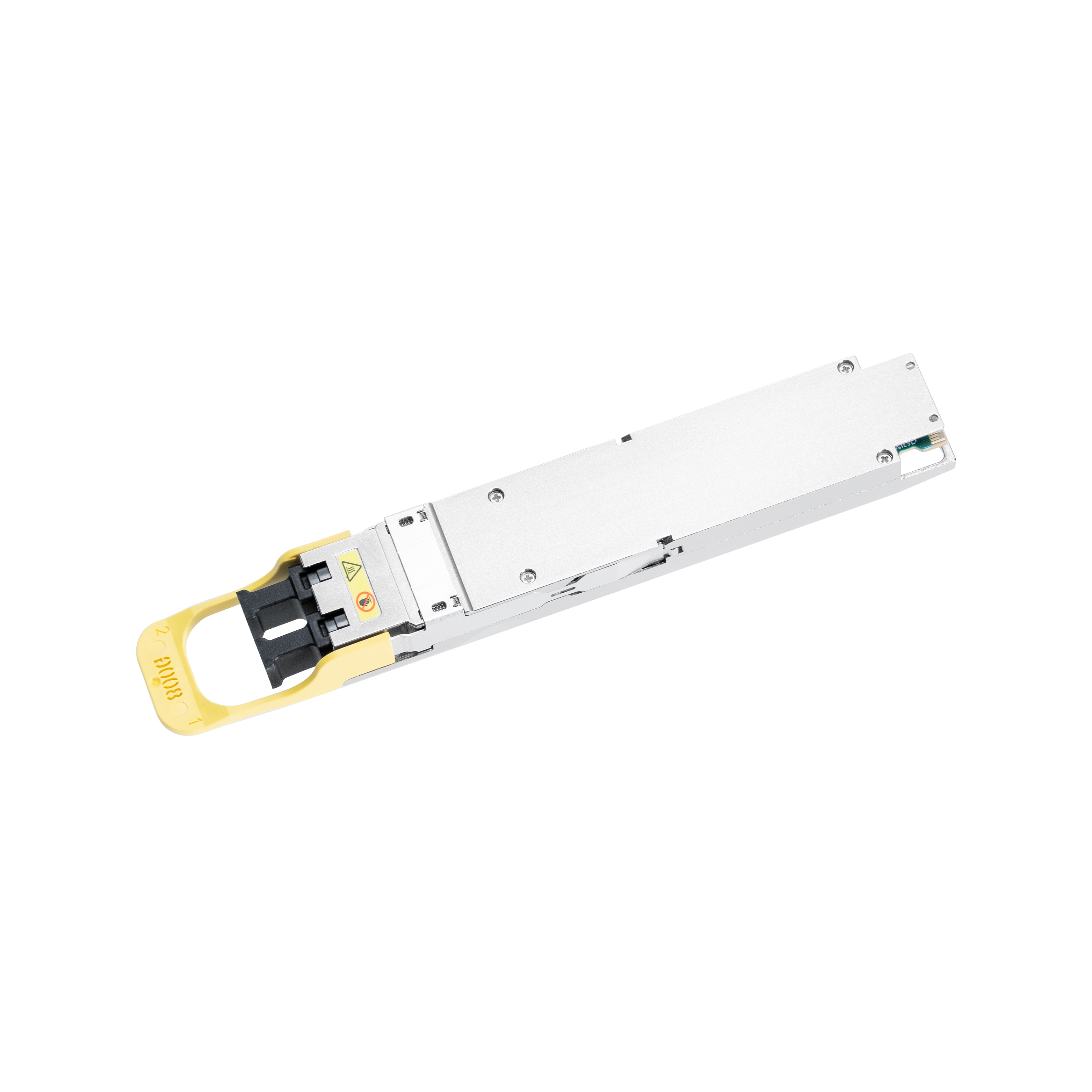

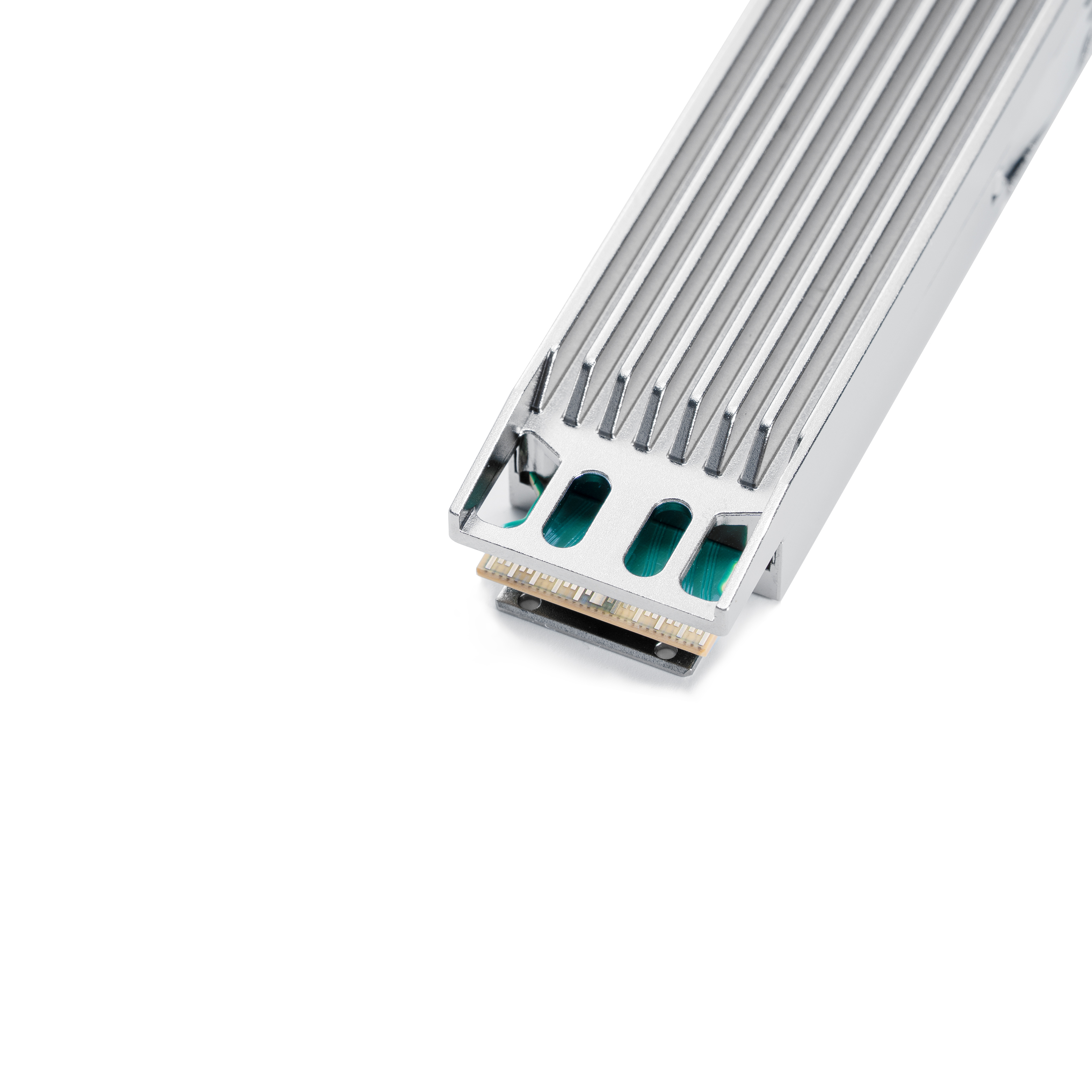

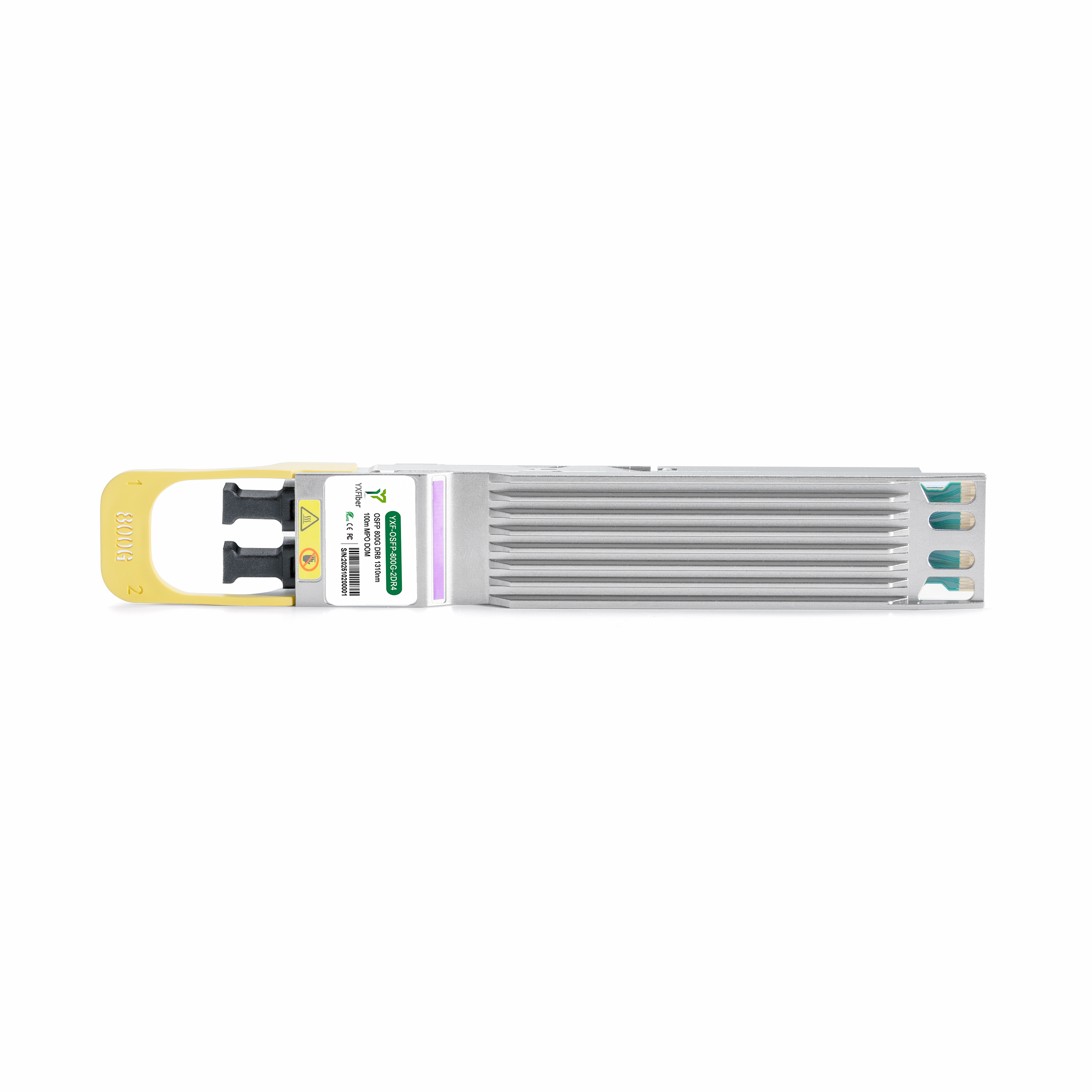

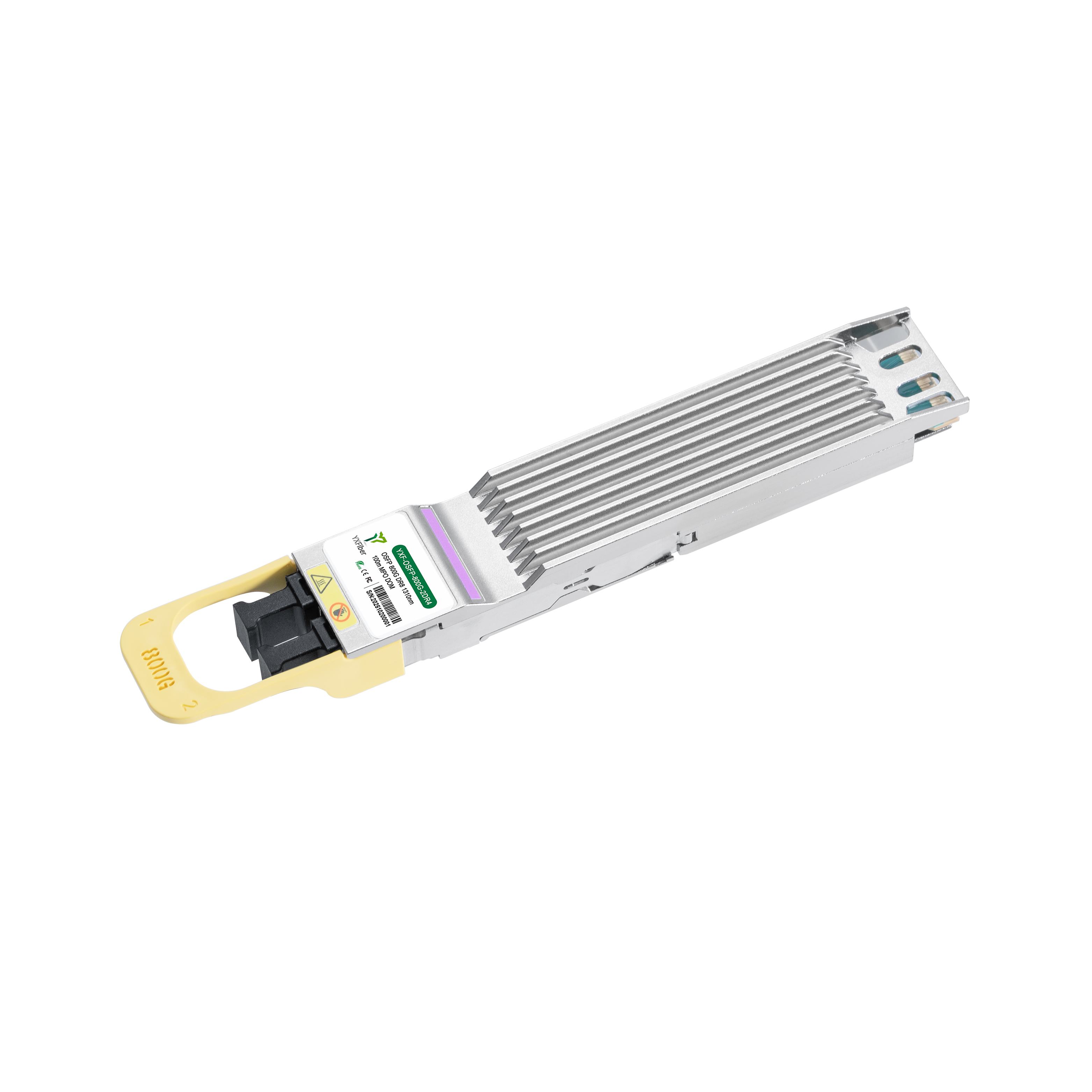

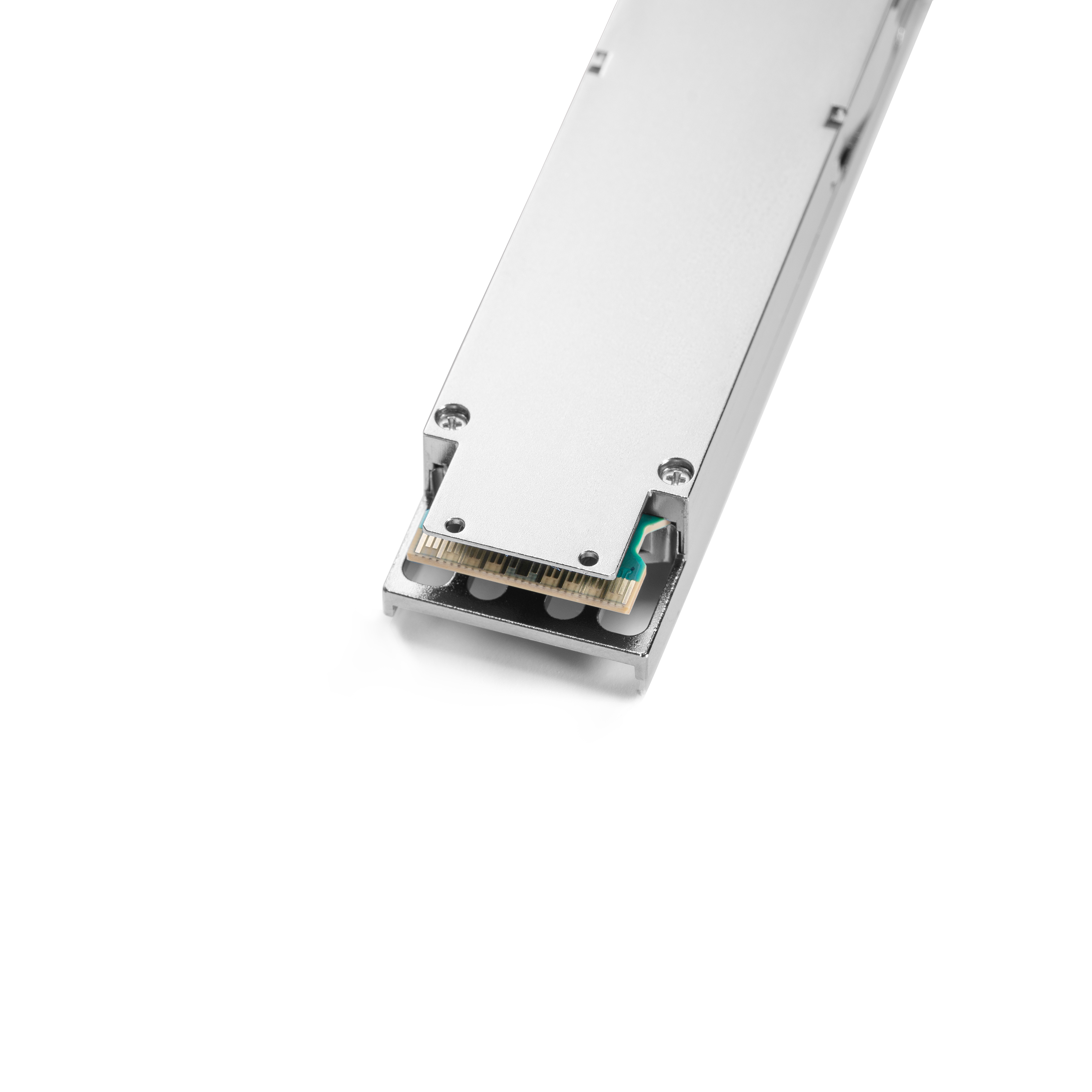

800GBASE-2xDR4 OSFP PAM4 1310nm 100m DOM Dual MTP/MPO-12 APC SMF Transceiver Module Finned Top

Features：
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Provide Professional Compatibility and Parameter Test Reports.
  • 30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.
Availability:
Quantity:
Inquire

  • YXF-OSFP-800G-2DR4

  • YXFiber

  • OSFP

  • 800G

  • 2xDR4

  • 100M

  • MPO-12 APC

  • Cisco, Mikrotik, HPE, TP LINK, HP, D-Link, Juniper, Ubiquiti, Huawei, Dell, Aruba, Finisar, ZTE, lntel, Avago, Arista, Mellanox, Brocade, QNAP, Fortinet

800GBASE-2xDR4 OSFP PAM4 1310nm 100m DOM Dual MTP/MPO-12 APC SMF Transceiver Module Finned Top


The YXFiber’s  YXF-OSFP-800G-2DR4 optical transceiver module is designed for 800GBASE throughput, transmission distances up to 500m, and single-mode fiber (SMF) via dual MTP/ McO-12 connectors. The YXF-OSFP-800G-2DR4 module can convert 8 channels of 106.25Gb/s electrical data into 8 channels of 106.25Gb/s optical signals. Similarly, it converts the 8-channel 106.25Gb/s optical signal into 8-channel electrical data output at the receiving end. It is designed to withstand the widest range of external operating conditions, including temperature, humidity and electromagnetic interference.


Form FactorTwin-port OSFPDistance100m

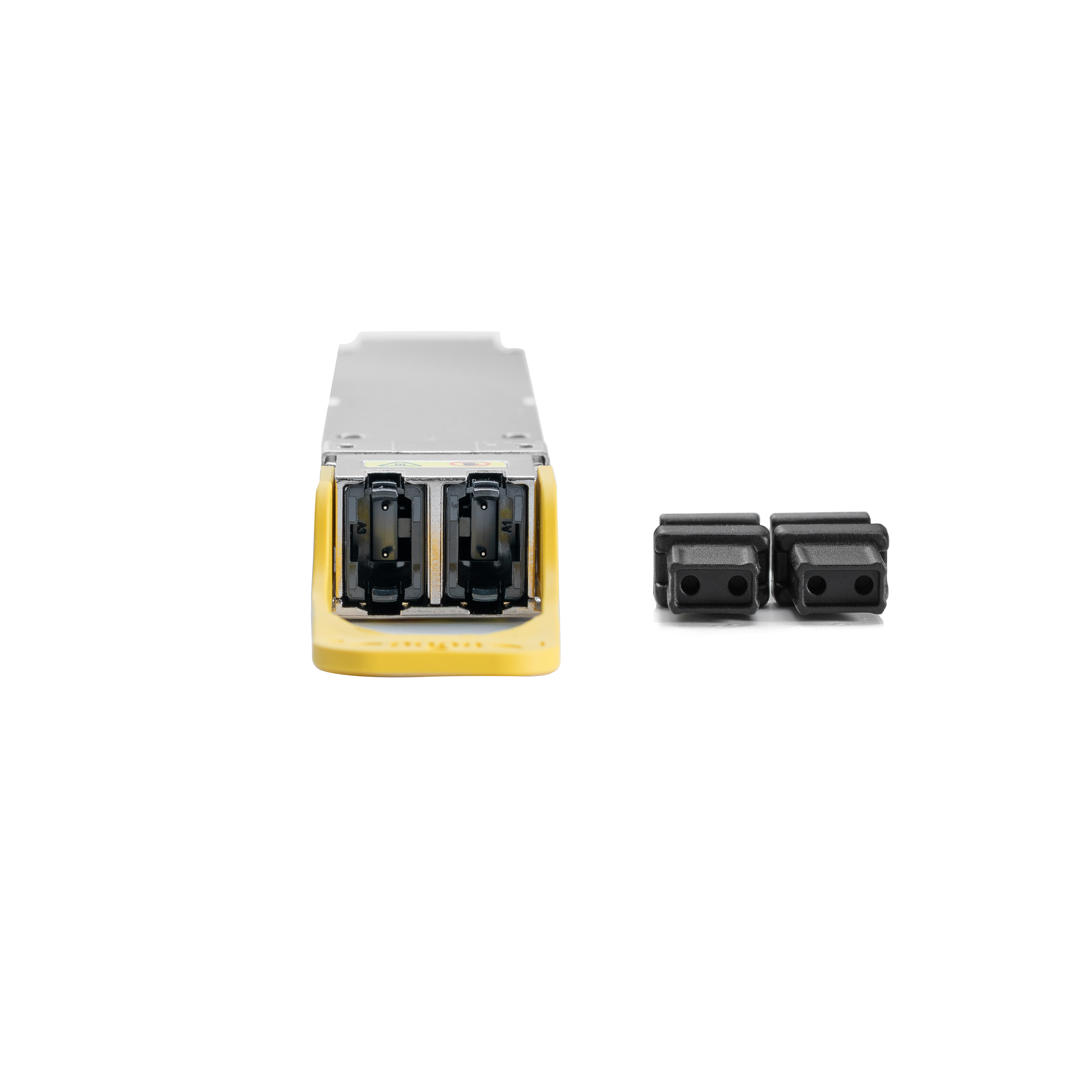

Wavelength1310nmConnectorTwo MPO-12/APC
Power Consumption≤16WTransmitterEML
ReceiverPINMediaSMF
Modulation(electrica8x106.25Gb/s PAM4Modulation(Optical )Two ports 4x106.25Gb/s PAM4
Case Temperature(°C)0 to 70°C (32 to 158°F)Warranty3 Years


Product Highlights

Each product is thoroughly checked for peformance and compatibility before delivery to the customer.

Customer centricity and 100% customer satisfaction rate.

All oplical transceivers are tested through dozens of processes before leaving the factory.


07171715 _00



Certication

Our company and products are certified to meet industry standards, ensuring top quality and reliability.Trust our expertise for secure, high-performance solutions that you can depend on.


Certificate






Features

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.Partner with us for the finest fiber optic technology, tailored for diverse market need

our advantage


Comprehensive Testing Increases Reliability

    Six professional transceiver performance tests. Optical Spectrum, Eye Pattern, Bit Error Rate and Temperature Test for Assured Quality.

quality test

包装

Question And Anwsers


Q:What is your main products?

A:Our main products are optical modules, please send us an inquiry and we will send you a complete catalogue.


Q: Do you provide samples? Is it free or extra?

A: Yes, but we need to charge for samples, we will return sample fee in the later order.


Q:Can I get a lower price? Any discount?

A: Yes, price could be negotiated based on the quantity.Please leave your contact information, we will send you a discount notice later.


Q:What is your MOQ and the lead time?

A: we don’t have MOQ, 1 samples is available.

Normally lead time is 1-3 working days for samples and 3-5 days for mass.


Q:What kinds of customized choices are offered in YXFiber?

A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solut

download YXF-OSFP-800G-2DR4.pdf
