QSFP28-100G-SWDM4
YXFiber
QSFP28
100G
Duplex LC
Specifications

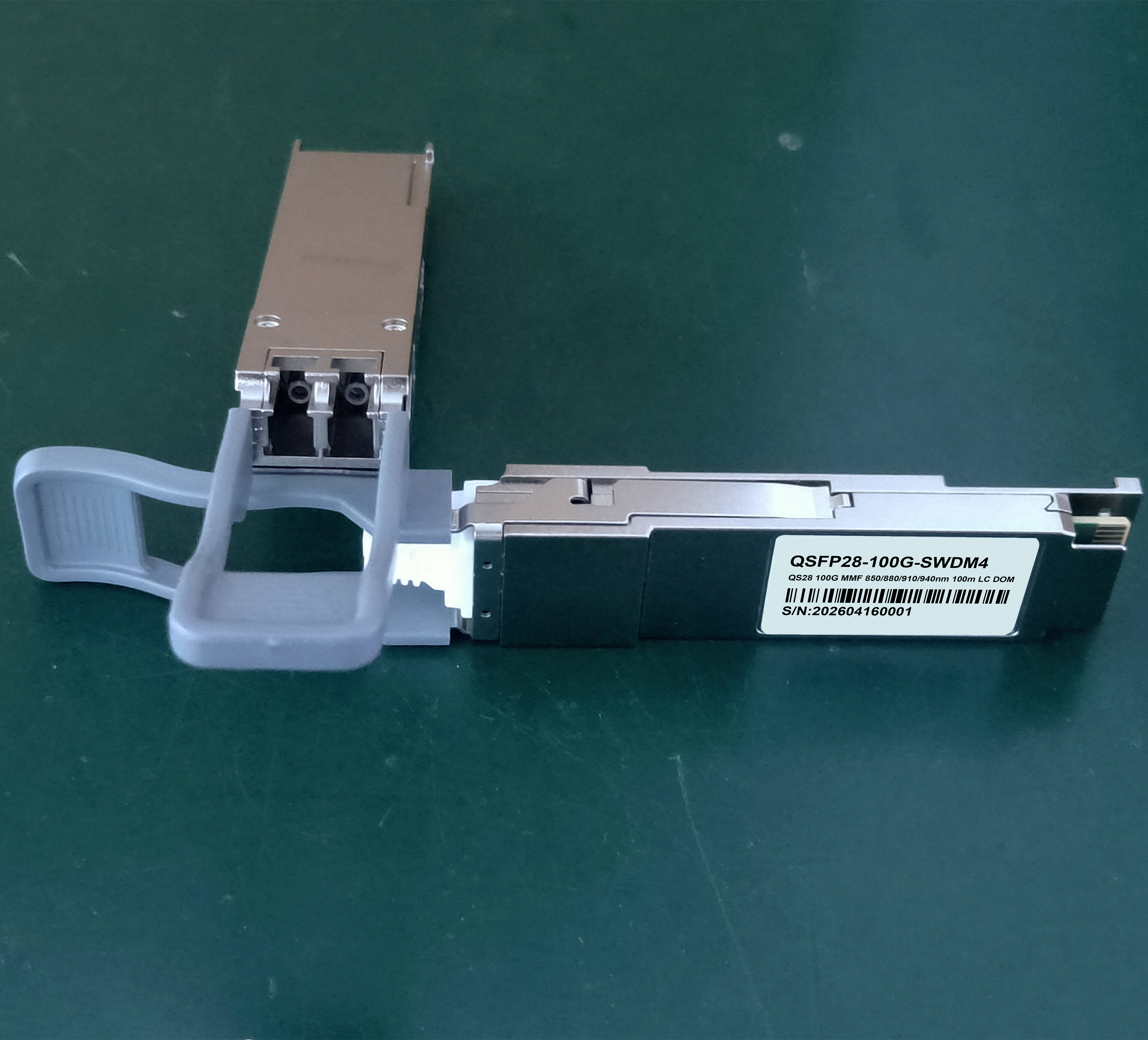

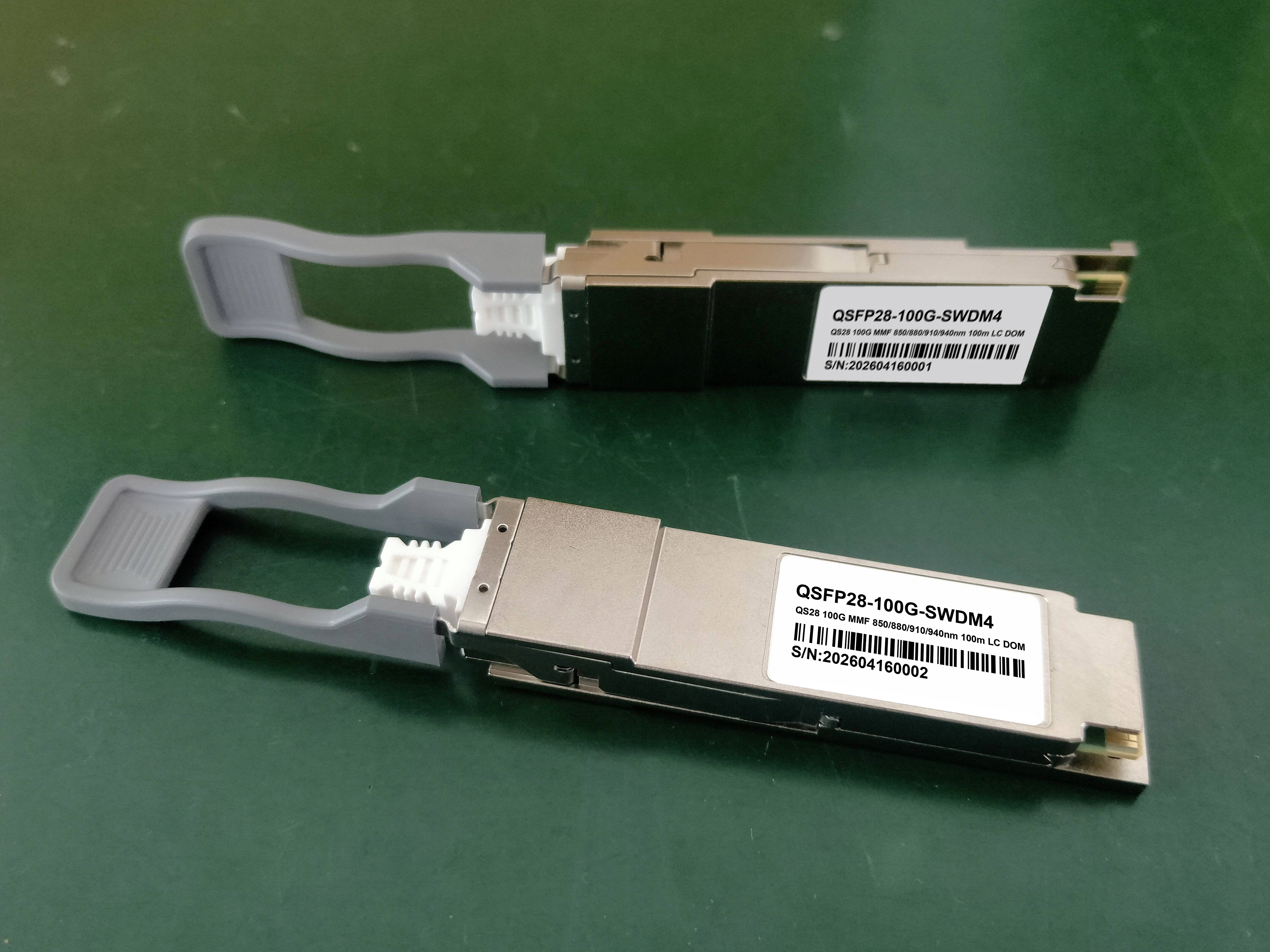

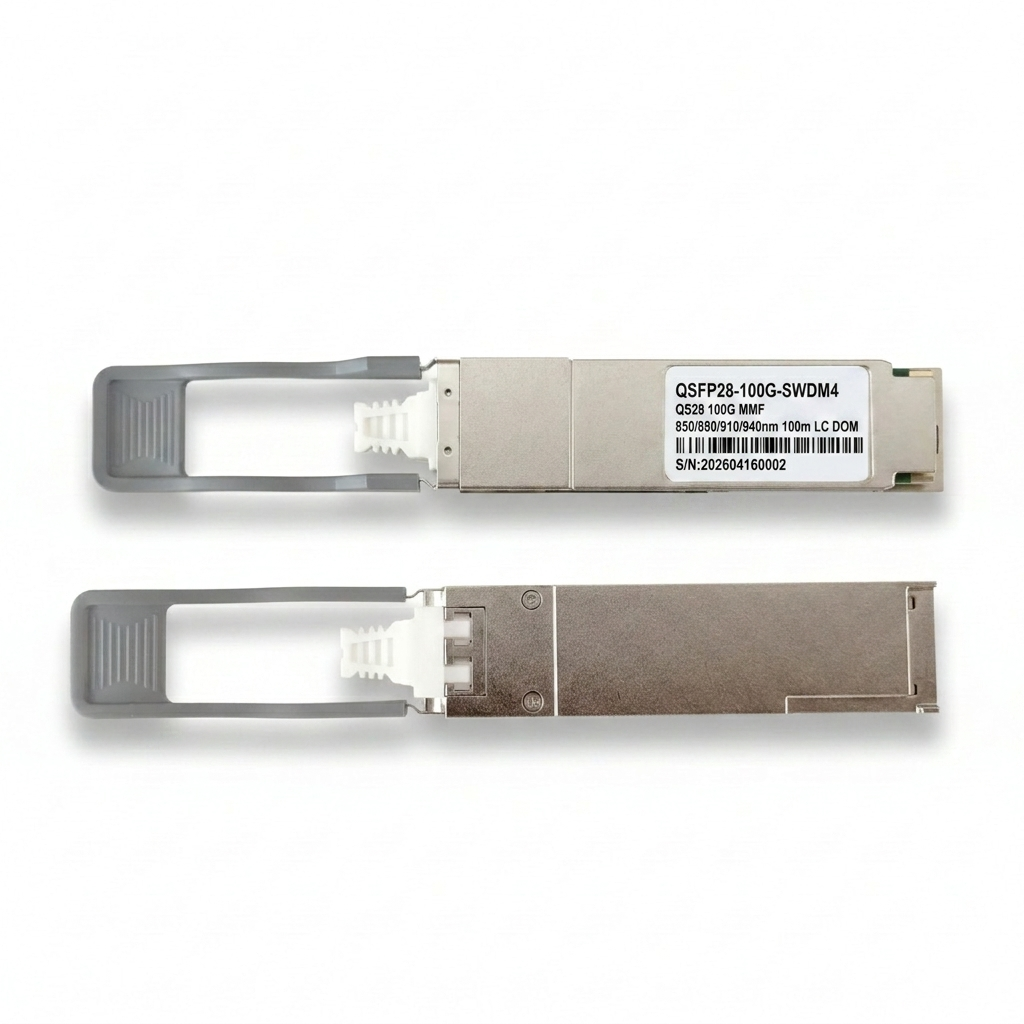

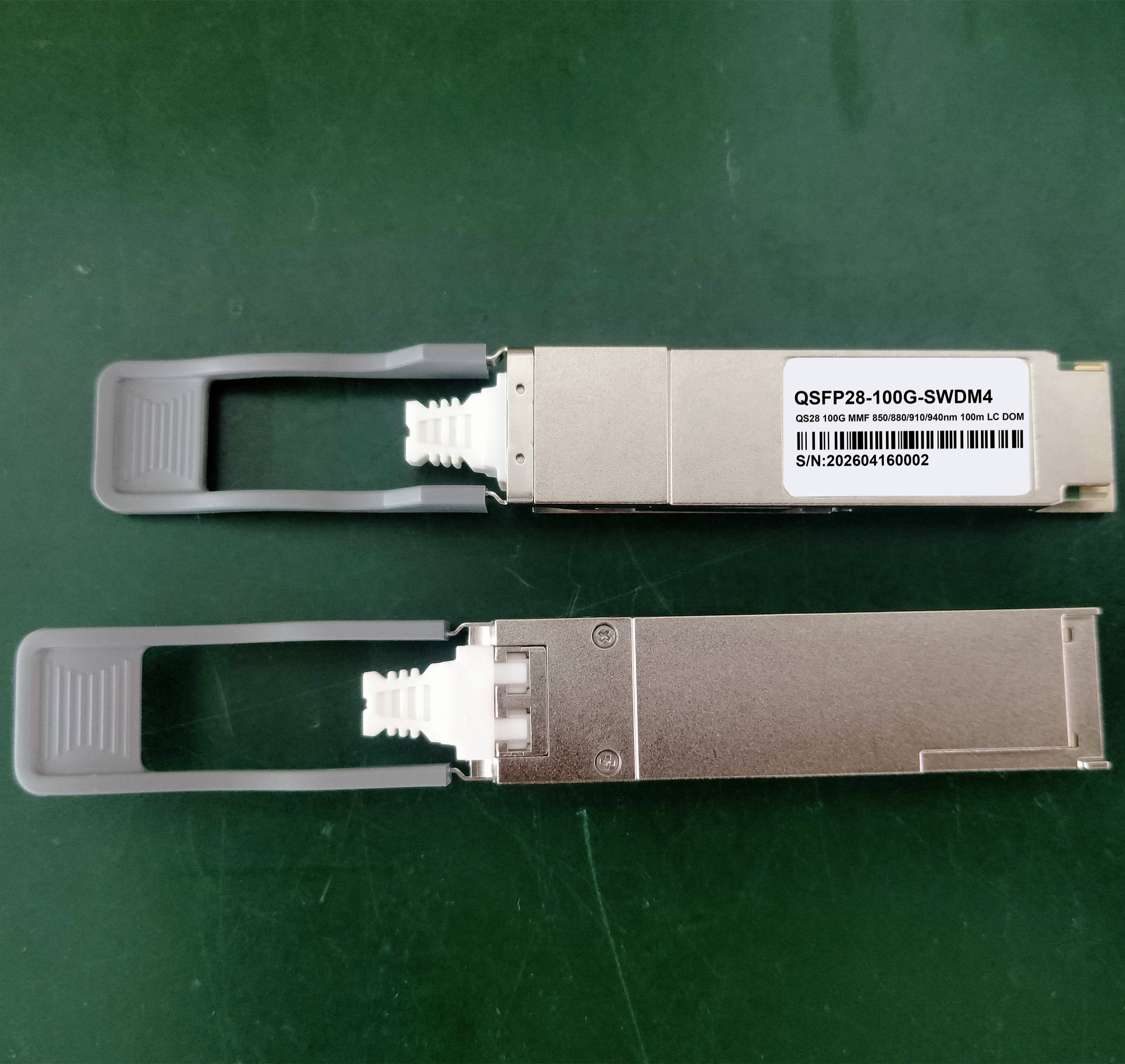

100G QSFP28 SWDM4 850nm-940nm 100m/150m Duplex LC MMF Optical Transceiver Module for Ethernet and Data Center
YXFiber's QSFP28-100G-SWDM4 transceiver is designed for 100G Ethernet links over duplex multimode fiber. It offers four channels operating in the 850-940nm wavelength range, with each channel providing a transmission rate of 25Gbps, for a total transmission rate of 100Gbps. Utilizing a VCSEL laser and PIN receiver, the transceiver delivers stable and efficient Ethernet connectivity. It features built-in digital diagnostics accessible via an I2C interface and complies with the QSFP28 MSA specification.
| Part Number | QSFP28-100G-SWDM4 | Vendor Name | YXFiber |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps |
| Wavelength | 850nm/880//900/940nm | Max Cable Distance | 75m@OM3/100m@OM4/150m@OM5 |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6-4dBm | Minimum Receiver Power | -9.5dBm |
| Power budget | 4dB | Receiver Overload | 3.4dbm |
| Power Consumption | ≤3.5W | Commercial Temperature Range | 0 to 70℃(32 to 158°F) |
| DDM/DOM | Supported | Bit Error Ratio(BER) | 5E-5(Pre-FEC) |
| Inbuilt FEC | No | Protocols | QSFP28 MSA and IEEE 802.3bm CAUI-4 |
| Application | Data Center,100GBASE Ethernet | Warranty | 3 years |
Product Highlights
Each product is thoroughly checked for peformance and compatibility before delivery to the customer.
Customer centricity and 100% customer satisfaction rate.
All oplical transceivers are tested through dozens of processes before leaving the factory.
Certication
Our company and products are certified to meet industry standards, ensuring top quality and reliability.Trust our expertise for secure, high-performance solutions that you can depend on.
Features
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.Partner with us for the finest fiber optic technology, tailored for diverse market need.
Comprehensive Testing Increases Reliability
Six professional transceiver performance tests. Optical Spectrum, Eye Pattern, Bit Error Rate and Temperature Test for Assured Quality.
Q&A
Question And Anwsers
Q:What is your main products?
A:Our main products are optical modules, please send us an inquiry and we will send you a complete catalogue.
Q: Do you provide samples? Is it free or extra?
A: Yes, but we need to charge for samples, we will return sample fee in the later order.
Q:Can I get a lower price? Any discount?
A: Yes, price could be negotiated based on the quantity.Please leave your contact information, we will send you a discount notice later.
Q:What is your MOQ and the lead time?
A: we don’t have MOQ, 1 samples is available.
Normally lead time is 1-3 working days for samples and 3-5 days for mass.
Q:What kinds of customized choices are offered in YXFiber?
A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.
Q:Why should I trust YXFiber compatible transceivers?
A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.
Q: How about shipping?
A: For sample, about 5-7 days by fast delivery ;
For Mass order, bout 15-25 days by sea, air, train shipping.
Q:What is your after-sales service? How about the warranty?
A:All our customers can enjoy the after-sales service for 3 years warranty and lifetime technical support.
