YXF-Q28-S31L-100D
YXFiber
QSFP28
100G
ZR4
100KM
Duplex LC

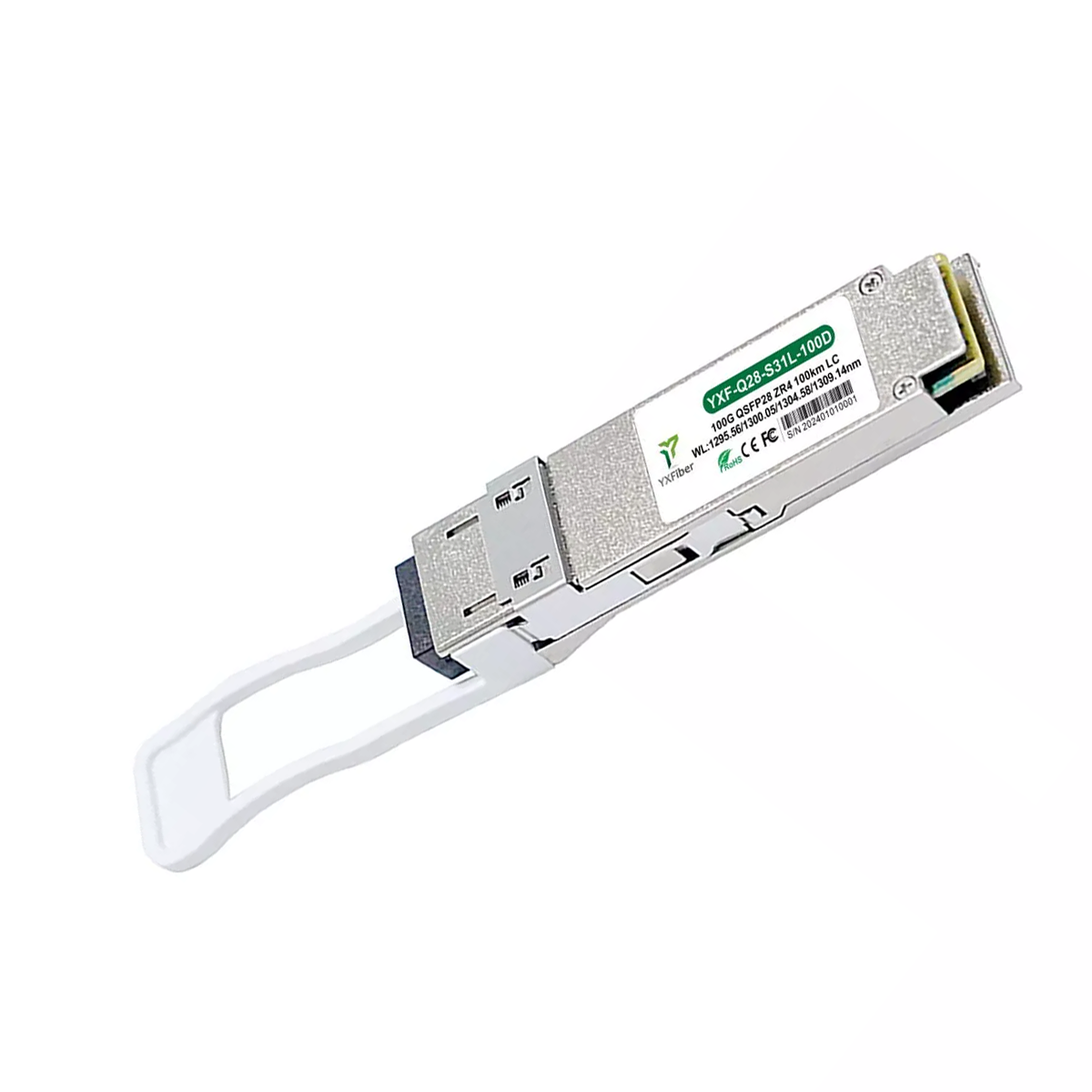

Compatible 100GBASE-ZR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 100km, LC, DOM)
The compatible QSFP28 optical transceiver module is designed for use in 100GBASE Ethernet throughput up to 100km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths multiplexing and demultiplexing of the four wavelengths are managed within the device. This transceiver is compliant with IEEE 802.3, RoHS 10 and SFF-8636. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.
With these features, this easy-to-install, hot-swappable transceiver is suitable to be used in various applications, such as service providers, data centers and enterprises needing long reach connectivity.
| Part Number | YXF-Q28-S31L-100D | Vendor Name | YXFiber |
| Form Factor | QSFP28 | Max Data Rate | 100Gbps |
| Wavelength | 1310nm | Max Cable Distance | 100km |
| Connector | DuplexLC | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | 2-6dBm | RX Power | 30--7 dBm |
| Power Consumption | ≤6W | Extinction Ratio | >6dB |
| CDR(Clock and Data Recovery) | TX&RX Built-in CDR | Host FEC | Supported |
| Packaging Technology | BOX Packaging | Modulation Format | 4x 25G NRZ |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70℃(32 to 158F) |
| Core Size | 9um/125um | Protocols | QSFP28 MSA,IEEE 802.3,RoHS 10,SFF-8636 |
