1. Basic Definition of 10G SFP+ Modules
2. Technical Principles
2.1 Internal Core Components
2.2 Performance Benchmark Indicators
3. Five Core Factors Affecting 10G SFP+ Performance
3.1 Technical Parameters and Signal Integrity
3.2 Environmental Conditions
3.3 Compatibility and Equipment Matching
3.4 Transmission Media and Link Quality
3.5 System Heat Dissipation and Power Consumption Management
4. Application Scenarios
4.1 Data Center Internal Connections
4.2 Enterprise Network Backbone
4.3 Metropolitan Area Network and Carrier Links
5. How to Choose the Right 10G SFP+ Module
5.1 Confirm Distance and Media
5.2 Verify Equipment Compatibility
5.3 Assess Environmental Requirements
5.4 Focus on Management Functions
5.5 Quality and Warranty
Introduction In 10G Ethernet communication, the 10G SFP+ optical module is the most fundamental layer and the relay station for optical signal transmission, making it crucial for the construction of data centers, enterprise networks, and home networks. In the 21st century, although higher speeds are constantly emerging, 10G SFP+ optical modules remain the dominant technology in traditional networks with lower bandwidth requirements due to their low cost, excellent performance, low power consumption, and long lifespan.
10G SFP+ optical module is a general term referring to a type of optical module using SFP+ (Small Form-factor Pluggable Plus) packaging and operating at 10G. They support hot-swapping and can convert short-distance electrical signals on switches or routers into long-distance optical signals, enabling flexible data communication over ultra-long distances. Compared to 1G SFP optical modules, the core advantage of 10G SFP+ optical modules lies in their support for speeds up to 10.3125Gbps, a tenfold increase in bandwidth. This easily handles the high-speed transmission demands brought about by network upgrades and performs far better than 1G SFP optical modules when facing sudden surges in traffic, without causing network congestion or impacting services.
The advantages of 10G SFP+ optical modules go beyond these. Physically, they offer unparalleled flexibility compared to network cables. Depending on the environment, 10G SFP+ modules are available in various types, including RJ45 electrical ports, LC optical ports, and DACs and AOCs that cannot be separated due to their interface limitations. Furthermore, they maintain a compact physical size similar to 1G SFP modules, meeting high-density cabling requirements. In practical applications, such as high-density cabling within server racks, 10G SFP+ DACs are highly favored due to their near-zero power consumption and ease of plugging and unplugging for maintenance. For short-distance interconnects within data centers, 10G SFP+ MMF optical modules are the preferred choice due to their lower power consumption and cost. In long-distance interconnects, 10G SFP+ SMF optical modules are the only option, ensuring high-quality optical signals over long distances and improving communication quality.
Those working in the network industry generally have some understanding of optical modules. Operating at the physical layer, their main function is to convert signals between different media. The core principle is optical-to-electrical-to-optical conversion. Therefore, everything about 10G SFP+ optical modules is for the efficient conversion of different signals.

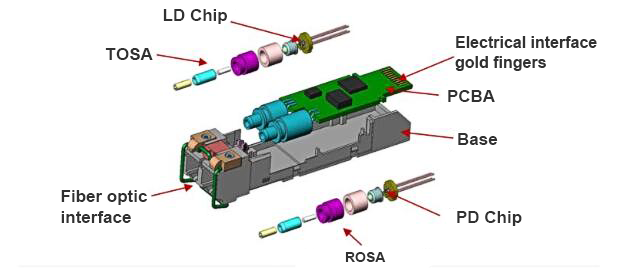

10G SFP+ optical modules mainly consist of the following components:
Laser Transmitter (TOSA): Composed of a laser and laser driver components, responsible for converting electrical signals into optical signals. Different lasers are used depending on the transmission distance. Common lasers include VCSELs for short-distance multimode transmission and FP and DFBs for long-distance single-mode transmission.
Laser Receiver (ROSA): Composed of a photodetector and electrical signal amplification circuit, responsible for converting optical signals into electrical signals. Currently, the most common types on the market are short-range receivers (PIN) and long-range receivers (APD).
PCB Circuit Board: The PCB of the optical module is the skeleton of the 10G SFP+ optical module. All components are connected to the PCB board, which is responsible for electrical connections, signal processing, mechanical support, and providing hardware support for the DDM function of the optical module.
Zinc Alloy Housing: The housing is the only component of the optical module that comes into contact with the outside world. It isolates the PCB functional circuits from direct contact with the outside environment, providing dust and moisture protection, resisting external physical impacts, and ensuring that the internal functional circuits are not affected by external factors. It also serves a heat dissipation function, preventing excessive temperatures from affecting the optical module and ensuring stable operation.
Optical Interface: The optical interface is the window through which the 10G SFP+ optical module connects to the signal transmission medium. Signals are sent and received through this interface. Even slight errors can affect the signal, so the quality of the optical interface directly affects the performance of the optical module. Common optical interfaces for 10G SFP+ optical modules include LC and RJ45.
Wavelength: The wavelength of a 10G SFP+ optical module determines its maximum transmission distance. Excessive center wavelength deviation, exceeding the specified range, leads to additional optical power loss and dispersion shift during actual transmission, reducing transmission quality and shortening the transmission distance. Common wavelengths for 10G SFP+ optical modules are 850nm, 1310nm, and 1550nm.
Transmit Optical Power and Receiver Sensitivity: Transmit optical power and receiver sensitivity determine the link budget of a 10G SFP+ optical module. A larger link budget means the module can tolerate higher link attenuation and transmit over longer distances.
Overload Point: The overload point is the maximum received optical power that a 10G SFP+ optical module can withstand. Received optical power close to the overload point can cause ROSA oversaturation, resulting in bit errors and packet loss, affecting module performance, and in severe cases, damaging the ROSA and the optical module. Therefore, during use, excessive received optical power must be avoided. For long-distance modules, attenuators must be added for short-distance transmission. Extinction Ratio: In 10G SFP+ optical modules, the extinction ratio is a key performance indicator for measuring the quality of the transmitted optical signal. It describes the ratio between the number of 1s and 0s transmitted by the optical module. A higher ratio indicates a more distinct distinction between 1s and 0s, making it easier for the receiver to accurately identify the signal, resulting in a lower bit error rate (BER) and enabling transmission over longer distances.
Bit Error Rate (BER): The BER is the most important indicator in optical communication. It represents the ratio of the number of received erroneous bits to the total number of transmitted bits. A lower BER indicates better signal quality and reflects the overall performance of the optical module. Generally, a qualified 10G SFP+ optical module should achieve zero BER within its nominal transmission distance.
In practical applications, the operating environment of 10G SFP+ optical modules is very complex, and various changes can affect the module's performance. In general, the main factors affecting the performance of optical modules can be categorized into the following five types.
The physical design and factory-calibrated parameters of 10G SFP+ optical modules form the basis of their performance. Different transmission distances and operating temperatures require different 10G SFP+ optical module models. When purchasing, it's crucial to determine the transmission distance and operating temperature to select the most suitable module model, preventing parameter mismatches that could lead to module malfunction.
As mentioned earlier, bit error rate (BER) is the most important indicator in optical communication. A lower BER generally indicates better signal quality. However, in harsh operating environments, optical modules inevitably produce some bit errors. In such cases, it's necessary to select modules with lower BER performance. Lower BER means more stable module performance and a lower risk of link failures.
The operating environment of 10G SFP+ optical modules directly impacts their lifespan and performance. Excessively high or low ambient temperatures can affect normal operation and even shorten their lifespan. Therefore, it's crucial to select appropriate optical modules for different environments: commercial-grade modules for 0-70°C environments and industrial-grade modules for -40-85°C environments, minimizing the impact of environmental factors on performance.
Different network devices, even from different brands, have their own compatibility requirements, limiting the normal use of non-original modules. However, original modules are expensive, leading to the emergence of third-party optical module suppliers. These suppliers offer a variety of compatible modules, greatly reducing the likelihood of compatibility issues. Therefore, when purchasing, it's essential to clearly describe the complete equipment model and operating environment to third-party suppliers to avoid compatibility problems. Of course, while original modules are expensive, their compatibility is also the best, eliminating concerns about compatibility issues.
In 10G SFP+ optical module usage scenarios, the most easily overlooked problem is physical link failure. This is the most insidious issue. Excessive fiber attenuation, fiber breaks, and contaminated fiber end faces can all affect the transmission performance of the optical module. Sometimes, choosing incompatible fiber can also lead to link failures, such as using multimode fiber with a single-mode module, or vice versa. Careful troubleshooting and timely fiber replacement are necessary to avoid prolonged link interruptions that could impact services.
From the above, we can understand that there are various types of 10G SFP+ optical modules, corresponding to many different application scenarios.
With technological advancements, 10G SFP+ optical modules are no longer sufficient for high-performance data applications. However, in traditional data center environments, there are still many scenarios where 10G SFP+ optical modules can excel. Examples include short-distance interconnects of multimode modules within small server rooms and long-distance interconnects of single-mode modules between data centers. These are common applications of 10G SFP+ optical modules in traditional data centers.
For small enterprise networks, 10G speeds are generally sufficient for office needs, making 10G SFP+ optical modules the primary choice. For backbone networks between office buildings, 10G LR optical modules can meet traffic transmission requirements. Within office buildings, RJ45 Ethernet modules facilitate interconnection between the access layer and PCs, allowing for flexible adjustment and adaptation to the number of terminal PCs, achieving seamless network connectivity without lag or latency.
Metropolitan area networks (MANs) are networks between towns and cities, meaning a large number of nodes and potential for outages. This poses a significant challenge to network deployment. 10G SFP+ CWDM and DWDM optical modules can effectively address this challenge. Through MUX and DEMUX, 10G SFP+ CWDM and DWDM optical modules can multiplex multiple services at the origin onto a single optical fiber for transmission and demultiplex them at the destination to restore the multiple services. This reduces fiber resource consumption, lowers network complexity, and simplifies fiber deployment, making them an ideal choice for MANs and carrier links.
For building new 10G networks and upgrading existing networks, selecting the right module requires comprehensive consideration of factors such as distance, cost, power consumption, and compatibility.
Choosing the appropriate module solution is crucial depending on the transmission distance. For rack-mounted ultra-short distance connections within 7 meters, prioritize DAC high-speed cables with the lowest cost and power consumption. For short-distance applications of 300 to 400 meters, it is recommended to use 10G SFP+SR modules with multimode fiber. For medium- to long-distance requirements of 10 kilometers or even over 80 kilometers, LR, ER, or ZR modules with single-mode fiber should be used to ensure signal stability.
When selecting optical modules, do not blindly pursue the lowest price. First, ensure that the supplier provides a clear compatibility guarantee. It is recommended to carefully review the compatibility matrix provided by the switch manufacturer before purchasing and confirm whether the modules strictly adhere to the MSA (Multi-Source Agreement) standard to ensure stable interoperability between devices and reduce the risk of link failure.
Depending on the deployment environment, selecting an appropriate temperature rating is crucial for ensuring network stability. In controlled, standard office or server room environments, standard commercial-grade modules are sufficient. However, in harsh environments such as outdoor enclosures, industrial sites, or frigid regions, industrial-grade modules must be specified to effectively prevent laser failure or link breakdowns caused by extreme temperature fluctuations.
To improve operational and maintenance efficiency, modules should support DOM/DDM (Digital Diagnostic Monitoring/Controlling) functionality. This function allows administrators to monitor the module's transmit and receive optical power, operating voltage, and operating temperature in real time, enabling timely intervention before potential failures occur.
Before large-scale procurement begins, it is essential to purchase sample units for rigorous stress testing, focusing on checking for packet loss or overheating under prolonged high-load operation to ensure network stability after mass deployment.
