Why should Data Centers Deploy QSFP-DD 400G FR4?

With the development of optical communication technology, the market size of optical modules continues to grow. 400G QSFP-DD packaging has become one of the most popular optical modules for hyperscale data centers due to its advantages of low power consumption, small size and high speed.

At present, the types of 400G QSFP-DD optical modules on the market include 400G SR8, 400G DR4, 400G FR4, 400G LR4, 400G LR8, etc.

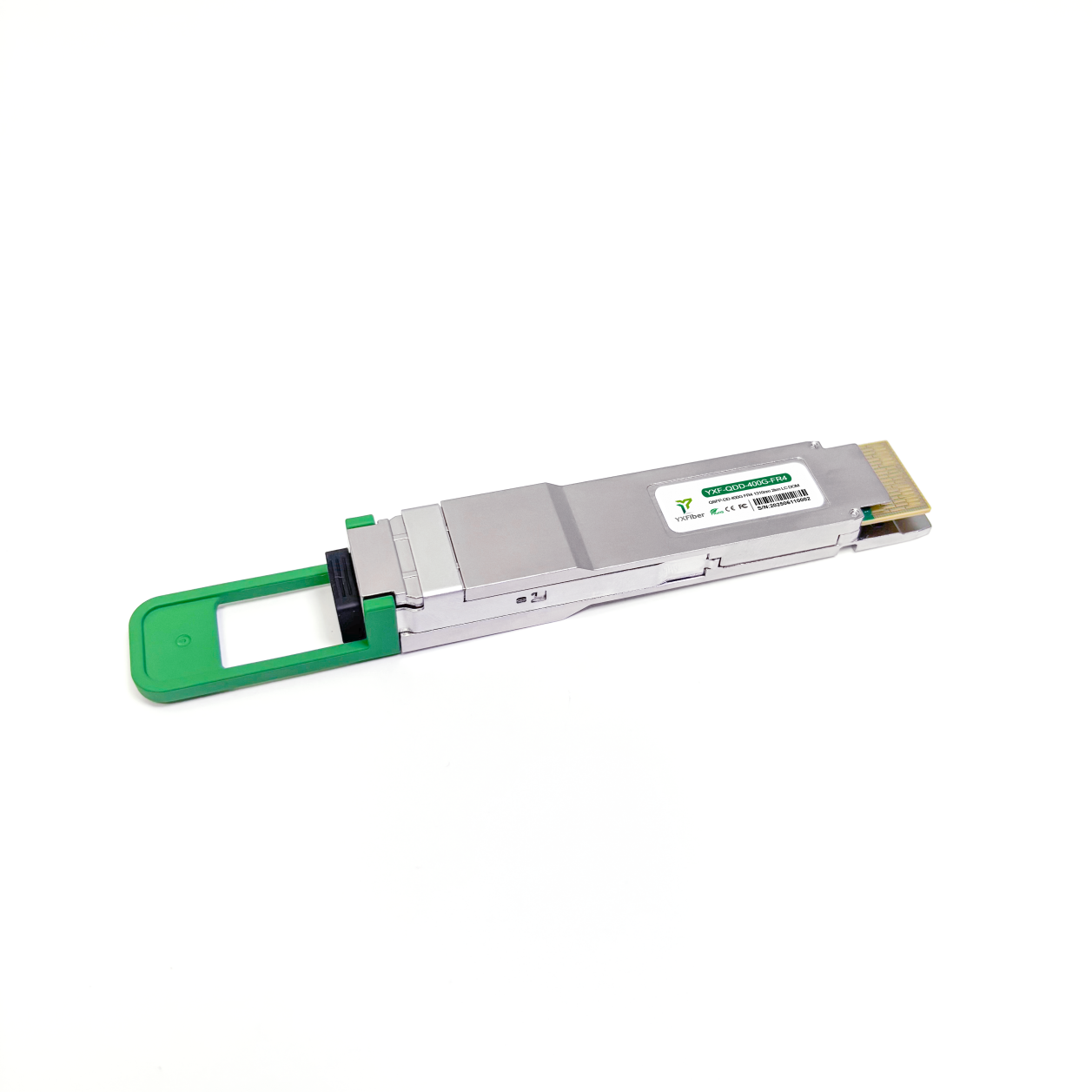

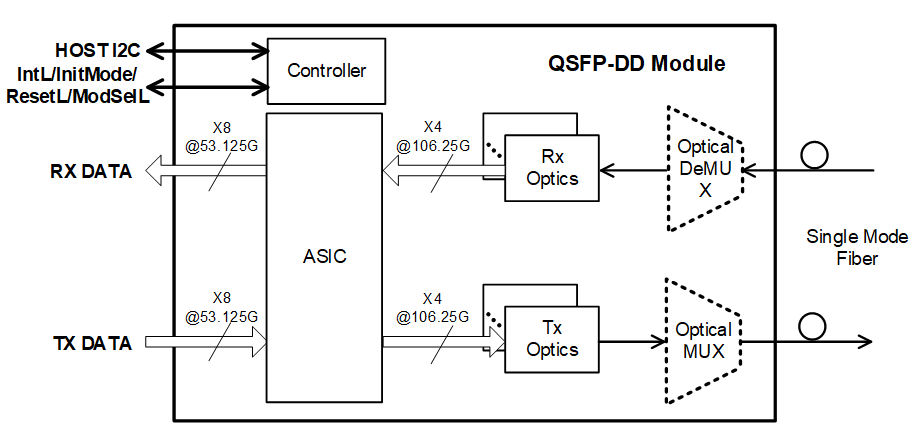

Today we introduce YXFiber's YXF-QDD-400G-FR4. It is a transceiver module designed for 2 km optical communication applications and complies with the 100G Lambda MSA standard. The module can convert 8 channels of 53.125 Gbps electrical data into 4 channels of 106.25 Gbps optical signals and multiplex them into a single channel for 425 Gbps optical transmission. Likewise, it optically demultiplexes the 425 Gbps input into 4-channel signals and converts them into 8-channel output electrical data at the receiver end. It is designed to meet the most severe external operating conditions, including temperature, humidity, and EMI interference. The module offers very high functionality and feature integration, which can be accessed through an I2C interface.

400G QSFP-DD FR4 optical module advantages

High bandwidth:

400G QSFP-DD FR4 optical module can achieve 400Gbps high-speed data transmission, easily meeting the rising network bandwidth demand.

Long-distance transmission:

This optical module supports single-mode optical fiber transmission up to 2 kilometers, which is very suitable for interconnection between data centers.

Low power consumption: 400G QSFP-DD FR4 optical module uses advanced low-power technology to effectively reduce energy consumption, which is in line with the concept of sustainable development.

Good compatibility:

The 400G QSFP-DD FR4 optical module with universal interface standard can be seamlessly connected with existing optical fiber communication equipment to help achieve smooth upgrades.

High density:

The 400G QSFP-DD packaged 400G QSFP-DD FR4 optical module is compact in size and can provide higher bandwidth density in a limited space, achieving more efficient data transmission.

Reliability:

400G QSFP-DD FR4 optical module has excellent reliability and stability, and can provide stable and reliable network connection guarantee for daily business operations of enterprises.

Maintainability:

Thanks to the modular design, the replacement and maintenance process of 400G QSFP-DD FR4 optical modules is more convenient, which effectively reduces maintenance costs.

Why is 400G QSFP-DD FR4 used in data centers?

At present, global data centers are in a critical period of upgrading from 100G to 400G networks. According to the latest report of Dell'Oro Group, the global 400G optical module market size has reached US$2.3 billion in 2023 and is expected to exceed US$5 billion by 2025. In this wave of upgrades, QSFP-DD 400G FR4 optical modules have become a popular choice for data center network upgrades due to their unique advantages.

According to LightCounting's market research data, among the many types of 400G optical modules, the market share of FR4 models is as high as 58%, far exceeding other models such as DR4 and LR4. This overwhelming market favor stems from FR4's outstanding performance in performance, cost and compatibility.
