YXF-Q28-100G-CWDM4
YXFiber
QSFP28
100G
CWDM4
2KM
Duplex LC
Cisco, Mikrotik, HPE, TP LINK, HP, D-Link, Juniper, Ubiquiti, Huawei, Dell, Aruba, Finisar, ZTE, lntel, Avago, Arista, Mellanox, Brocade, QNAP, Fortinet, Customized
Specifications

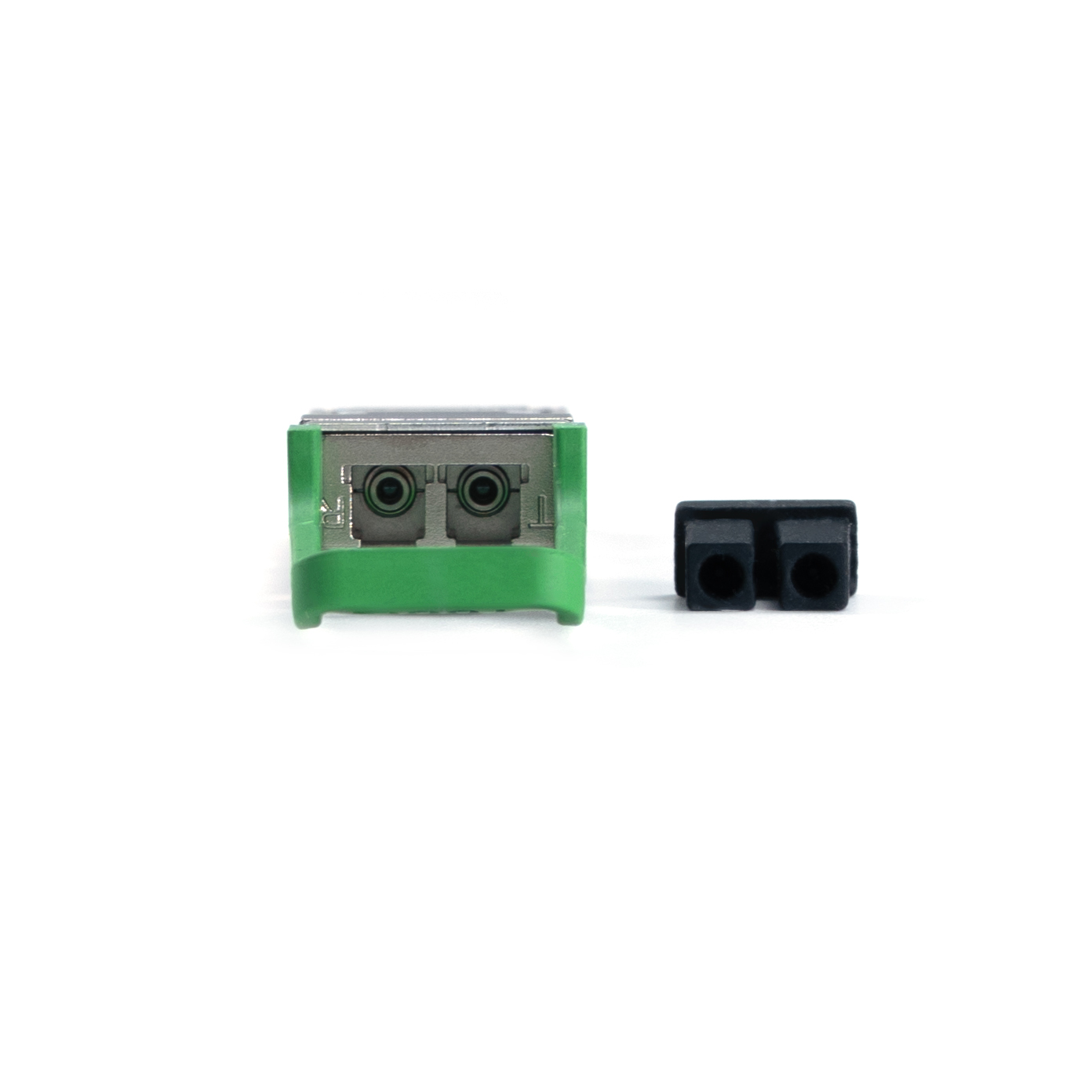

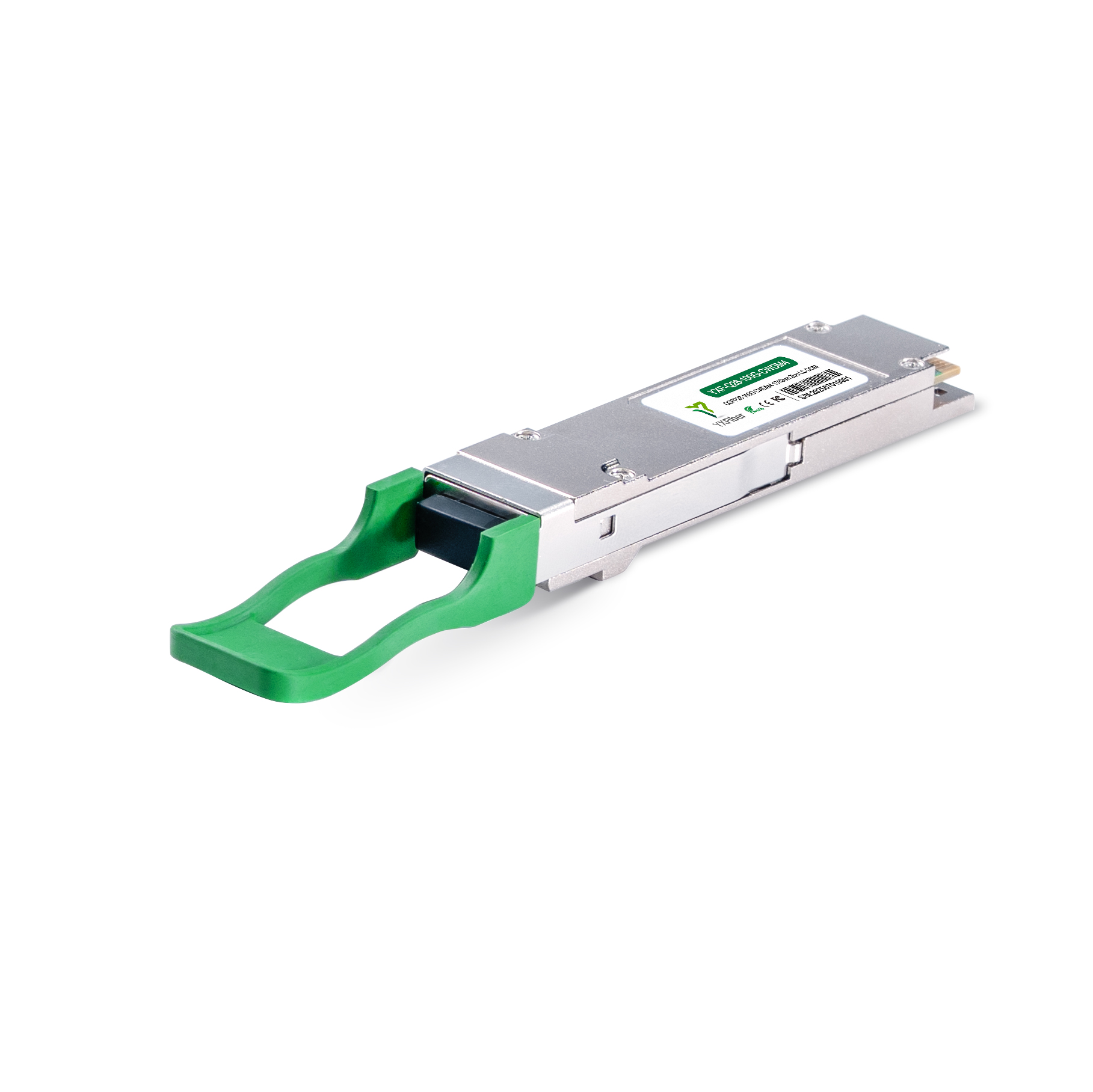

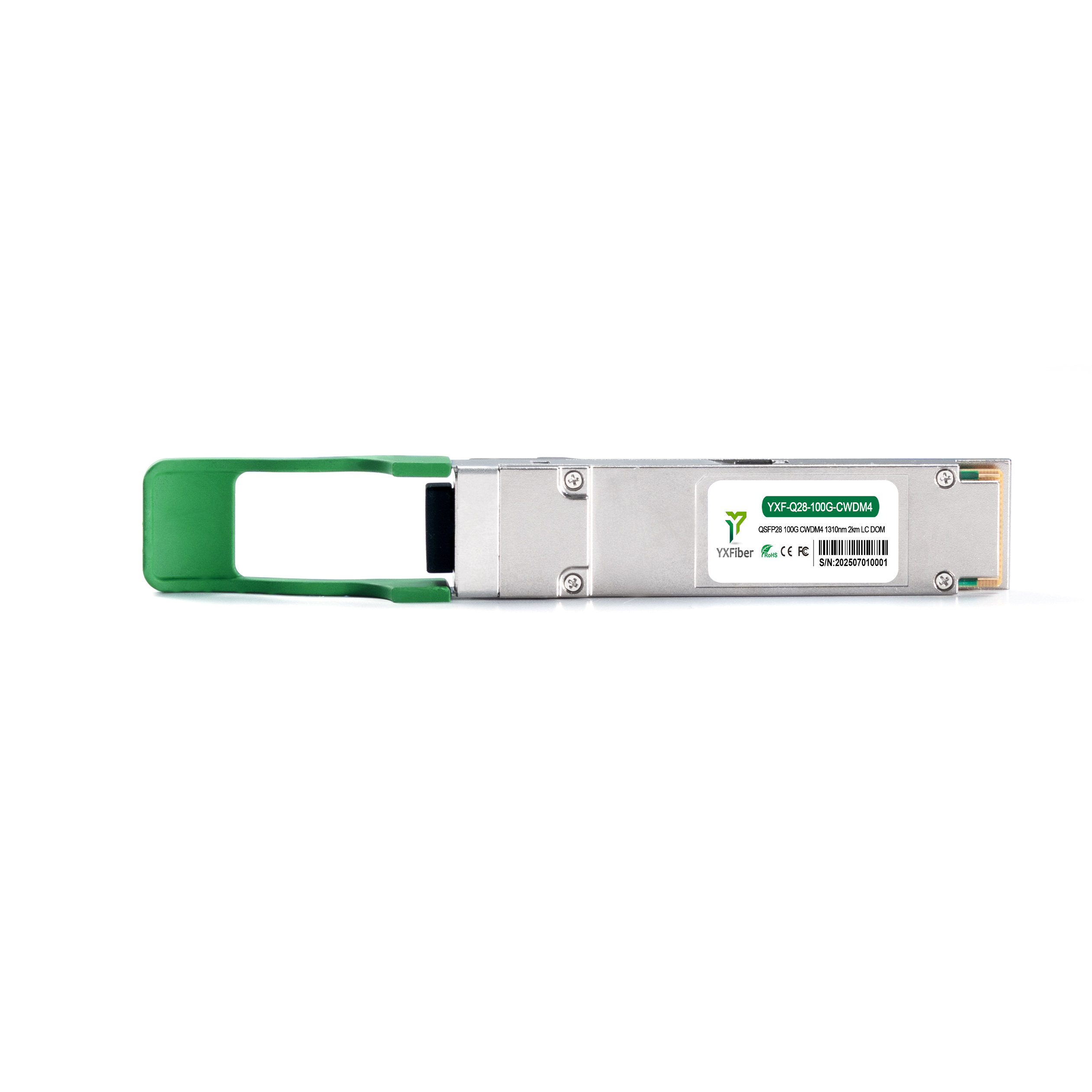

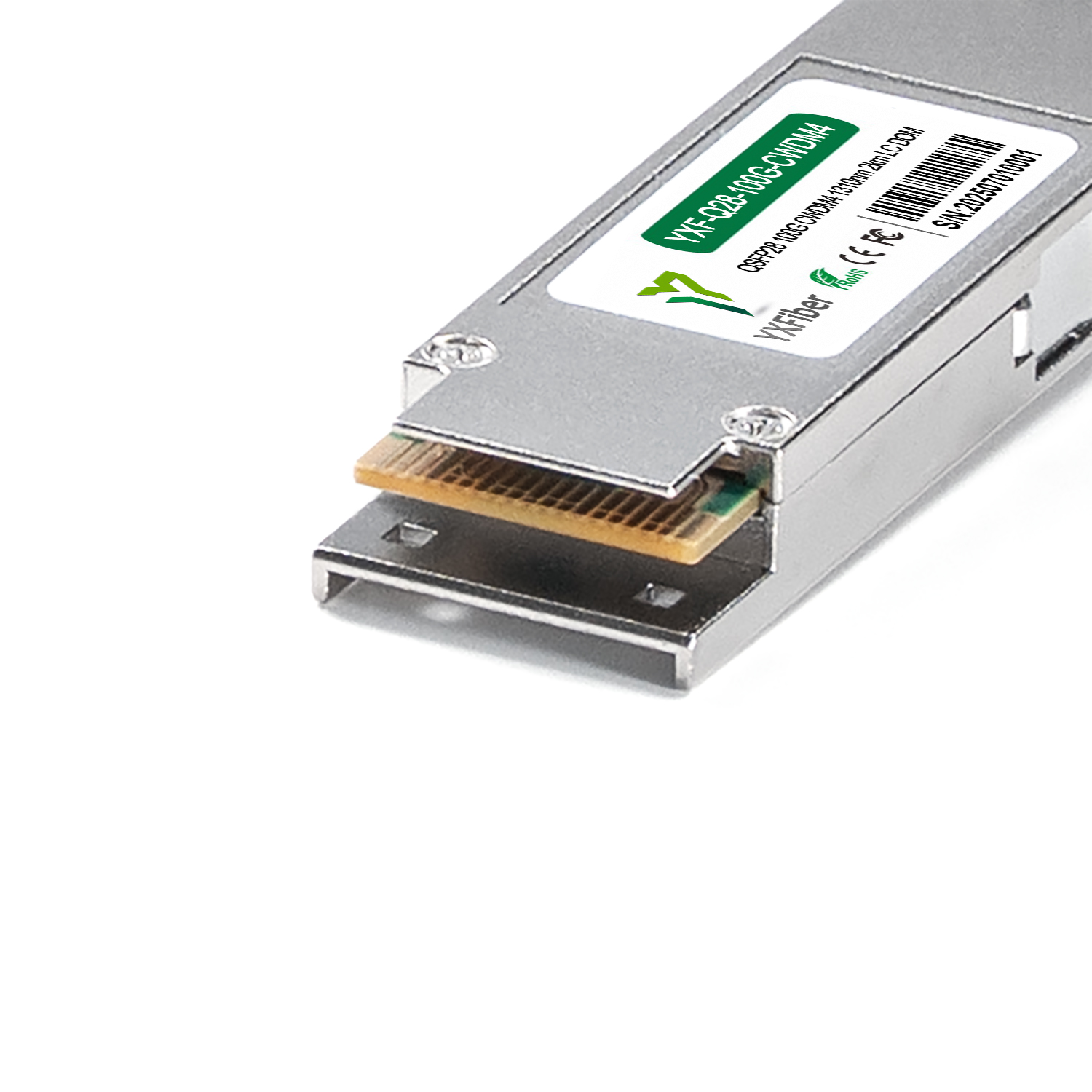

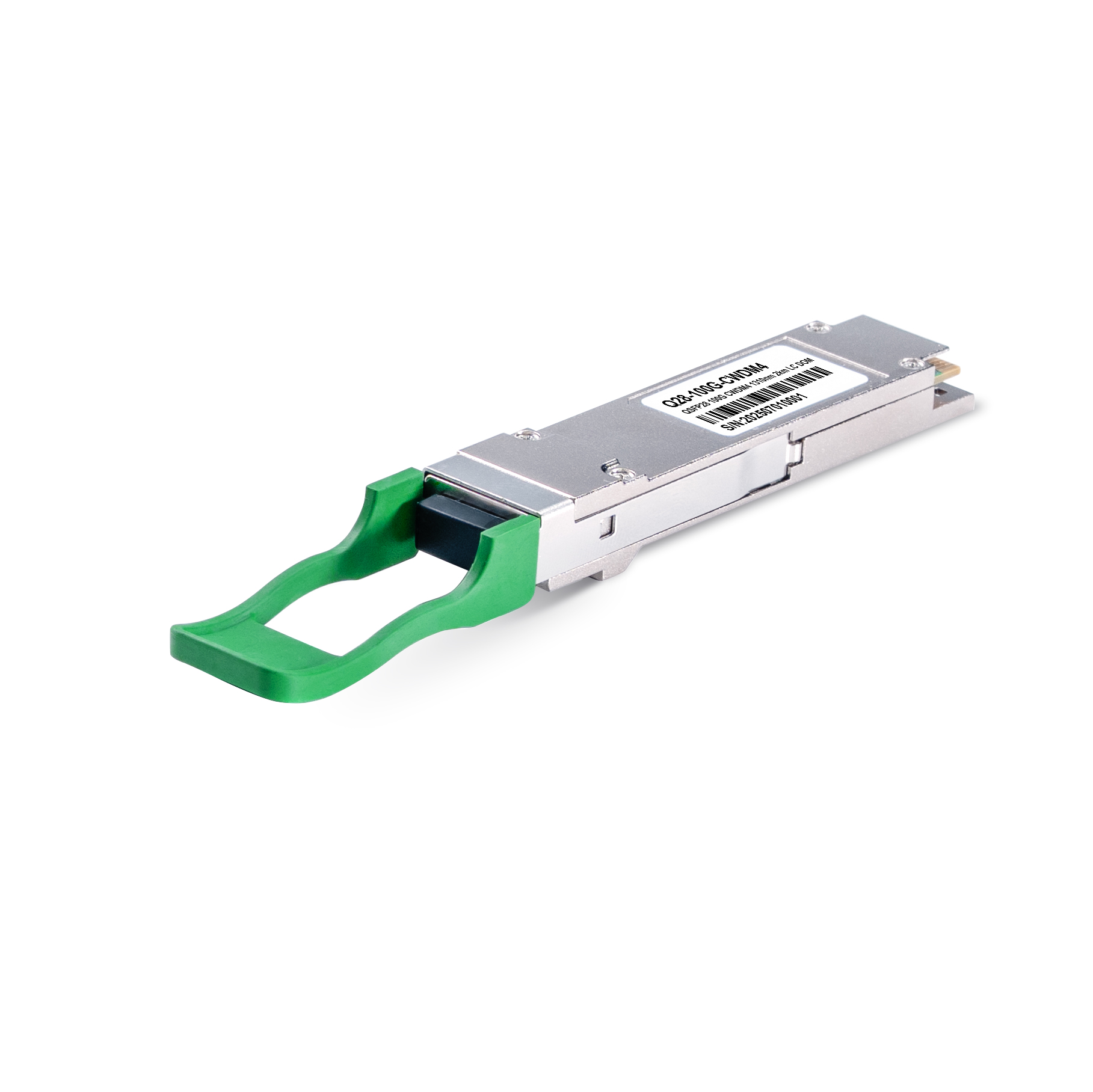

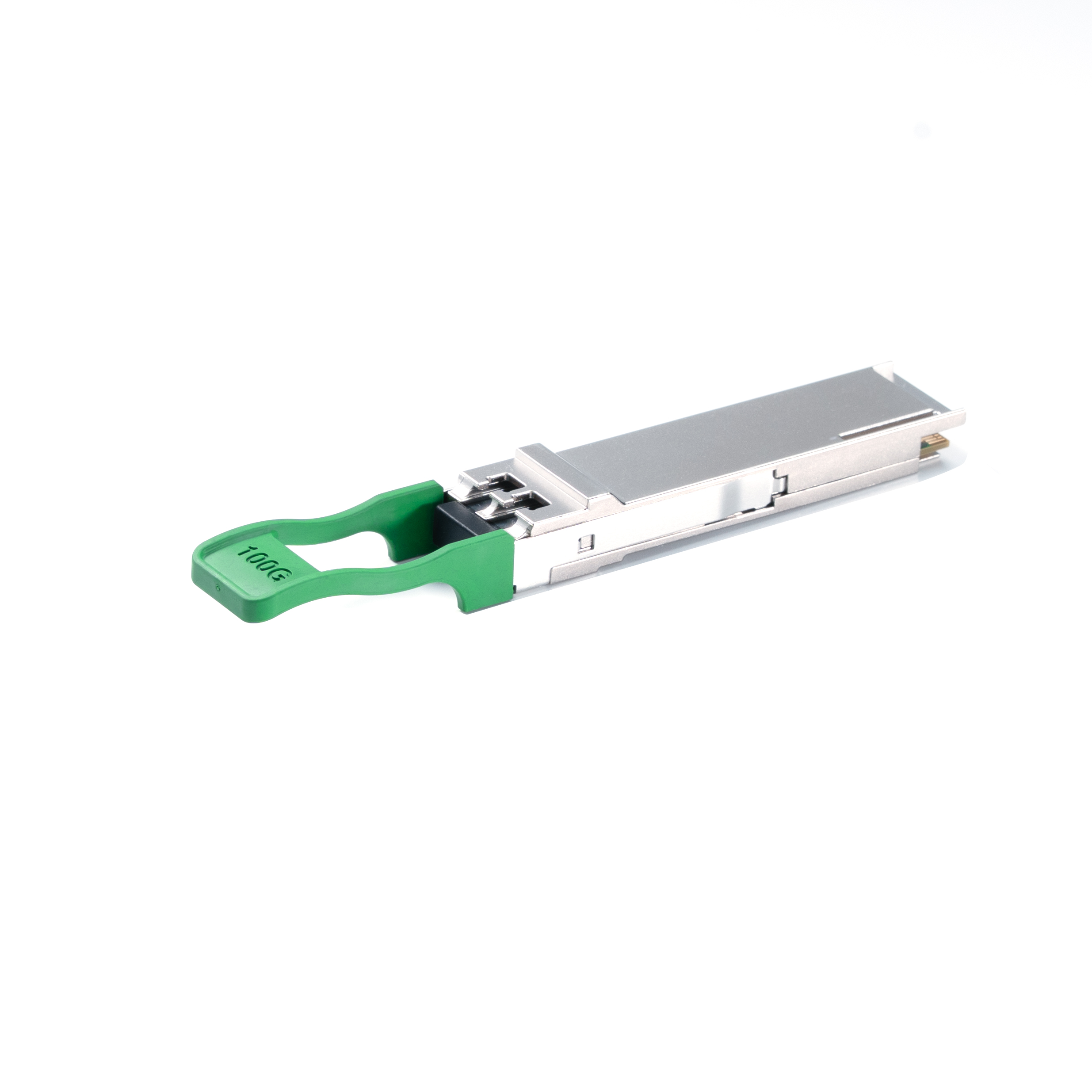

YXF-Q28-100G-CWDM4 Compatible 100GBASE-CWDM4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 2km, LC, DOM)
The YXF-Q28-100G-CWDM4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF). The 100 Gigabit Ethernet signal is carried over four wavelengths at 1310 nm. This transceiver is compliant with IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, SFF-8665, SFF-8636 and ITU-T G.694.2 standards. With these features, this is suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.
| Part Number | YXF-Q28-100G-CWDM4 | Vendor Name | YXFiber |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps(4x25.78Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 2km |
| Connector | Duplex LC | Media | SMF |
| TransmitterType | 4 x CWDM DML (DFB) | Receiver Type | PIN |
| TX Power | -6.5~2.5dBm | Minimum Receiver Power | -11.5dBm |
| Power Budget | 5dB | Receiver Overload | 2.5dBm |
| Power Consumption | ≤3.5W | Extinction Ratio | >3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70℃(32 to 158°F) |
| Core Size | G.652/9um | Inbuilt FEC | Yes |
| Packaging Technology | COB (Chip on Board) Packaging | Modulation Format | 4x25GNRZ |
| Protocols | IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, QSFP28 MSA, SFF-8665, SFF-8636 | Warranty | 3 Years |
Connection Diagram
Product Highlights
Each product is thoroughly checked for peformance and compatibility before delivery to the customer.
Customer centricity and 100% customer satisfaction rate.
All oplical transceivers are tested through dozens of processes before leaving the factory.
Certication
Our company and products are certified to meet industry standards, ensuring top quality and reliability.Trust our expertise for secure, high-performance solutions that you can depend on.
Features
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.Partner with us for the finest fiber optic technology, tailored for diverse market need.
Comprehensive Testing Increases Reliability
Six professional transceiver performance tests. Optical Spectrum, Eye Pattern, Bit Error Rate and Temperature Test for Assured Quality.
Q&A
Question And Anwsers
Q:What is your main products?
A:Our main products are optical modules, please send us an inquiry and we will send you a complete catalogue.
Q: Could you please check if both of these can be used with ME compatible? 4x 100G QSFP28 CWDM4 optical module compatible with Mellanox SN2700 4x 100G QSFP28 CWDM4 optical module compatible with Mellanox MCX555A-ECAT？
A: Our products are compatible with your devices and can work properly on them.
Q:Is this module compatible with Cisco NCS-5504 and NCS-55A1 devices?
A: It can be used on these devices, please pay attention to the version number of the device.
Q:What is your MOQ and the lead time?
A: we don’t have MOQ, 1 samples is available.
Normally lead time is 1-3 working days for samples and 3-5 days for mass.
Q:What kinds of customized choices are offered in YXFiber?
A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.
Q:Hi, I want to know whether the transceiver is compatible with switch of S5850-48S2Q4C?
A: Sure,it is compatible with the switch.
Q: How about shipping?
A: For sample, about 5-7 days by fast delivery ;
For Mass order, bout 15-25 days by sea, air, train shipping.
Q:What is your after-sales service? How about the warranty?
A:All our customers can enjoy the after-sales service for 3 years warranty and lifetime technical support.
