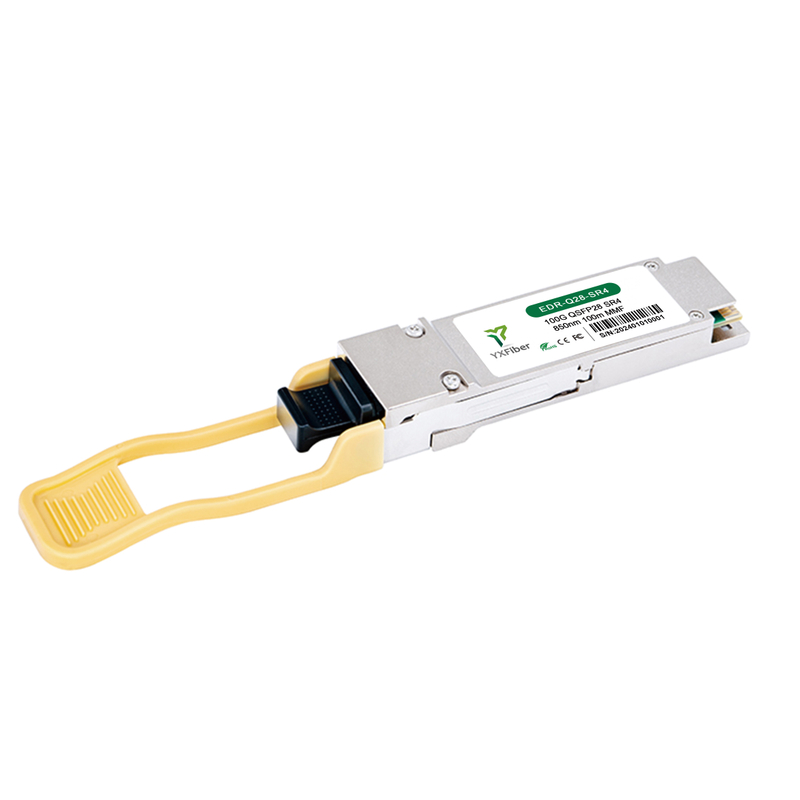

InfiniBand MMA1B00-E100 100G QSFP28 SR4 850nm 100m DOM MPO-12/UPC MMF EDR Optical Transceiver

Features:
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Provide Professional Compatibility and Parameter Test Reports.
  • 30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.
Brand:
Availability:
Quantity:
  • EDR-Q28-SR4

  • YXFiber

  • QSFP28

  • EDR

  • SR4

  • 100M

  • MPO-12 UPC

InfiniBand MMA1B00-E100 100G  QSFP28 SR4 850nm 100m DOM MPO-12/UPC MMF EDR Optical Transceiver

MMA1B00-E100 Compatible QSFP-100G-SR4H InfiniBand transceivers for SB7800/SB7890, MCX556A-ECAT/MCX653106A-HDAT, which are affordable ways to create high-speed fourteen data rate (FDR), enhanced data rate (EDR) with detachable optical connectors. It's a 4-channel, pluggable, QSFP28 optical transceiver designed for use in 100Gb/s EDR InfiniBand systems. This module incorporates integrated circuit technology, in order to provide high bandwidth and low latency for data center.



Form Factor
QSFP28
Distance
100m
Wavelength
850nm
Connector
MTP/MPO-12 UPC
Power Consumption
≤2.2W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation(electrical)
4x25.781Gb/s NRZ
Modulation(Optical )
Modulation(Optical )
Case Temperature(℃)
0~70°C(32 to 158°F)
Application
IB EDR

EDR-Q28-SR4
