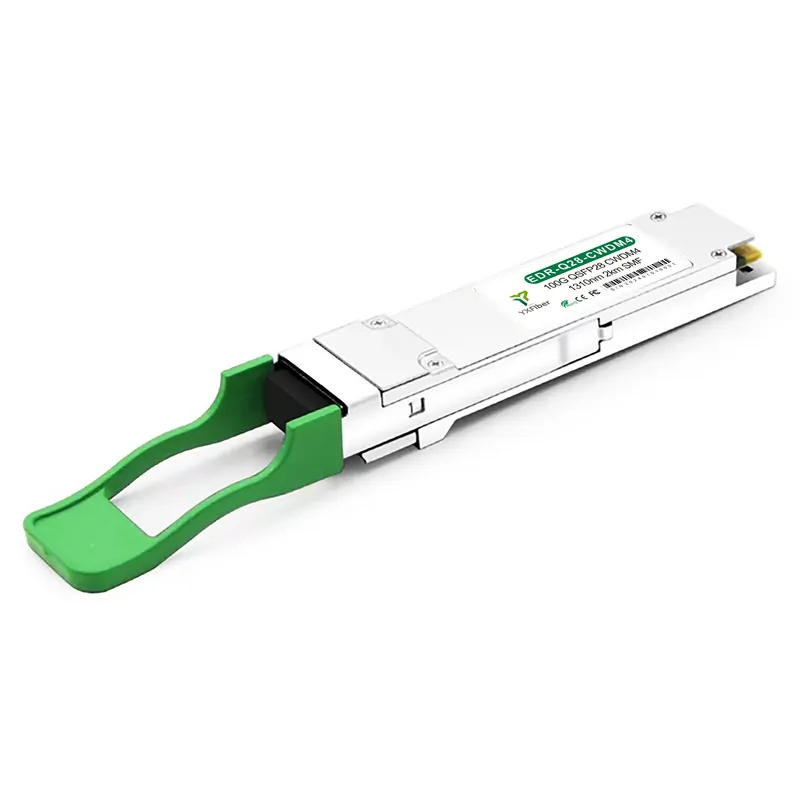

InfiniBand MMA1L30-CM 100G QSFP28 CWDM4 1310nm 2km DOM Duplex LC/UPC SMF EDR Optical Transceiver Module

Features：
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • Provide Professional Compatibility and Parameter Test Reports.
  • 30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.
Brand:
InfiniBand
Availability:
Quantity:
Inquire

  • EDR-Q28-CWDM4

  • YXFiber

  • QSFP28

  • EDR

  • CWDM4

  • 2KM

  • Duplex LC

Product Description

InfiniBand MMA1L30-CM 100G QSFP28 CWDM4 1310nm 2km DOM Duplex LC/UPC SMF EDR Optical Transceiver Module

Mellanox MMA1L30-CM Compatible QSFP-100G-CWDM4H optical transceiver for SB7800/SB7890, MCX556A-ECAT/MCX653106A-HDAT, which is a 4-channel (CWDM4) QSFP28 transceiver designed for use in 100 Gigabit Ethernet (GbE) links over up to 2km of single mode fibre. It is also suitable for use in end-to-end InfiniBand EDR systems and compliant with the QSFP28 MSA and the IEEE 802.3bm CAUI-4.

Specifications

Form Factor
QSFP28
Wavelength
1310nm
Power Consumption
≤3.5W
Receiver
PIN
Modulation（electrical）
4x25.781Gb/s NRZ
Case Temperature(℃)
0~70°C(32 to 158°F)
Distance
2km
Connector
Duplex LC
Transmitter
CWDM EML
Media
SMF
Modulation（Optical ）
4x25.781Gb/s NRZ
Application
IB EDR

Connectivity Solutions


Product Manual

download EDR-Q28-CWDM4.pdf
