BIDI Optical Module Detailed Explanation

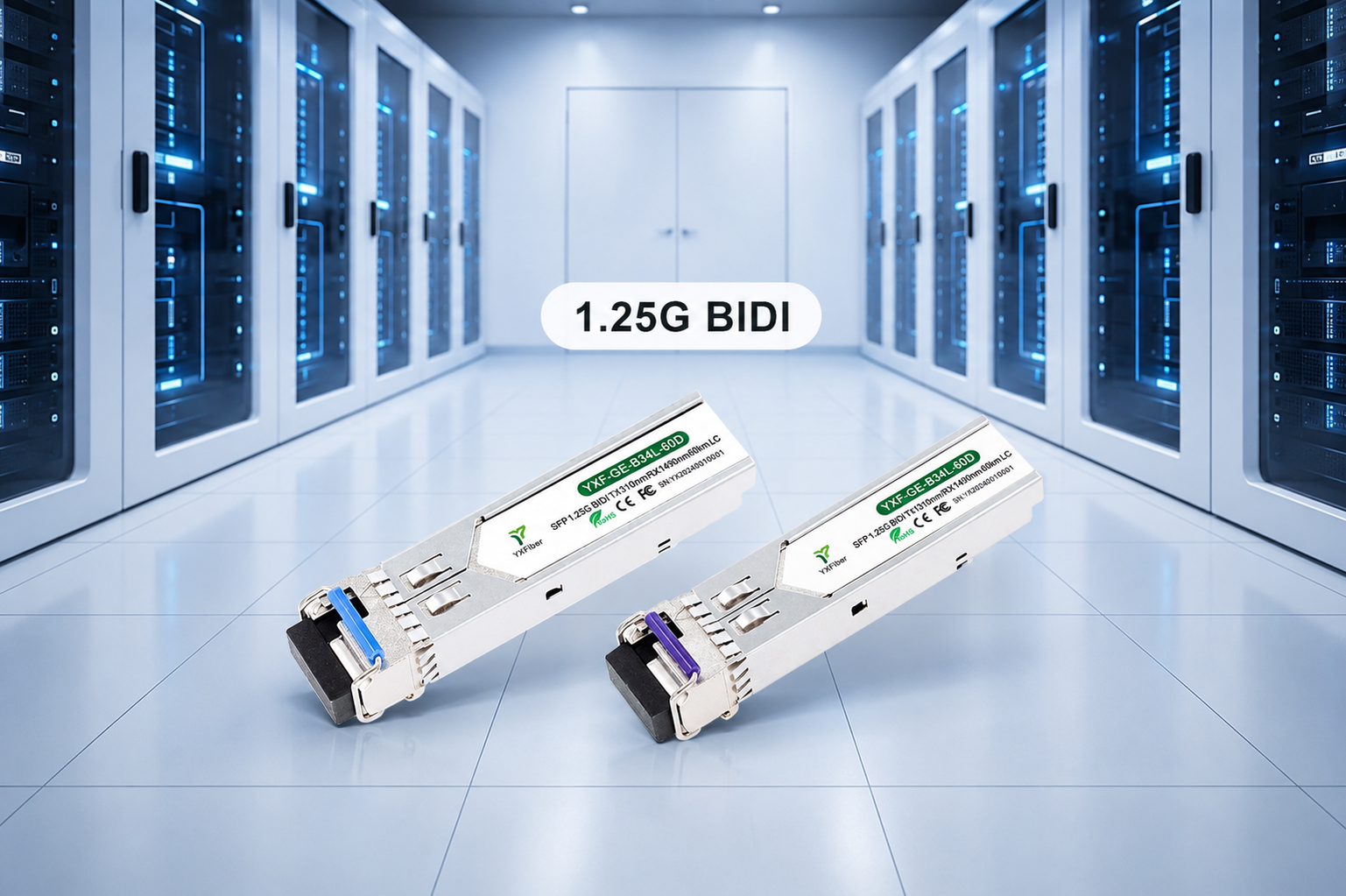

In fiber access, security surveillance, and campus networking scenarios, the scarcity of fiber resources and high cabling costs remain major pain points for users. BiDi optical modules offer the most cost-effective solution thanks to their single-fiber bidirectional transmission capability. As a professional optical transceiver manufacturer, YXFiber specializes in the research, development, and production of SFP modules. Its 1.25G Ethernet BIDI SFP series covers transmission distances from 3km to 200km, meeting the single-fiber transmission requirements of various gigabit fiber networks.

Core Working Principle of BIDI Optical Modules

Traditional dual-fiber optical modules require two separate fibers—one for transmitting signals and another for receiving. In contrast, BIDI modules integrate WDM (wavelength division multiplexing) components, enabling interference-free bidirectional communication over a single fiber. BIDI modules must be used in pairs: one end transmits at 1310nm and receives at 1550nm, while the other end does the reverse, allowing simultaneous bidirectional data transmission within a single fiber. YXFiber’s 1.25G SFP BIDI modules feature standardized wavelengths of 1310/1490/1550nm, compliant with the IEEE 802.3ah 1000Base-BX Ethernet protocol, and are available with either LC or SC fiber connectors.

Four Core Advantages of YXFiber BIDI Optical Modules

1. Dramatically Reduces Fiber Usage and Lowers Infrastructure Costs

The BIDI solution cuts fiber consumption by half, eliminating the need for additional cable laying or duct expansion. It is especially suitable for upgrading legacy campuses and residential FTTH networks where fiber resources are already saturated. YXFiber's gigabit single-fiber modules are sold as pre-paired units, reducing cabling, material, and labor costs by nearly 50% compared to dual-fiber configurations. With highly competitive unit pricing, these modules meet budget constraints for mid-to-small-scale projects.

2. Industry Standard, Plug-and-Play Compatibility

The 1.25G Ethernet BIDI SFP supports hot-swapping and complies with MSA standards, ensuring compatibility with mainstream switches, fiber transceivers, and routers from vendors such as Cisco, TP-LINK, and Mikrotik. No firmware modifications are required, and replacing traditional dual-fiber modules doesn’t necessitate changes to hardware architecture—making deployment extremely simple and significantly streamlining operations and maintenance.

3. Stable and Reliable Performance with Full-Process Quality Control

As an original optical module manufacturer, YXFiber operates clean-room production lines. All BIDI SFP modules undergo rigorous testing including raw material inspection, automated PCB assembly, eye diagram analysis, high/low temperature aging, and full compatibility verification before shipment. The modules support DDM (Digital Diagnostic Monitoring), enabling real-time monitoring of optical power, temperature, and voltage. With power consumption under 1W, they operate stably between 0°C and 70°C; industrial-grade models can function in extreme environments ranging from -40°C to 85°C. Low jitter and high receiver sensitivity ensure reliable long-distance transmission without packet loss.

4. Comprehensive Distance Options and Customization Support

YXFiber offers multiple 1.25G BIDI models covering transmission distances of 3km, 10km, 20km, 60km, and 100km, providing flexible single-mode single-fiber distance choices. The company also supports OEM/ODM customization, allowing customers to define wavelengths, transmission distances, and label markings to meet bulk procurement needs from telecom operators and system integrators.

Main Application Scenarios

FTTX Fiber-to-the-Home / Campus Broadband: Enables gigabit broadband access in residential communities and office buildings, solving the problem of insufficient fiber cores per household and reducing deployment and expansion costs for service providers.

IP Surveillance Networking: Supports long-distance video backhaul for multiple cameras in factories and scenic areas, transmitting bidirectional video data over a single fiber, simplifying cabinet cabling.

Industrial Ethernet and Intelligent Transportation: Gigabit transmission for factory PLCs, barrier gates, and checkpoint surveillance, compatible with complex outdoor cabling environments;

Interconnection in medium-to-small data centers: short-range gigabit uplinks between switches, saving fiber patch panel port resources;

Campus and hospital intranet networking: gigabit fiber interconnection across buildings, enabling low-cost upgrades of legacy networks.

In the gigabit fiber communication market, YXFiber leverages its mature 1.25G Ethernet SFP BIDI product line to balance cost, performance, and compatibility, effectively addressing the challenge of limited fiber resources. Backed by a complete in-house R&D and manufacturing system, full CE/FCC/RoHS certifications, and rigorous quality control standards, this professional optical transceiver company delivers high-value single-fiber optical module solutions globally. Whether for standardized bulk purchases or customized requirements, it offers one-stop delivery of stable, long-lasting fiber transmission hardware.
