YXF-10G-A1
YXFiber
YXF-10G-A1
SFP+
10G
AOC

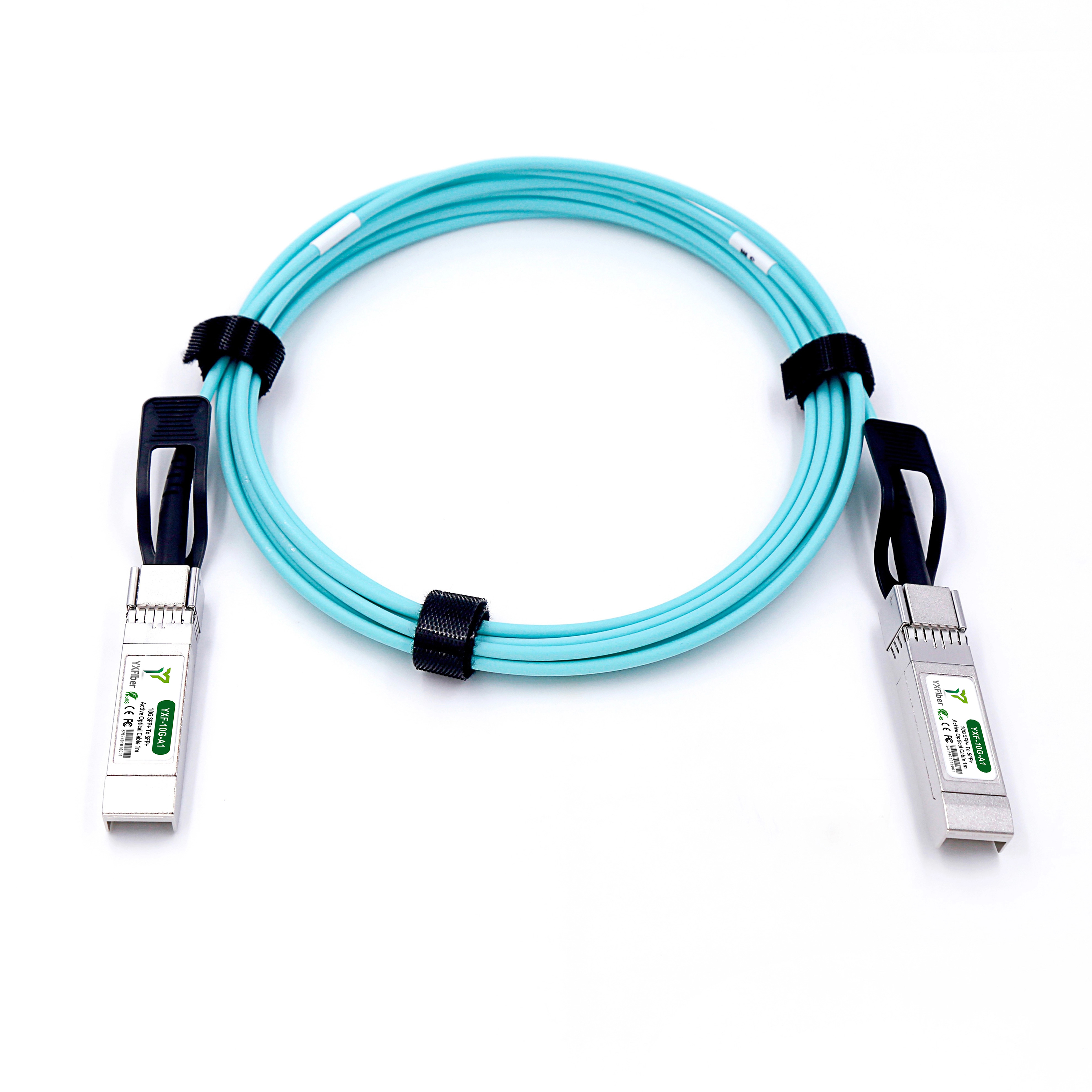

10G SFP+AOC consists of 2x SFP+ modules and a fiber cable assembly, transmitting up to 10Gbps in each direction over a OM3 MMF with distance up to 100m. SFP+ AOC can be used as an alternative solution to SFP+ DAC (or SFP+ transceiver), while providing improved signal integrity, longer distances, superior electromagnetic immunity and better bit error rate performance.
Features:
10Gb/s serial optical interface
850nm high-speed VCSEL and PIN receiver
Support 10Gb/s transmission distance up to 100 meters with MMF
Operating case temperature 0ºC to +70ºC
Single 3.3V power supply
Mechanical specifications compliant with SFF-8432
Electrical specifications compliant with SFF-8431
Support digital diagnostics monitoring for module temperature, Vcc, Rx input power, Tx_Disable and Rx_LOS
Typical power consumption 200mW
I2C communication bus
Hot pluggable
RoHS-6 compliance
Brand | YXFiber |
Connector Type | Sfp+ to Sfp+ |
Cable Type | Active Optical Fiber Cable |
Compatible Devices | Server, Router, Switches |
Special Feature | Plug and play |
Connector Gender | Male-to-Male |
Data Transfer Rate | 10 Gigabytes Per Second |
Shape | Round |
Unit Count | 1.0 Count |
Connectivity Technology | Active Optical Fiber Cable |
Specification Met | Ieee802.3 |
Indoor/Outdoor Usage | Outdoor, Indoor |
Package Type | Standard Packaging |
Item Weight | 0.16 ounces |
Package Dimensions | 0.01 x 0.01 x 0.01 inches |
Part No. | Data Rate | Protective sleeve material | Distance | Connector Type |
YXF-10G-A1 | 10G | PVC | 1m | SFP+ To SFP+ |
YXF-10G-A5 | PVC | 5m | ||
YXF-10G~A10 | PVC | 10m | ||
YXF-10G-A20 | PVC | 20m | ||
YXF-25G~A1 | 25G | PVC | 1m | SFP28 To SFP28 |
YXF~25G~A5 | PVC | 5m | ||
YXF~ 25G~A10 | PVC | 10m | ||
YXF~25G-A20 | PVC | 20m | ||
YXF~40G~A1 | 40G | PVC | 1m | QSFP+ To QSFP+ |
YXF~40G~A5 | PVC | 5m | ||
YXF~40G~A10 | PVC | 10m | ||
YXF~-40G~A20 | PVC | 20m | ||
YXF~100G~A1 | 100G | PVC | 1m | QSFP28 To QSFP28 |
YXF~100G-A5 | PVC | 5m | ||
YXF-100G~A10 | PVC | 10m | ||
YXF~100G-A20 | PVC | 20m |

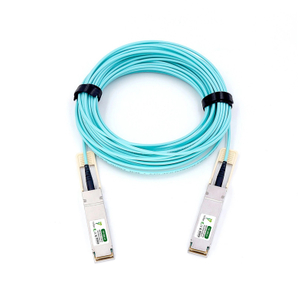

Infiniband AOC | ||||
Part No. | Data Rate | Protective sleeve material | Distance | Connector Type |
YXF-200G-A1 | 200g | PVC | 1m | qsfp56 to qsfp56 |
YXF-200G-A2 | PVC | 2m | ||
YXF-200G-A3 | PVC | 3m | ||
YXF-200G-A5 | PVC | 5m | ||
YXF-200G-A10 | PVC | 10m | ||
YXF-200G-A15 | PVC | 15m |
10G SFP+AOC consists of 2x SFP+ modules and a fiber cable assembly, transmitting up to 10Gbps in each direction over a OM3 MMF with distance up to 100m. SFP+ AOC can be used as an alternative solution to SFP+ DAC (or SFP+ transceiver), while providing improved signal integrity, longer distances, superior electromagnetic immunity and better bit error rate performance.
Features:
10Gb/s serial optical interface
850nm high-speed VCSEL and PIN receiver
Support 10Gb/s transmission distance up to 100 meters with MMF
Operating case temperature 0ºC to +70ºC
Single 3.3V power supply
Mechanical specifications compliant with SFF-8432
Electrical specifications compliant with SFF-8431
Support digital diagnostics monitoring for module temperature, Vcc, Rx input power, Tx_Disable and Rx_LOS
Typical power consumption 200mW
I2C communication bus
Hot pluggable
RoHS-6 compliance
Brand | YXFiber |
Connector Type | Sfp+ to Sfp+ |
Cable Type | Active Optical Fiber Cable |
Compatible Devices | Server, Router, Switches |
Special Feature | Plug and play |
Connector Gender | Male-to-Male |
Data Transfer Rate | 10 Gigabytes Per Second |
Shape | Round |
Unit Count | 1.0 Count |
Connectivity Technology | Active Optical Fiber Cable |
Specification Met | Ieee802.3 |
Indoor/Outdoor Usage | Outdoor, Indoor |
Package Type | Standard Packaging |
Item Weight | 0.16 ounces |
Package Dimensions | 0.01 x 0.01 x 0.01 inches |
Part No. | Data Rate | Protective sleeve material | Distance | Connector Type |
YXF-10G-A1 | 10G | PVC | 1m | SFP+ To SFP+ |
YXF-10G-A5 | PVC | 5m | ||
YXF-10G~A10 | PVC | 10m | ||
YXF-10G-A20 | PVC | 20m | ||
YXF-25G~A1 | 25G | PVC | 1m | SFP28 To SFP28 |
YXF~25G~A5 | PVC | 5m | ||
YXF~ 25G~A10 | PVC | 10m | ||
YXF~25G-A20 | PVC | 20m | ||
YXF~40G~A1 | 40G | PVC | 1m | QSFP+ To QSFP+ |
YXF~40G~A5 | PVC | 5m | ||
YXF~40G~A10 | PVC | 10m | ||
YXF~-40G~A20 | PVC | 20m | ||
YXF~100G~A1 | 100G | PVC | 1m | QSFP28 To QSFP28 |
YXF~100G-A5 | PVC | 5m | ||
YXF-100G~A10 | PVC | 10m | ||
YXF~100G-A20 | PVC | 20m |
Infiniband AOC | ||||
Part No. | Data Rate | Protective sleeve material | Distance | Connector Type |
YXF-200G-A1 | 200g | PVC | 1m | qsfp56 to qsfp56 |
YXF-200G-A2 | PVC | 2m | ||
YXF-200G-A3 | PVC | 3m | ||
YXF-200G-A5 | PVC | 5m | ||
YXF-200G-A10 | PVC | 10m | ||
YXF-200G-A15 | PVC | 15m |
