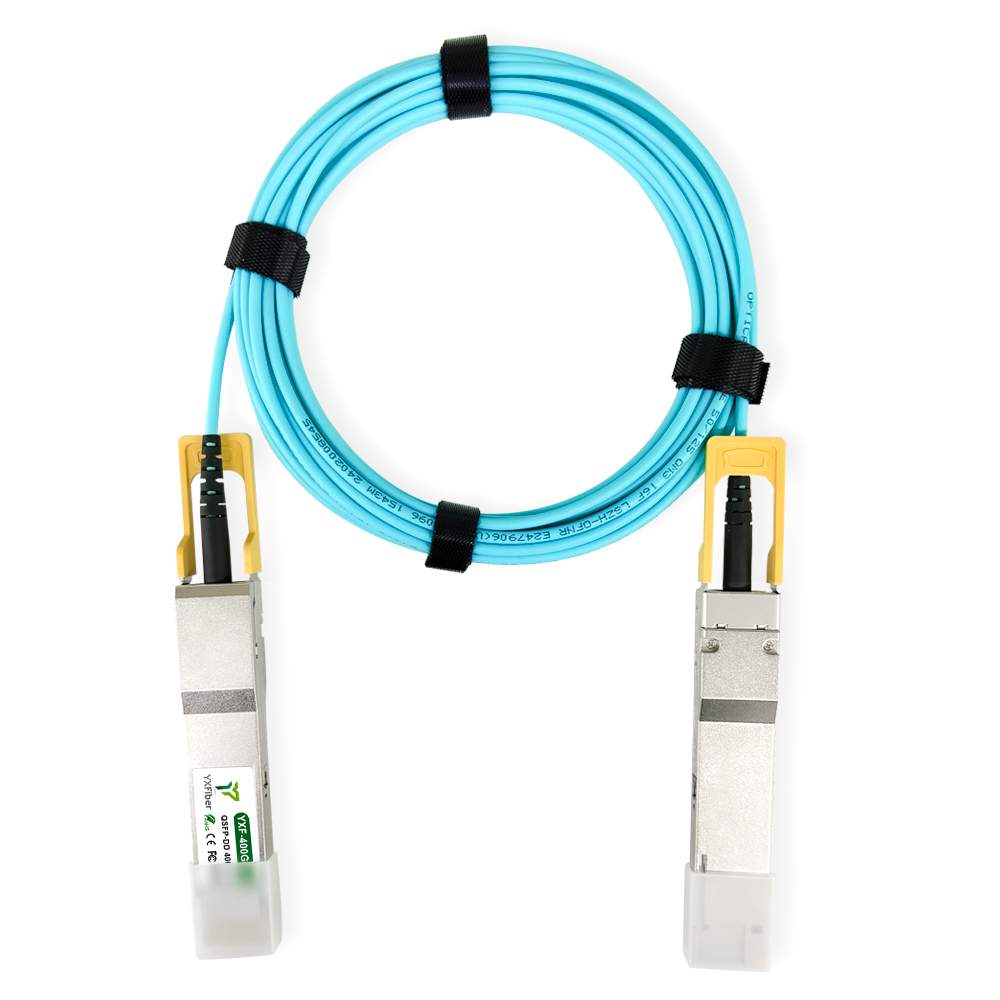

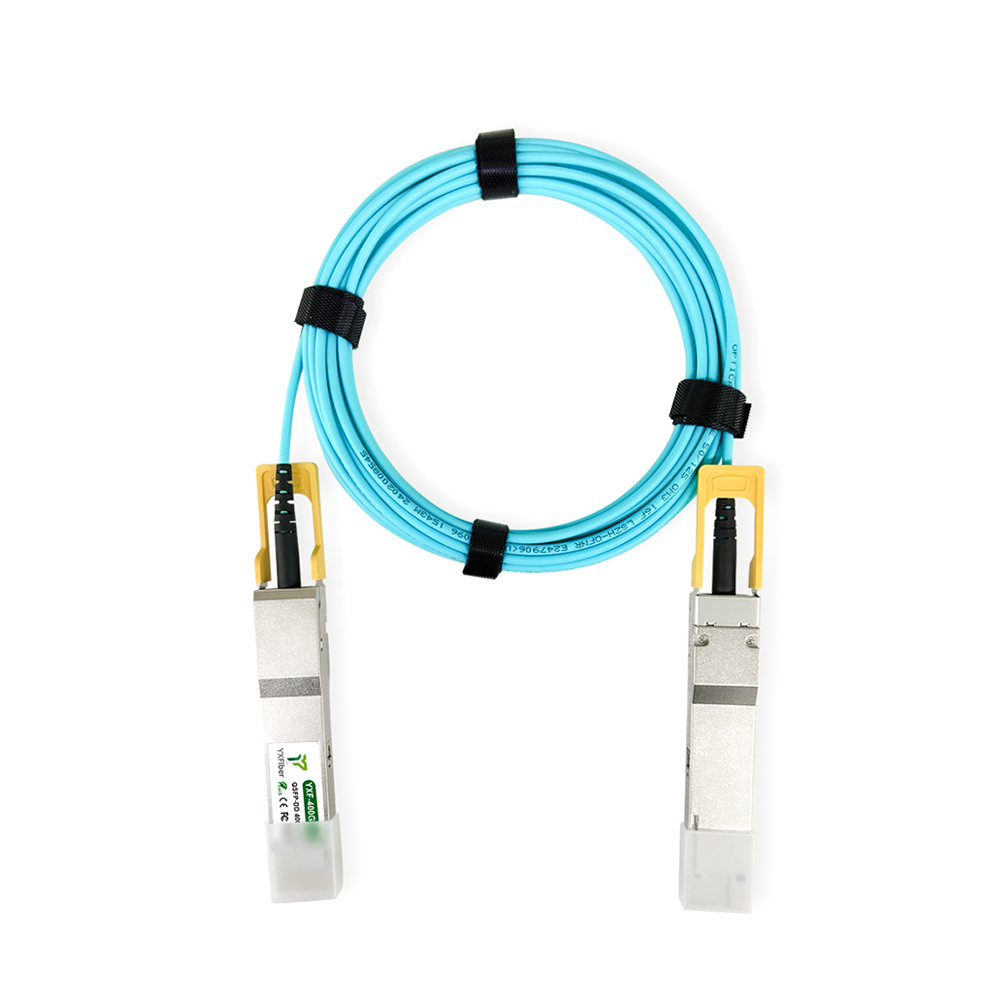

400G QSFP-DD AOC Cable Active Optical Fiber Cable OM3 MMF Compatible with Cisco Juniper Dell Arista Mellanox Customized

Features：
  • Minimum Bend Radius 30mm.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP-DD MSA Standard.
  • Compliant with RoHS Environmental Standard (Lead-free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 3-Year Warranty, Lifetime After-sales Technical Support.
Size:
1M（3.28ft）
3M（9.4ft）
5M（16.4ft）
10M（32.8ft）
15M（49.2ft）
20M（65.6ft）
Availability:
Quantity:
Inquire

  • YXF-400G-AOC-5M

  • YXFiber

  • QSFP-DD

  • 400G

  • AOC

Product Description

Brand‎YXFiber
Form FactorQSFP-DD
Cable Length‎1m~20m
Commercial Temperature Range‎0 to 70°C (32 to 158°F)
Wavelength850nm
Jacket Material‎LSZH
Power Consumption≤10W
Minimum Bend Radius30mm
Application‎400G Ethernet Compliant


Questions & Answers

Q: How far can the OSFP-QDD-AOC transmit?

A: This cable can transmit up to 30m.

Q:What are the advantages of the OSFP-QDD-AOC?

A: This cable solves the interconnection issue between QSFP-DD switches and OSFP network cards,and compared to modules, it areatly reduces the interconnection cost.

Q: What are the common applications of QSFP-DD 400G AOC?

A:The 400G AOC cable is suitable for high-speed network transmission, data centers, cloud computing, and large-scale network device connections. It provides a high-speed, low-latency, reliable, and compatible data transmission solution.

Q:Is FEC required when using the QSFP-DD 400G AOC?
A:Yes, FEC functionality needs to be enabled because as the product rate increases, the bit error rate also increases.

Q:Has this 400G AOC cable undergone rigorous product testing?

A:We adhere to the strictest quality standards and management processes, from material selection, manufacturing process determination, and production process control, to final product testing. Additionally, we conduct extensive aging and durability tests to ensure product stability and reliability.

Product Manual

download YXF-400G-AOC-5M.pdf
